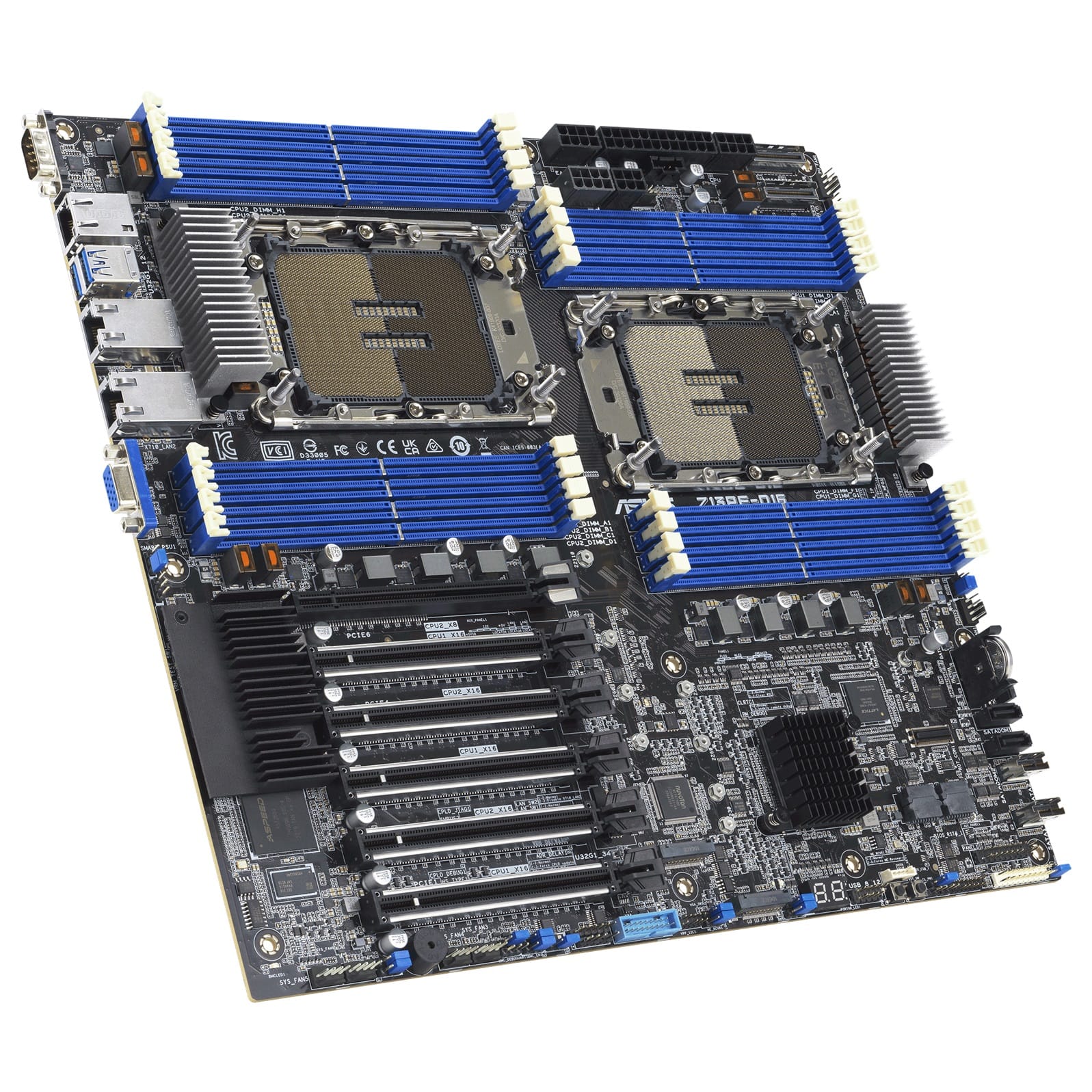

Asus Z13PE-D16 C741 Server ATX Motherboard

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.	LGA 4677 (Socket E)
Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'.	Intel® Xeon®

Memory
Supported memory types Types of memory which can be used with the product.	DDR5-SDRAM
Number of memory slots	16
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	DIMM
Memory channels	Octa-channel
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.	4800,5600 MHz
Maximum internal memory The maximum internal memory which is available in the product.	2 TB
Supported memory module capacities	16GB, 32GB, 64GB, 128GB

Storage controllers
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported The total number of hard drives that can be used in/with this product.	10

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Graphics card family	ASPEED
Graphics card	AST2600

Internal I/O
USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black.	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0.	1
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.	10
ATX Power connector (24-pin)
EPS power connector (8-pin)
TPM connector

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.	1

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controller	Intel X710-AT2

Features
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel C741
Component for What this product is used as a part of (component for).	Server
Motherboard form factor Design of the motherboard (ATX, BTX etc).	Extended ATX
Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD.	Intel

Expansion slots
PCI Express x16 (Gen 5.x) slots	5
Number of M.2 (M) slots	2

Operational conditions
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	10 - 35 °C
Storage relative humidity (H-H)	20 - 90%

Packaging data
Package weight Weight of the packaged product.	2.75 kg

Weight & dimensions
Width The measurement or extent of something from side to side.	304.8 mm
Depth The distance from the front to the back of something.	330.2 mm

Other features
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.75 kg
