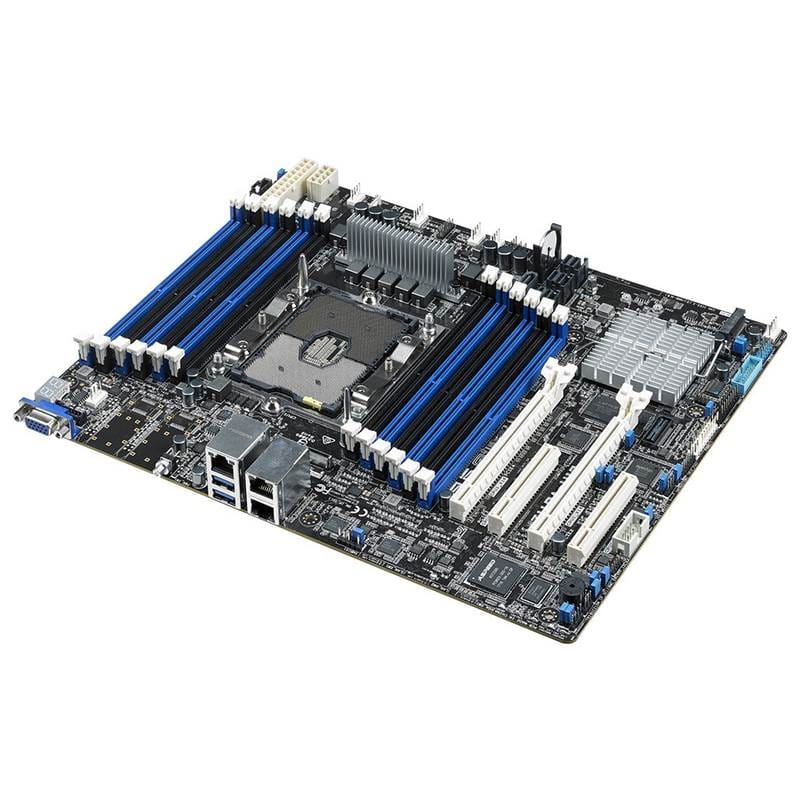

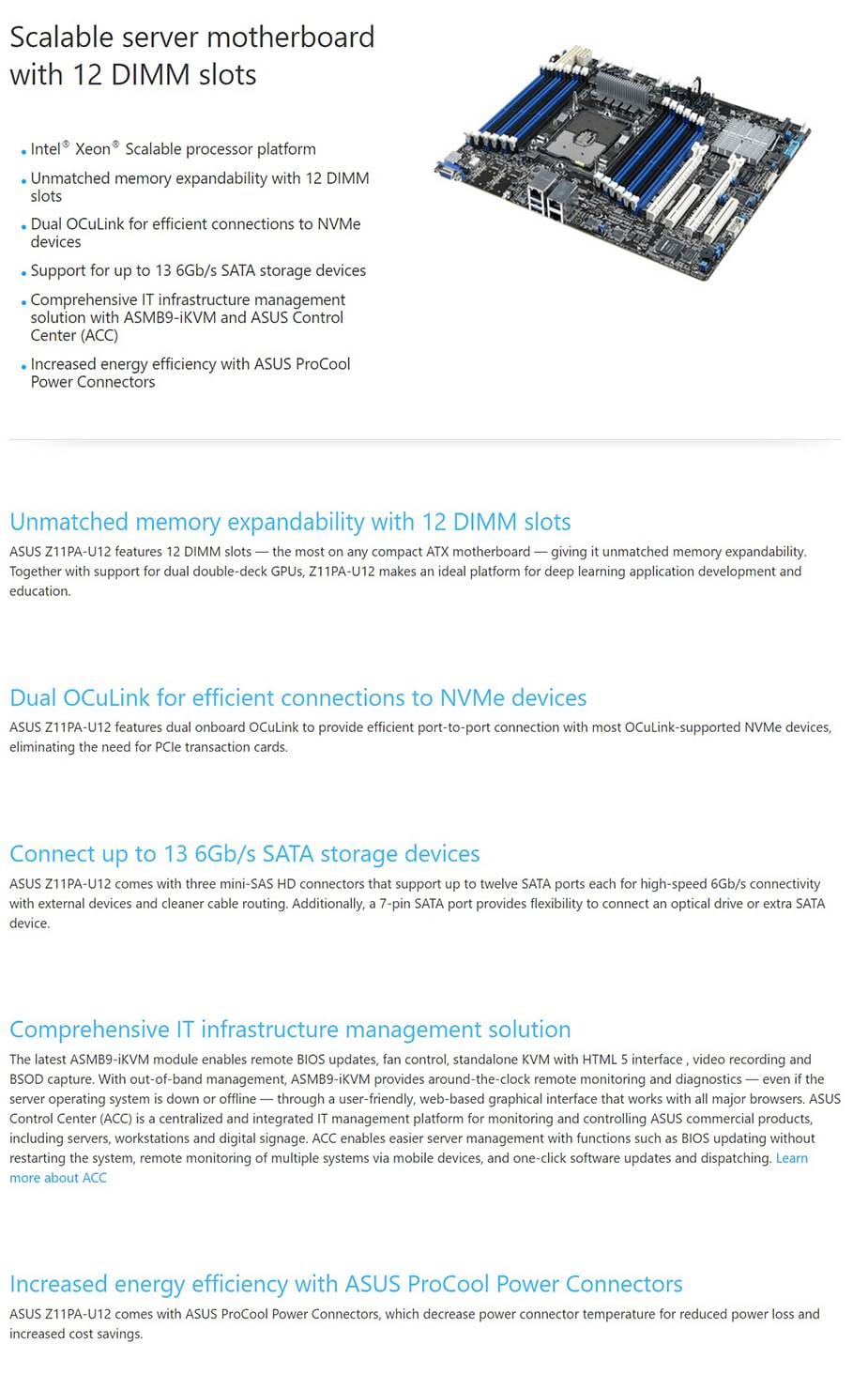

Z11PA-U12 is built on the latest 2nd Gen Intel Xeon Scalable processors to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.33X faster average system-level performance compared to previous-generation processors.

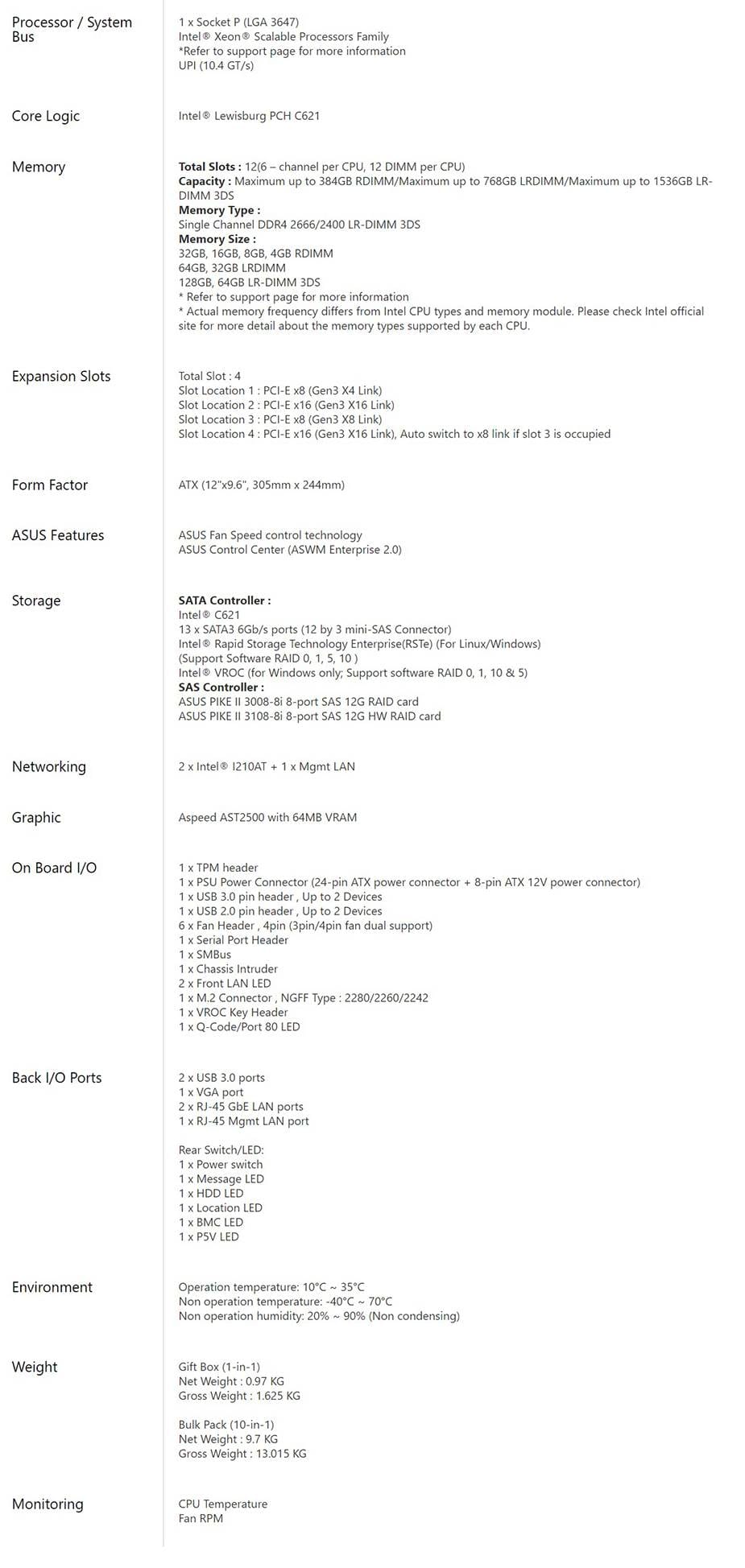

| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Number of processors supported The quantity of processors which can be used by the product. | 1 |
| System bus rate A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system. | 10.4 GT/s |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 2400,2666 MHz |
| Number of DIMM slots The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share. | 12 |
| Maximum internal memory The maximum internal memory which is available in the product. | 1536 GB |
| Supported DIMM module capacities | 4GB,8GB,16GB,32GB,64GB |
| Memory channels | Hexa-channel |
| Supported RDIMM module capacity | 4GB,8GB,16GB,32GB |
| Supported LRDIMM module capacity | 32GB,64GB |
| Supported RDIMM clock speeds | 2400,2666 MHz |
| Supported LRDIMM clock speeds | 2400,2666 MHz |
| Maximum RDIMM memory | 384 GB |
| Maximum UDIMM memory | 768 GB |
| Storage controllers | |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | Serial ATA III,Serial Attached SCSI (SAS) |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,10 |
| Graphics | |
| On-board graphics adapter model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Aspeed AST2500 |
| On-board graphics adapter memory | 64 MB |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| Discrete graphics support |
|
| Internal I/O | |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 13 |
| ATX Power connector (24-pin) |
|
| EPS power connector (8-pin) |
|
| Serial port headers | 1 |
| TPM connector |
|
| Power fan connector |
|
| Integrated SAS ports | 2 |
| Rear panel I/O ports | |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| LAN controller | Intel® I210-AT |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Features | |
| Component for What this product is used as a part of (component for). | Server |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel® C621 |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | ATX |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots Slots in the computer for PCI Express x8 (Gen 3.x), which is a high-speed serial computer expansion bus standard with 8 pins. | 2 |
| PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard. | 2 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 305 mm |
| Other features | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 970 g |
| Package weight Weight of the packaged product. | 1.62 kg |
| SKU | 358407 |
| MPN | Z11PA-U12 |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Motherboard Chipset | Intel C621 |
| CPU Socket | LGA 3647 |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.asus.com/ |
