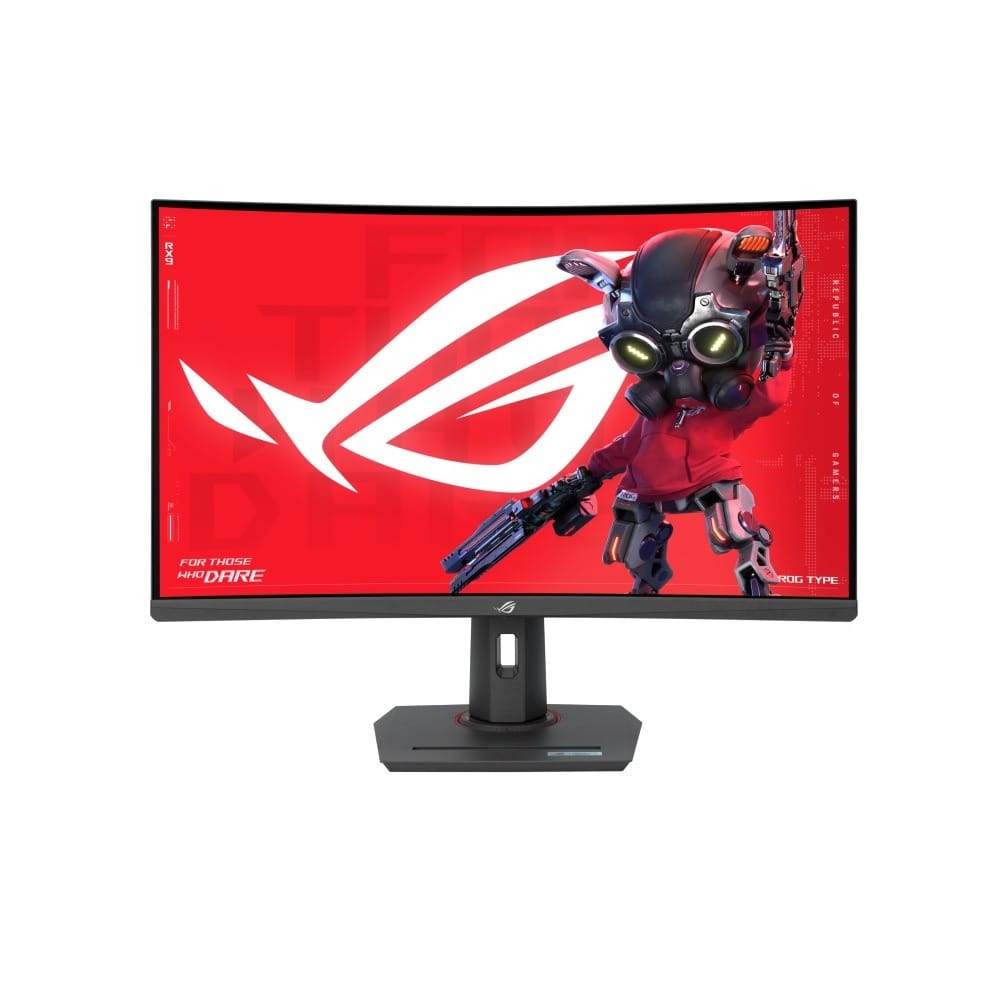

ROG Strix XG32WCS USB Type-C Gaming Monitor – 32-inch (31.5 viewable) 2560x1440, Curved, 180Hz (Above 144Hz), 1ms (GTG), Fast VA, Extreme Low Motion Blur Sync, USB Type-C, FreeSync, DisplayWidget Center, tripod socket, HDR.
Display
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
80 cm (31.5")
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
2560 x 1440 pixels
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
Quad HD
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:9
Display technology
The technology used in the display e.g. plasma, LED.
LED
Panel type
Fast VA
Touchscreen
A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Display brightness (peak)
400 cd/m²
Display brightness (typical)
Display brightness, measured by its Luminance, presented as a figure in candela per square meter (cd/m2). Typical brightness ratings for monitors range from 250 to 350 cd/m2 with a target value of between 80 to 120 cd/m2 being suitable for most displays in a normal viewing environment.
350 cd/m²
Response time
The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
1 ms
Anti-glare screen
Always gives an optimal view, even in direct sunlight.
Screen shape
Curved
Screen curvature rating
1500R
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
3500:1
Contrast ratio (dynamic)
A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.
100000000:1
Maximum refresh rate
180 Hz
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
178°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
178°
Display number of colours
1.073 billion colours
Pixel pitch
This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.
0.272 x 0.272 mm
Viewable size, horizontal
The viewable size is often somewhat smaller than the actual size of a monitor, because there is a border around the image.
69.7 cm
Viewable size, vertical
39.2 cm
Digital horizontal frequency
415 - 415 kHz
Digital vertical frequency
48 - 180 Hz
High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)
Colour depth
10 bit
Colour gamut standard
DCI-P3
Colour gamut
90%
Performance
NVIDIA G-SYNC
AMD FreeSync
The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing.
AMD FreeSync type
FreeSync
VESA Adaptive Sync support
Flicker-free technology
Low Blue Light technology
Shadow сontrol
Game mode
Multimedia
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Built-in camera
The product has an integrated camera.
Design
Market positioning
Under which category can the device be positioned in the market, e.g. camera phone.
Gaming
Product colour
The colour e.g. red, blue, green, black, white.
Black
Detachable stand
Certification
TÜV Flicker-free
TÜV Low Blue Light
VESA AdaptiveSync Display 180Hz
VESA DisplayHDR 400
Ports & interfaces
Built-in USB hub
Whether or not the device features a USB hub to connect more than one other device via USB.
USB Type-C downstream ports quantity
1
USB Type-C DisplayPort Alternate Mode
USB Power Delivery
USB Power Delivery up to
7.5 W
HDMI
HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
HDMI version
2.0
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
DisplayPort version
1.4
Headphone out
The socket for connecting headphones to the device.
Headphone outputs
Number of sockets /ports where headphones are connected.
1
Headphone connectivity
How headphones connect to a device e.g. wirelessly or via a cable and connector.
3.5 mm
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
AC (power) in
Ergonomics
VESA mounting
Panel mounting interface
The product can be used wih VESA mounting interfaces.
100 x 100 mm
Wall mountable
The product can be mounted on (attached to ) a wall.
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
Height adjustment
11 cm
Swivelling
Swivel angle range
-25 - 25°
Tilt adjustment
The tilt, which means the angle at which the device is pointing (up or down), can be changed.
Tilt angle range
-5 - 20°
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
30 kWh
Energy consumption (HDR) per 1000 hours
65 kWh
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
130 W
Power consumption (off)
0.3 W
Power consumption (PowerSave)
0.5 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
The type of power supply which this product uses.
Internal
Energy efficiency scale
A to G
Packaging content
Stand included
Weight & dimensions
Width (with stand)
708 mm
Depth (with stand)
246 mm
Height (with stand)
573 mm
Weight (with stand)
9.4 kg
Width (without stand)
708 mm
Depth (without stand)
108 mm
Height (without stand)
425 mm
Weight (without stand)
6.1 kg
Packaging data
Package width
The distance from one side of the packaging to the other.
920 mm
Package depth
The distance from the front to the back of the packaging.
235 mm
Package height
The distance from the top to the bottom of the packaging.
562 mm
Package weight
Weight of the packaged product.
12.2 kg
Package type
The type of product package e.g. box.
