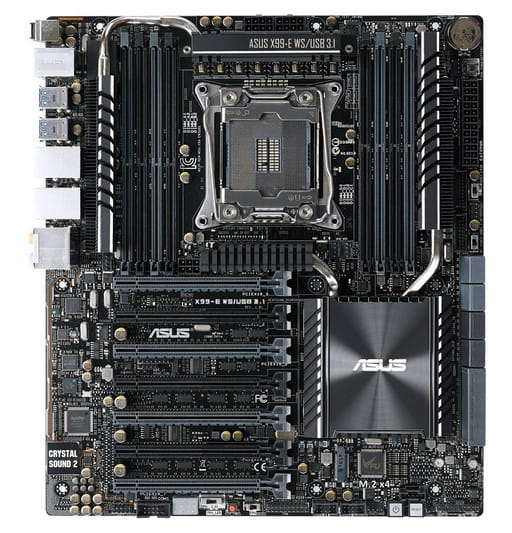

Asus X99-E WS/USB 3.1 ATX Motherboard

Item No:
219863
MPN:
X99-E WS/USB 3.1
$865.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown
  • Unavailable at Blacktown
  • Unavailable at Castle Hill
Socket 2011-3, 8xDDR4, M.2, 8x Sata3, 2x USB3.1


Processor
Processor manufacturer The manufacturer that produced the processor. Intel
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. LGA 2011-v3
Intel Xeon series E5-1600,E5-2600
Number of processors supported The quantity of processors which can be used by the product. 1
Lithography 22 nm
Memory
Supported memory types Types of memory which can be used with the product. DDR4-SDRAM
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. 2133,2400,2666,2800,3000,3200 MHz
Number of DIMM slots The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share. 8
Maximum internal memory The maximum internal memory which is available in the product. 128 GB
Memory channels Quad-channel
Non-ECC
Storage controllers
HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. Serial ATA
Graphics
Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. 4-Way CrossFireX,4-Way SLI
Discrete graphics support
Internal I/O
USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. 2
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. 8
EPS power connector (8-pin)
Chassis intrusion connector
TPM connector
Clear CMOS button
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2, 10
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 2
IPMI LAN (RJ-45) port
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected. 1
eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. 2
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Features
Component for What this product is used as a part of (component for). Server
Motherboard form factor Design of the motherboard (ATX, BTX etc). SSI CEB
BIOS
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. UEFI AMI
BIOS memory size 128 Mbit
ACPI version 5.0
Weight & dimensions
Width The measurement or extent of something from side to side. 305 mm
Depth The distance from the front to the back of something. 267 mm
Other features
PCI Express x16 (Gen 1.x) slots 7
More Information
SKU 219863
MPN X99-E WS/USB 3.1
Brand Asus
Product Condition Brand New/Unused
Case/MB Form Factor ATX
Motherboard Chipset Intel X99
CPU Socket LGA 2011-3
Warranty Period 1 Year Warranty
Warranty Contact https://www.asus.com/
