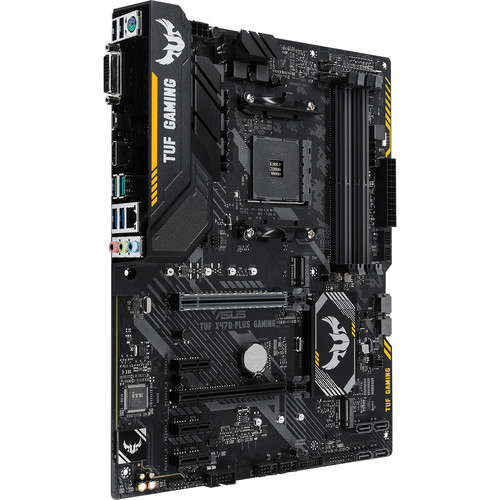

ASUS TUF-X470-PLUS-GAMING AM4 Motherboard

Item No:
316848
MPN:
TUF-X470-PLUS-GAMING
$219.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown
  • Unavailable at Blacktown
  • Unavailable at Castle Hill

Processor
Processor manufacturer The manufacturer that produced the processor. AMD
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. Socket AM4
Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Maximum number of SMP processors 1
Memory
Supported memory types Types of memory which can be used with the product. DDR4-SDRAM
Number of memory slots 4
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. DIMM
Memory channels Dual-channel
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. 2133,2400,2666,2800,3000,3200 MHz
Maximum internal memory The maximum internal memory which is available in the product. 64 GB
Unbuffered memory
Storage controllers
Supported storage drive interfaces M.2,SATA III
Graphics
Discrete graphics support
Internal I/O
USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. 2
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. 6
Front panel audio connector
Front panel connector
ATX Power connector (24-pin)
Number of EATX power connectors 1
CPU fan connector
Number of chassis fan connectors 3
Chassis intrusion connector
EPS power connector (8-pin)
Number of COM connectors 1
Serial port headers 1
Rear panel I/O ports
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1
PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. 1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. 1
DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. 1
Microphone in The socket where a microphone is connected to the device.
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
LAN controller Realtek RTL8111H
Features
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. AMD X470
Audio chip Realtek ALC887
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. 7.1 channels
PC health monitoring CPU, Fan, Temperature, Voltage
Component for What this product is used as a part of (component for). PC
Motherboard form factor Design of the motherboard (ATX, BTX etc). ATX
Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. AMD
Power source type What the power source is. ATX
Windows operating systems supported Windows vesions wich can be used with the device. Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64
Expansion slots
PCI Express x1 (Gen 2.x) slots 3
PCI Express x16 (Gen 2.x) slots Places where PCI Express x16 (Gen 2.x) are placed inside and connected to the computer motherboard. 1
PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard. 1
Number of M.2 (M) slots 2
BIOS
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. UEFI AMI
BIOS memory size 32 Mbit
ACPI version 6.0
Clear CMOS jumper
System Management BIOS (SMBIOS) version 3.0
Weight & dimensions
Width The measurement or extent of something from side to side. 305 mm
Depth The distance from the front to the back of something. 244 mm
Packaging content
Cables included SATA
Manual
Drivers included
More Information
SKU 316848
MPN TUF-X470-PLUS-GAMING
Brand Asus
Product Condition Brand New/Unused
Motherboard Chipset AMD X470
CPU Socket AM4
Stock Availability In Stock at Castle Hill
Product Use Gaming
