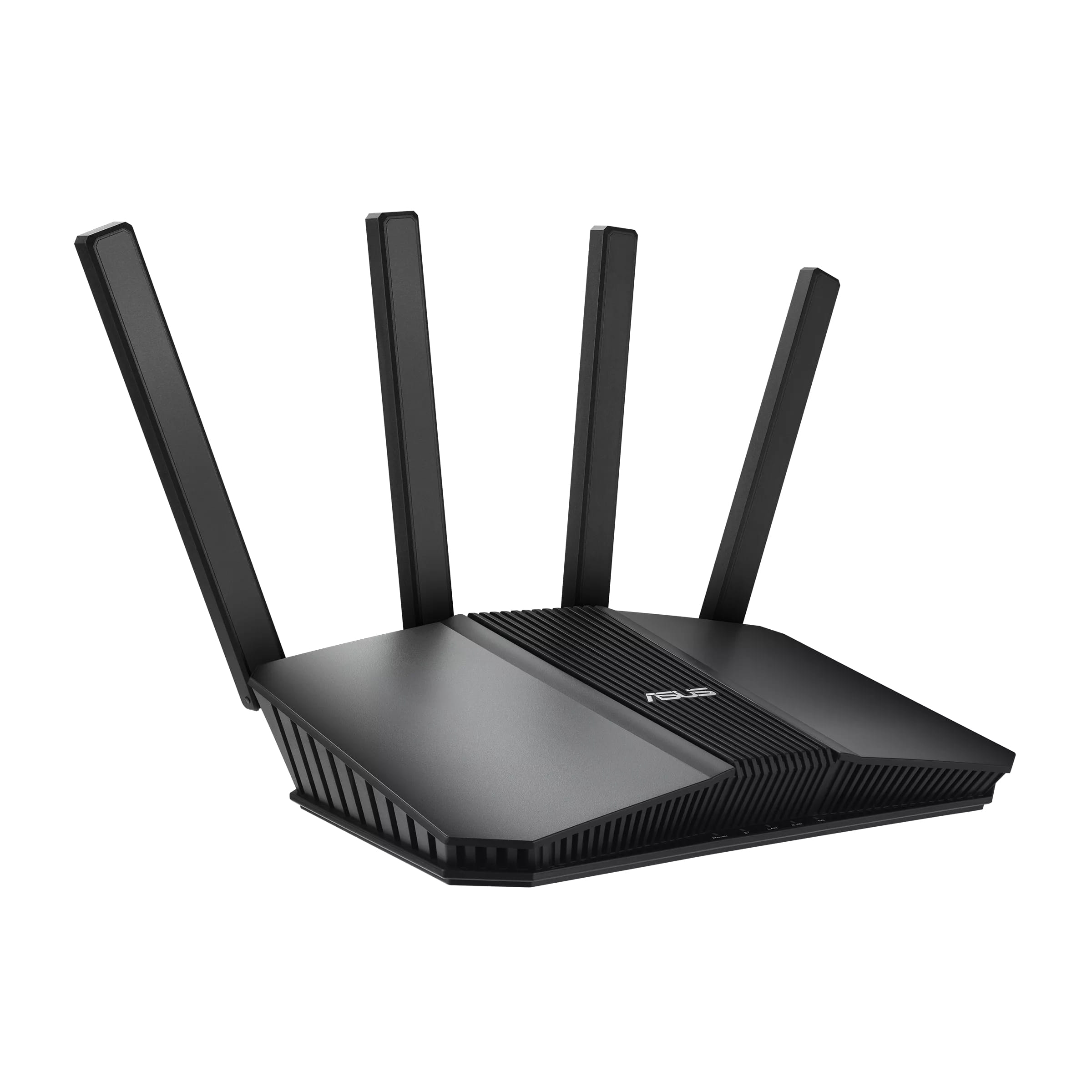

Asus TUF Gaming BE3600 WiFi 7 AiMesh Extendable Router

WAN connection
Ethernet WAN
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	3600 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
WLAN data transfer rate (first band)	688 Mbit/s
WLAN data transfer rate (second band)	2882 Mbit/s
Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.	4096-QAM, OFDMA

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	2.5 Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	1000,2500 Mbit/s
Port forwarding
Port triggering
Dynamic DNS (DDNS)
Support Samba (storage)
Built-in FTP server
Media server

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1

Management features
Bandwidth control
Quality of Service (QoS) support
Wake-on-LAN ready
Reset button
WPS push button
MU-MIMO technology

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SSH, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA, WPA3-Personal, WPS, WPA-Enterprise, WPA-Personal
Firewall
Parental control
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
System event log
DMZ support
Network address translation (NAT)

Protocols

DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators	Power, LAN, WAN
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Tabletop router

Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Warranty card
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Antenna
Antenna design	External
Antennas quantity	4

Features
Built-in processor Whether or not a processor is built into the device.
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	2000 MHz
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	1000 MB
Flash memory	256 MB

Power
Power source type What the power source is.	AC
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	2 A

Weight & dimensions
Width The measurement or extent of something from side to side.	238 mm
Depth The distance from the front to the back of something.	193 mm
Height The measurement of the product from head to foot or from base to top.	59 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	461 g
