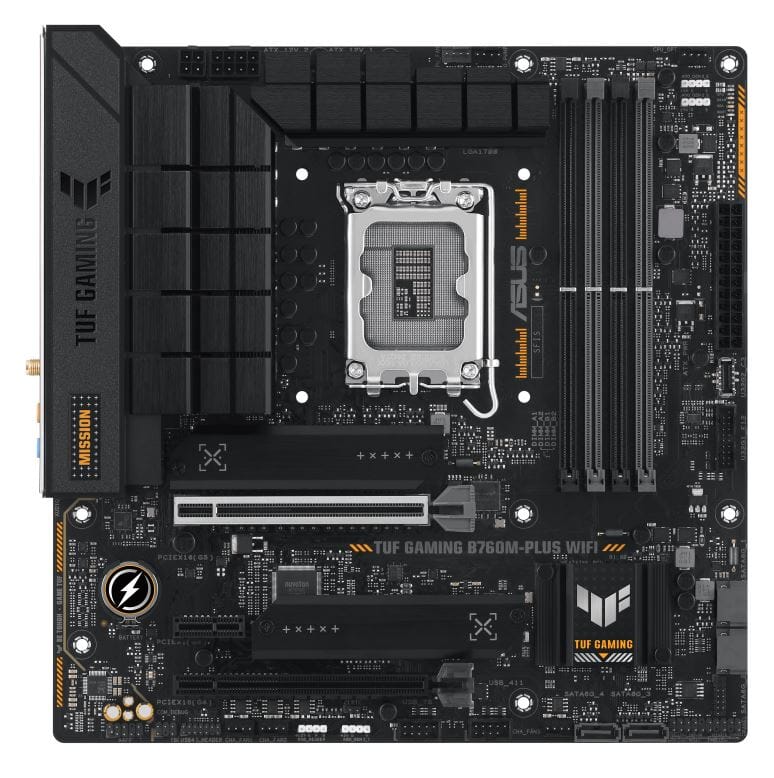

Asus TUF GAMING B760M PLUS WIFI LGA 1700 Micro-ATX Motherboard

Item No:
725780
MPN:
TUF GAMING B760M-PLUS WIFI
$399.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
ASUS TUF GAMING B760M PLUS WIFI Intel LGA1700 mATX Motherboard 128GB, 4xDDR5,1 x PCIe 5.0 x16 slot,2 x M.2 slots,4 x SATA,Wi Fi 6, 1xDP, 1x HDMI,
TUF GAMING B760M PLUS WIFI
TUF GAMING B760M PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game ready features and proven durability. Engineered with military grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

TUF GAMING B760M PLUS WIFI
CPU
Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core , Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B760 Chipset
Memory
4 x DIMM slots, Max. 128GB, DDR5 7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non ECC, Un buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non ECC, un buffered DDR5 memory supports On Die ECC function.
Processor
Processor manufacturer The manufacturer that produced the processor. Intel
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. LGA 1700
Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Maximum number of SMP processors 1
Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. LGA 1700
Memory
Supported memory types Types of memory which can be used with the product. DDR5-SDRAM
Number of memory slots 4
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. DIMM
Memory channels Dual-channel
Non-ECC
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory clock speed (max) 7200 MHz
Maximum internal memory The maximum internal memory which is available in the product. 128 GB
Unbuffered memory
Storage controllers
Supported storage drive types The type of storage drives the device is compatible with. HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of HDDs supported The total number of hard drives that can be used in/with this product. 4
Number of storage drives supported How many storage drives can be fit into the product at once. 6
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. 0, 1, 5, 10
Graphics
Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. Not supported
Internal I/O
USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. 4
Front panel audio connector
ATX Power connector (24-pin)
CPU fan connector
Number of chassis fan connectors 3
Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. 1
EPS power connector (8-pin)
Thunderbolt headers 1
12V power connector
RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
USB 3.2 Gen 2x2 Type-C ports quantity 1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. 1
HDMI version 2.1
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. 1
DisplayPort version 1.4
Headphone outputs Number of sockets /ports where headphones are connected. 1
Line-in
Microphone in The socket where a microphone is connected to the device.
S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. Wi-Fi 6 (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). 5.2
Features
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. Intel B760
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. 7.1 channels
Component for What this product is used as a part of (component for). PC
Motherboard form factor Design of the motherboard (ATX, BTX etc). micro ATX
Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. Intel
Windows operating systems supported Windows vesions wich can be used with the device. Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 3
BIOS
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. UEFI AMI
BIOS memory size 128 Mbit
Packaging data
Package width The distance from one side of the packaging to the other. 275 mm
Package depth The distance from the front to the back of the packaging. 275 mm
Package height The distance from the top to the bottom of the packaging. 67.5 mm
Package weight Weight of the packaged product. 1.65 kg
Weight & dimensions
Width The measurement or extent of something from side to side. 244 mm
Depth The distance from the front to the back of something. 244 mm
More Information
SKU 725780
MPN TUF GAMING B760M-PLUS WIFI
Brand Asus
Product Condition Brand New/Unused
Case/MB Form Factor Micro-ATX
Motherboard Chipset Intel B760
CPU Socket LGA 1700
Memory Type DDR5
Memory Form Factor DIMM
Stock Availability Available for Shipping, In Stock at Castle Hill
Product Use Gaming
Warranty Period 3 Years Warranty
