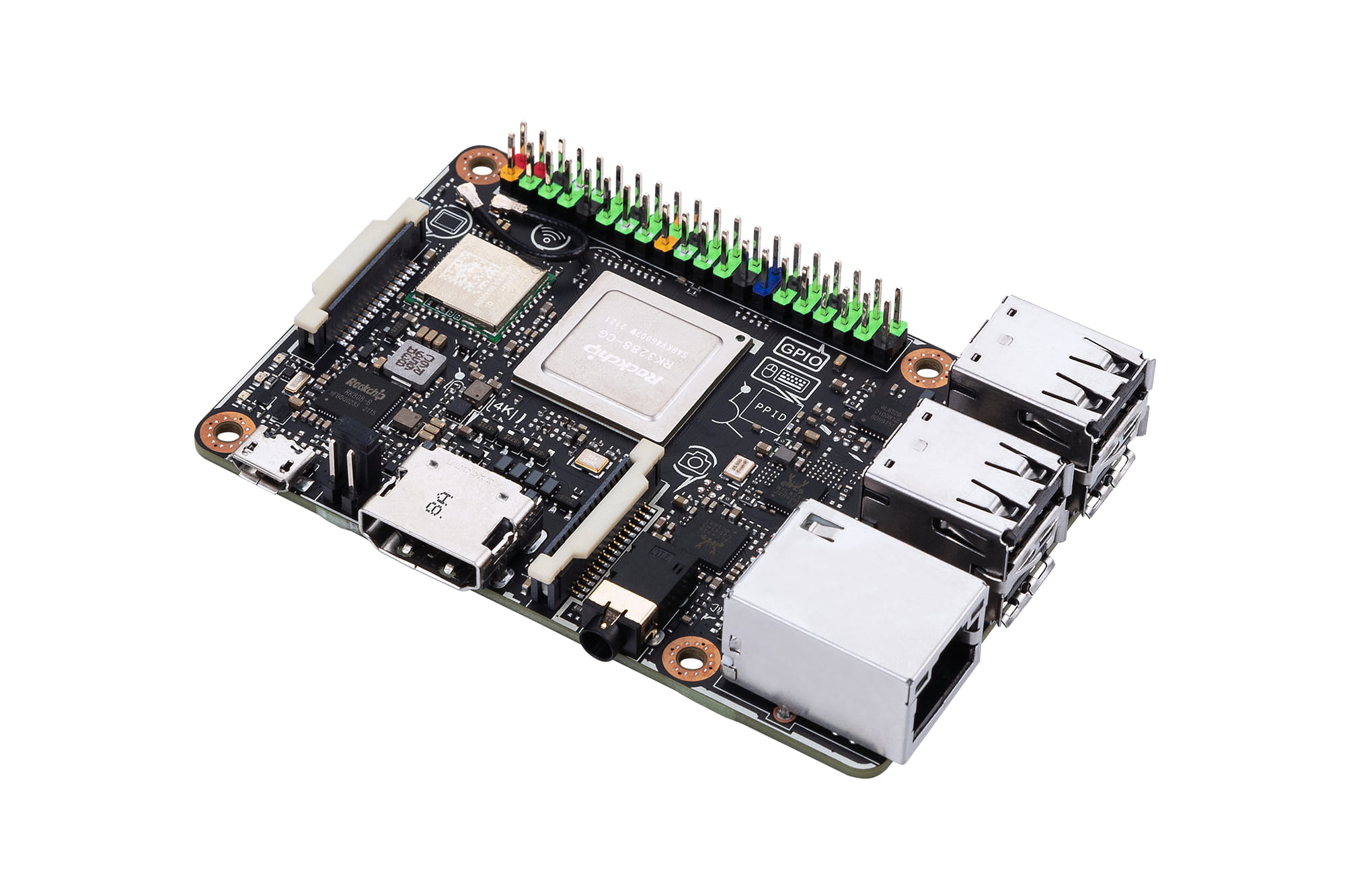

ASUS Tinker Board R2.0, Rockchip, Rockchip RK3288, 2 GB, DDR3 SDRAM, Dual channel, MicroSD (TransFlash)
ARM based SBC with enhanced and better compatibility
The new and improved Tinker Board R2.0 is a single board computer (SBC) that offers greater durability, better stability and an overall improved user experience for DIY enthusiasts and makers everywhere.
CLASS LEADING PERFORMANCE
With its powerful and modern quad core ARM based processor - the Rockchip RK3288 CG.W - Tinker Board R2.0 series offers significantly improved performance versus other popular SBC boards. Powered by an ARM based Mali T764 GPU, Tinker Board R2.0's GPU and fixed function processors allow for a wide range of uses, including high quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.
* HD & UHD video playback at 30 fps on Tinker Board R2.0 is currently only available via the included media player. Third party video players and applications may not offer hardware acceleration, which will result in limited or unstable playback performance.
HD AUDIO QUALITY
Tinker Board R2.0 series is equipped with an HD codec that supports up to 24 bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module.
The audio jack also offers hassle free plug in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.
STANDARD INTERFACE FOR IOT CONNECTIVITY
Tinker Board R2.0 series features standard maker connectivity options, including a 40 pin GPIO interface that allow for interfacing with a range inputs. Tinker Board R2.0 series is equipped with one DSI MIPI connection for displays and touchscreens. The secondary CSI MIPI connection is for connection to compatible cameras allowing for computer vision, and much more.
Tinker Board R2.0 series also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.
Tinker Board R2.0 series also features a full size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.
A VARIETY OF ACCESSORIES AVAILABLE
The PCB dimensions and topology of the Tinker Board R2.0 series aligns with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color coded pull tabs.
Tinker Board R2.0 series also includes a heatsink, which provides better thermal solution under heavy loading or in hot ambient environments. Additionally, an optional metallic case is also available for market ready solution. With hassle free installation, the aluminum case helps dissipate heat in fanless design, ensuring Tinker Board has a top notch performance.
Creating new possibilities and advantages, Tinker Board R2.0 series supports MIPI Convert Board and PoE Splitter Board to enhance convenience and functionality in different scenarios.
The new and improved Tinker Board R2.0 is a single board computer (SBC) that offers greater durability, better stability and an overall improved user experience for DIY enthusiasts and makers everywhere.
CLASS LEADING PERFORMANCE
With its powerful and modern quad core ARM based processor - the Rockchip RK3288 CG.W - Tinker Board R2.0 series offers significantly improved performance versus other popular SBC boards. Powered by an ARM based Mali T764 GPU, Tinker Board R2.0's GPU and fixed function processors allow for a wide range of uses, including high quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.
* HD & UHD video playback at 30 fps on Tinker Board R2.0 is currently only available via the included media player. Third party video players and applications may not offer hardware acceleration, which will result in limited or unstable playback performance.
HD AUDIO QUALITY
Tinker Board R2.0 series is equipped with an HD codec that supports up to 24 bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module.
The audio jack also offers hassle free plug in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.
STANDARD INTERFACE FOR IOT CONNECTIVITY
Tinker Board R2.0 series features standard maker connectivity options, including a 40 pin GPIO interface that allow for interfacing with a range inputs. Tinker Board R2.0 series is equipped with one DSI MIPI connection for displays and touchscreens. The secondary CSI MIPI connection is for connection to compatible cameras allowing for computer vision, and much more.
Tinker Board R2.0 series also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.
Tinker Board R2.0 series also features a full size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.
A VARIETY OF ACCESSORIES AVAILABLE
The PCB dimensions and topology of the Tinker Board R2.0 series aligns with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color coded pull tabs.
Tinker Board R2.0 series also includes a heatsink, which provides better thermal solution under heavy loading or in hot ambient environments. Additionally, an optional metallic case is also available for market ready solution. With hassle free installation, the aluminum case helps dissipate heat in fanless design, ensuring Tinker Board has a top notch performance.
Creating new possibilities and advantages, Tinker Board R2.0 series supports MIPI Convert Board and PoE Splitter Board to enhance convenience and functionality in different scenarios.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Rockchip |
| Processor model The model number for the processor in a computer. | Rockchip RK3288 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Memory | |
| Maximum internal memory The maximum internal memory which is available in the product. | 2 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR3-SDRAM |
| Memory channels | Dual-channel |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Ports & interfaces | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| USB ports quantity | 4 |
| Audio port type | 3.5mm |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.2+EDR |
| S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| UART |
|
| GPIO interface |
|
| I2C interface |
|
| MPI DSI interface |
|
| MPI CSI interface |
|
| Integrated LAN |
|
| SPI interface |
|
| I2S interface |
|
| PCM interface |
|
| Features | |
| MultiVolt I/Os | 3.3,5 V |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 85.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 55 g |
| Width The measurement or extent of something from side to side. | 54 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| SKU | 708239 |
| MPN | TINKER-BOARD-S-R2.0-A-2G-16G |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| CPU Socket | Soldered-down BGA |
| Memory Type | DDR3 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.asus.com/ |
