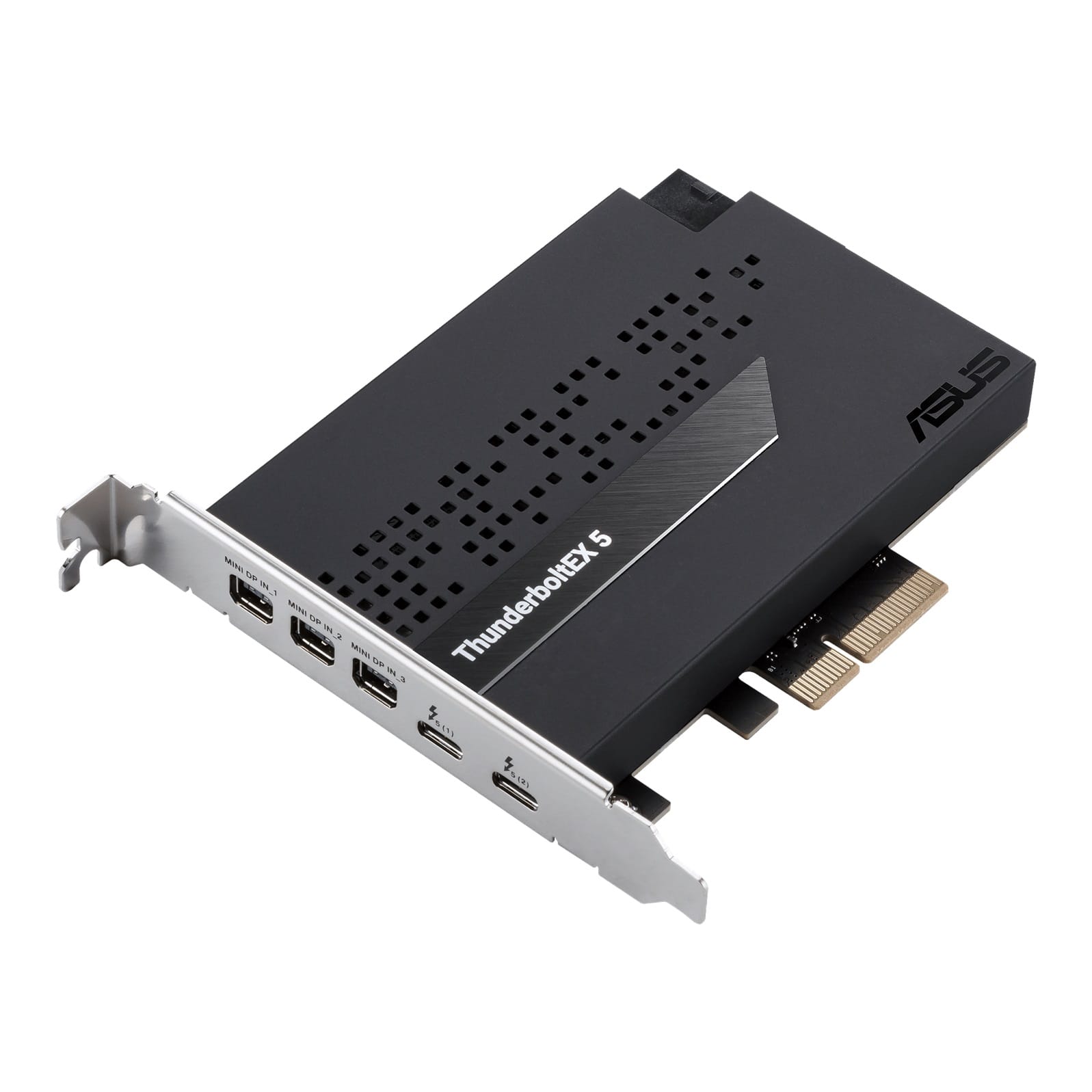

Asus ThunderboltEX5 Thunderbolt 5 USB-C Add-on Card
Item No:
825713
MPN:
THUNDERBOLTEX 5
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Intel certified Thunderbolt 5 add-on card; Dual USB Type-C ports support up to 130 watts total of fast charging, and up to 96W for one device; Up to five Thunderbolt devices can be daisy-chained; Up to 120 Gbps of bandwidth for superfast data transfers and video output; DisplayPort 2.1 port supports up to three 8K 60 Hz displays with DSC
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Output interface The socket (port) where the output connectors are connected. | Mini DisplayPort, PCIe, USB 2.0, Thunderbolt 5 |
| Expansion card standard | PCIe 4.0 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Multicolour |
| Purpose What the product is used for. | PC |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Intel JHL9580 Thunderbolt 5 Controller |
| Data transfer rate (max) | 120 Gbit/s |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 11 x64 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88.9 mm |
| Depth The distance from the front to the back of something. | 119.5 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type The type of product package e.g. box. | Box |
| Other features | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| SKU | 825713 |
| MPN | THUNDERBOLTEX 5 |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Product Use | General |
