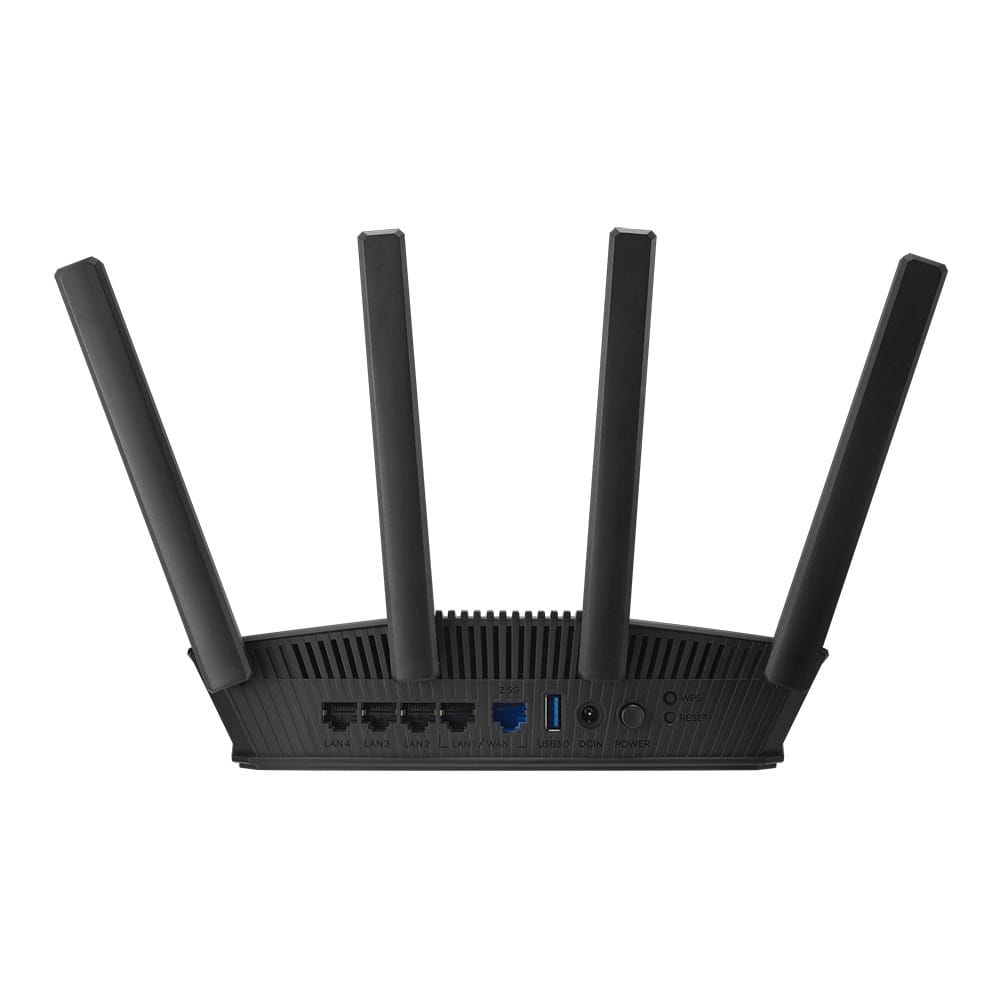

Asus RT-BE58U Dual Band WiFi 7 Smart AiMesh Router

WAN connection
Ethernet WAN
SIM card slot Whether the device features a SIM card slot.

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	3600 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.	4096-QAM

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	2.5 Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	1000,2500 Mbit/s

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Reset button
WPS push button

Security
Parental control

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators	LAN, Power, WAN
Product type The sub-category of the product.	Tabletop router

Antenna
Antenna design	External
Antennas quantity	4

Features
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Broadcom
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	2000 MHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4

Power
Power source type What the power source is.	DC
Output voltage	12 V
Output current	2 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	0 - 70 °C
Operating relative humidity (H-H)	50 - 90%
Storage relative humidity (H-H)	20 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	238 mm
Depth The distance from the front to the back of something.	193 mm
Height The measurement of the product from head to foot or from base to top.	59 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	461 g

Packaging data
Package width The distance from one side of the packaging to the other.	285 mm
Package depth The distance from the front to the back of the packaging.	193 mm
Package height The distance from the top to the bottom of the packaging.	104 mm
Package weight Weight of the packaged product.	1.03 kg
Package type The type of product package e.g. box.	Box
