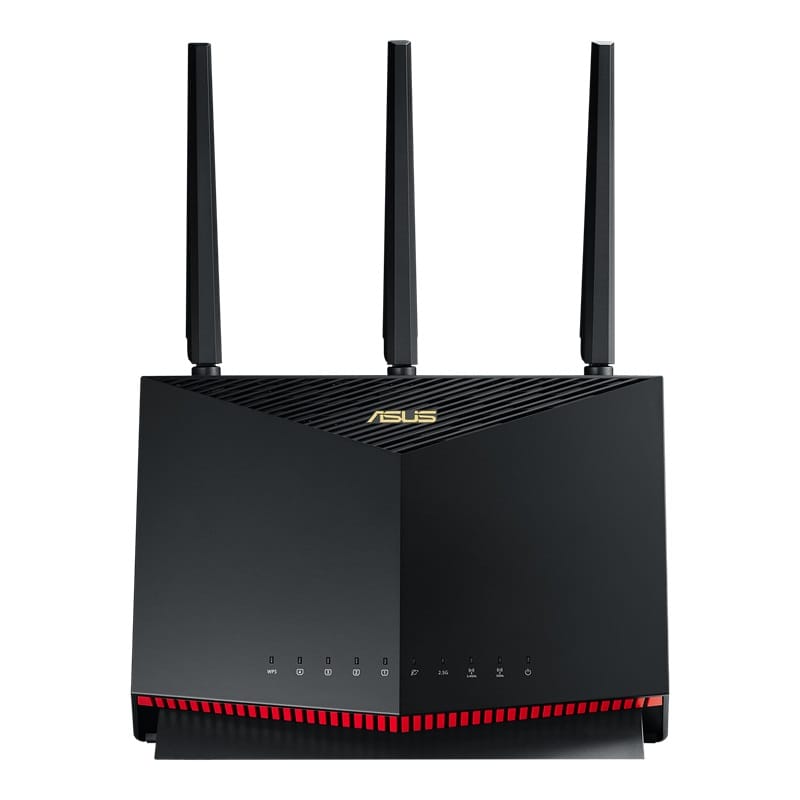

Asus RT-AX86S AX5700 Dual Band WiFi6 Gaming Router

Item No:
539966
MPN:
RT-AX86S
$419.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown
  • Unavailable at Blacktown
  • Unavailable at Castle Hill
New-generation WiFi 6 - Enjoy ultrafast speeds up to 5700 Mbps with the latest WiFi 6 (802.11ax) and 160MHz channels
Mobile Game Mode - Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app
True 2 Gbps wired and wireless speeds - Aggregated 2 Gbps WAN connections and WiFi 6
Commercial-grade Security Anywhere
WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type RJ-45
Wireless LAN features
Wi-Fi band The frequency bands the product features. Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max) 5700 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band) 861 Mbit/s
WLAN data transfer rate (second band) 4804 Mbit/s
Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. 1024-QAM
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface. Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10,100,1000 Mbit/s
Port forwarding
Port triggering
Dynamic DNS (DDNS)
VPN server PPTP, OVPN, IPSec
Mobile network
Mobile network generation 5G
Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 4
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
DC-in jack The socket/plug where the DC electricity supply connects to the device.
Management features
Bandwidth control
Quality of Service (QoS) support
Wake-on-LAN ready
Reset button
WPS push button
MU-MIMO technology
Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. SSH,SSID,WPA-Enterprise,WPA-PSK,WPA2-Enterprise,WPA2-PSK,WPA3-PSK,WPS
Firewall
Guest access
Parental control
Filtering
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 64 entries
System event log
DMZ support
NAT functionality PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Protocols
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Design
Product colour The colour e.g. red, blue, green, black, white. Black
LED indicators LAN, Power, USB, WAN, WPS
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product. Tabletop router
Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal. Internal & external
Antennas quantity 4
Features
Built-in processor Whether or not a processor is built into the device.
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. 1800 MHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). 2
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. 512 MB
Flash memory 256 MB
Works with Amazon Alexa
Power
Power source type What the power source is. AC
AC input voltage The voltage of the AC electricity that is inputted into the product. 110 - 240 V
AC input frequency 50/60 Hz
Output voltage 19 V
Output current 2.37 A
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. 0 - 70 °C
Operating relative humidity (H-H) 50 - 90%
Storage relative humidity (H-H) 20 - 90%
Weight & dimensions
Width The measurement or extent of something from side to side. 242 mm
Depth The distance from the front to the back of something. 100 mm
Height The measurement of the product from head to foot or from base to top. 164 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 814.5 g
Packaging data
Cables included LAN (RJ-45)
AC adapter included
Warranty card
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Package width The distance from one side of the packaging to the other. 390 mm
Package depth The distance from the front to the back of the packaging. 266 mm
Package height The distance from the top to the bottom of the packaging. 113 mm
Package weight Weight of the packaged product. 1.7 kg
Number of products included The number of products that are included in the package. 1 pc(s)
More Information
SKU 539966
MPN RT-AX86S
Brand Asus
Product Condition Brand New/Unused
Modem Type Ethernet
Wired/Wireless Wireless
Stock Availability In Stock at Castle Hill
Product Use Gaming
Warranty Period 1 Year Warranty
Warranty Contact https://www.asus.com/
