ULTIMATE POWER. UNMATCHED STABILITY.

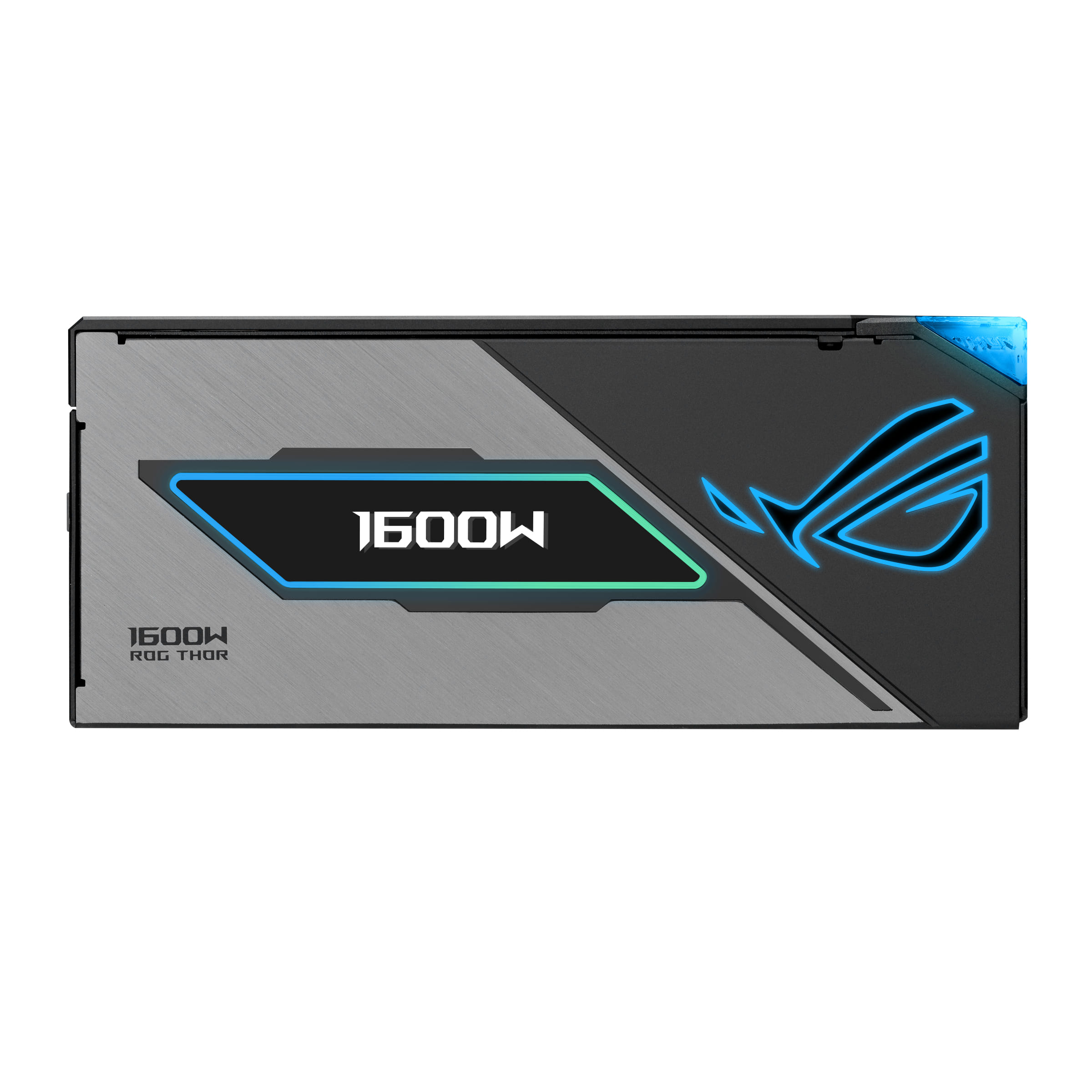

The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.
The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.
The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1600 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 10 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 9 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Silent mode |
|
| Bearing technology | DBB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 120000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination The device has illumination. |
|
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display type Type of display (screen) e.g. LCD. | OLED |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Packaging content | |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 200 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.8 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 390 mm |
| Package depth The distance from the front to the back of the packaging. | 251 mm |
| Package height The distance from the top to the bottom of the packaging. | 159 mm |
| Package weight Weight of the packaged product. | 6.3 kg |
| Package type The type of product package e.g. box. | Box |
| SKU | 812836 |
| MPN | ROG-THOR-1600T3 |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.asus.com/ |
