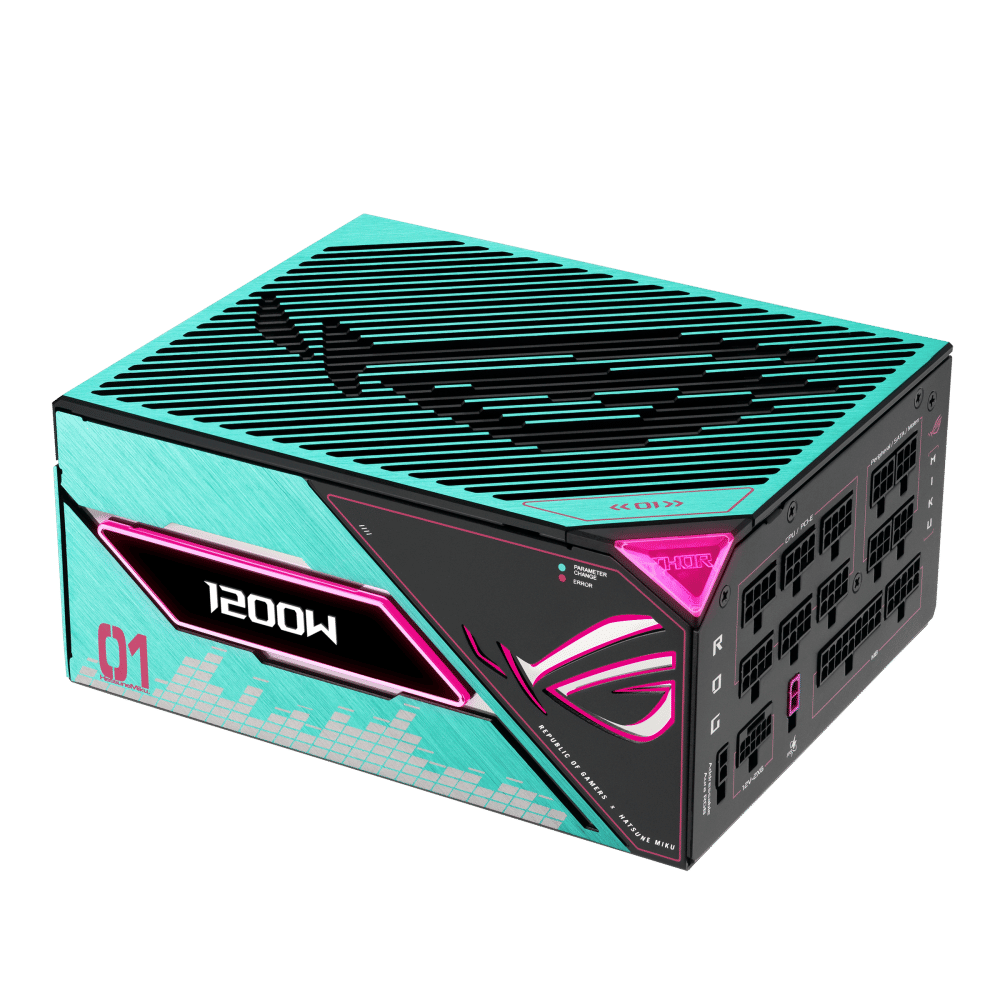

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III Hatsune Miku Edition delivers unmatched performance and rock-solid stability for your ultimate PC build.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1200 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Overheating, Over current, Over power, Over voltage, Short circuit, Under power |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 7 |
| SATA power cable length | 400,120 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 6 |
| Peripheral (Molex) power cable length | 400,150 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 100 cm |
| PCI Express connector |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 120000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Multicolour |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Illumination The device has illumination. |
|
| Packaging content | |
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Packaging content | Power cord x 1 Motherboard power cable x 1 (610mm) CPU cable x 2 (1000mm) PCI-E Gen 5 16-pin cable x 1 (750mm) PCI-E cable 1-to-1 x 4 (750mm) SATA cable 1-to-4 x 1 (400+120+120+120mm) SATA cable 1-to-3 x 1 (400+120+120mm) Peripheral cable 1-to-3 x 2 (400+150+150mm) Addressable RGB cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis screws package x 1 Cable tie x 12 Thank you card x 1 User manual x 1 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 190 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.37 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 379 mm |
| Package depth The distance from the front to the back of the packaging. | 241 mm |
| Package height The distance from the top to the bottom of the packaging. | 127 mm |
| Package weight Weight of the packaged product. | 5.21 kg |
| Package type The type of product package e.g. box. | Box |
| SKU | 827418 |
| MPN | ROG-THOR-1200P3-MIKU |
