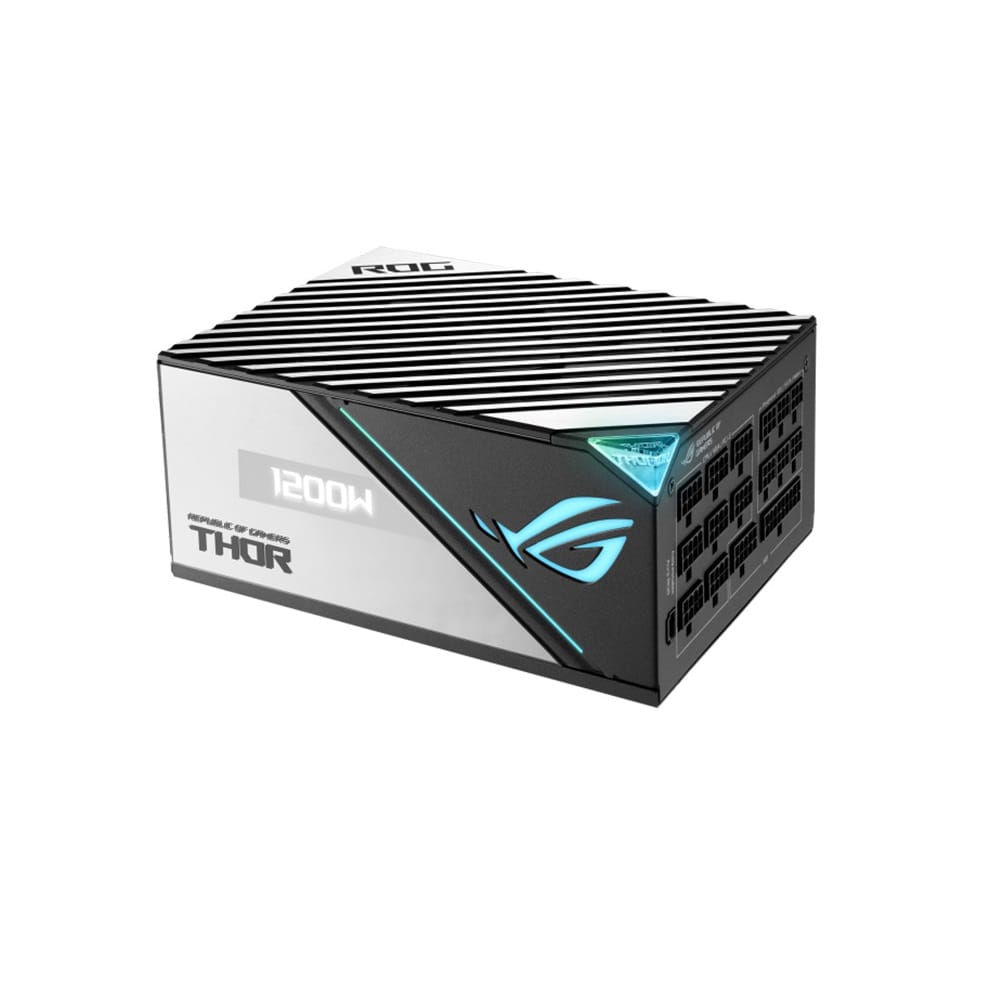

Back with a vengeance, the second iteration of the ROG Thor 1200W Platinum wields cooling and component upgrades that make it the quietest PSU in its class.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1200 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 89% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) |
 |
| ATX power connector (20+4 pin) |
|
| Cabling type | Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose What the product is used for. | PC |
| Silent mode |
|
| Bearing technology | Ball bearing |
| Certification | Lambda A++, 80 Plus Platinum |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination The device has illumination. |
|
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display type Type of display (screen) e.g. LCD. | LED |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 190 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.37 kg |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS |
| SKU | 652771 |
| MPN | ROG-THOR-1200P2-GAMING |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| PSU Form Factor | N/A |
| Stock Availability | In Stock at Bankstown |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
