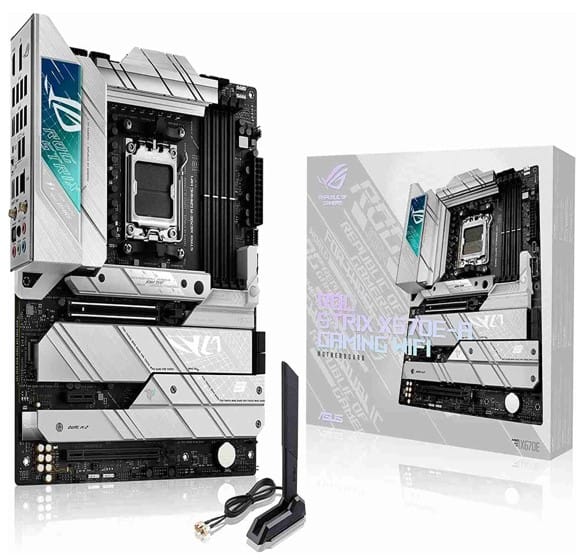

Asus ROG Strix X670E-A Gaming Wi-Fi AM5 ATX Motherboard

Item No:
684957
MPN:
ROG STRIX X670E-A GAMING WIFI
$709.00 $578.77 While stocks last!
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
- AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
- Robust Power Solution: 16 + 2 teamed power stages with 8+8 pin ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, four onboard M.2 heatsinks and one M.2 backplate for the M.2_1 slot
- Overclocking technologies: Dynamic OC Switcher, Core Flex and PBO Enhancement
- High-Performance Networking: Onboard WiFi 6E, Intel® 2.5 Gb Ethernet and ASUS LANGuard
- Fastest Gaming Connectivity: PCIe® 5.0, two onboard PCIe 5.0 M.2 slots, USB 3.2 Gen 2x2 front-panel connector and Thunderbolt™ header
- Industry-Leading Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, BIOS?FlashBack™, Clr CMOS Button, FlexKey, SafeSlot and SafeDIMM
- Intelligent Control: ASUS-exclusive tools including AI Cooling II, Two-Way AI Noise-Cancelation and AI Networking for easy configuration
- Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard
Processor
Processor manufacturer The manufacturer that produced the processor. AMD
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. Socket AM5
Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. AMD Ryzen™ 7
Memory
Supported memory types Types of memory which can be used with the product. DDR5-SDRAM
Number of memory slots 4
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. DIMM
Memory channels Dual-channel
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
Non-ECC
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum internal memory The maximum internal memory which is available in the product. 128 GB
Unbuffered memory
Storage controllers
Supported storage drive types The type of storage drives the device is compatible with. HDD & SSD
Supported storage drive interfaces M.2, SATA III
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. 0, 1, 10
Graphics
Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. Not supported
Internal I/O
USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. 2
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. 4
Number of SATA II connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA II (revision 2.x) interface, formally known as SATA 3Gb/s, is a second generation SATA interface running at 3.0 Gb/s. The bandwidth throughput, which is supported by the interface, is up to 300MB/s. 1
Front panel audio connector
ATX Power connector (24-pin)
CPU fan connector
Number of chassis fan connectors 5
Thunderbolt headers 1
12V power connector
RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. 1
HDMI version 2.1
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. 1
DisplayPort version 1.4
Headphone outputs Number of sockets /ports where headphones are connected. 1
Line-in
Microphone in The socket where a microphone is connected to the device.
S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
Digital audio optical out The socket in the device for the digital audio output. The signal is carried via an optical cable with an TOSLINK connector. 1
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type 2.5 Gigabit Ethernet
LAN controller Intel I225-V
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). 5.2
Features
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. AMD X670
Audio chip Realtek ALC4080
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. 7.1 channels
Component for What this product is used as a part of (component for). PC
Motherboard form factor Design of the motherboard (ATX, BTX etc). ATX
Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. AMD
Cooling type The method used to cool the device or to cool the air around the device. Active
Windows operating systems supported Windows vesions wich can be used with the device. Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard. 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 4
BIOS
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. UEFI AMI
BIOS memory size 256 Mbit
Clear CMOS button
Packaging data
Package width The distance from one side of the packaging to the other. 280 mm
Package depth The distance from the front to the back of the packaging. 265 mm
Package height The distance from the top to the bottom of the packaging. 710 mm
Weight & dimensions
Width The measurement or extent of something from side to side. 305 mm
Depth The distance from the front to the back of something. 244 mm
Packaging content
Cables included SATA
More Information
SKU 684957
MPN ROG STRIX X670E-A GAMING WIFI
Brand Asus
Product Condition Brand New/Unused
Case/MB Form Factor ATX
Motherboard Chipset AMD X670
CPU Socket AM5
Memory Type DDR5
Memory Form Factor DIMM
Stock Availability In Stock at Blacktown
Product Use Gaming
Product Features RGB
Warranty Period 3 Years Warranty
Warranty Contact https://www.asus.com/
