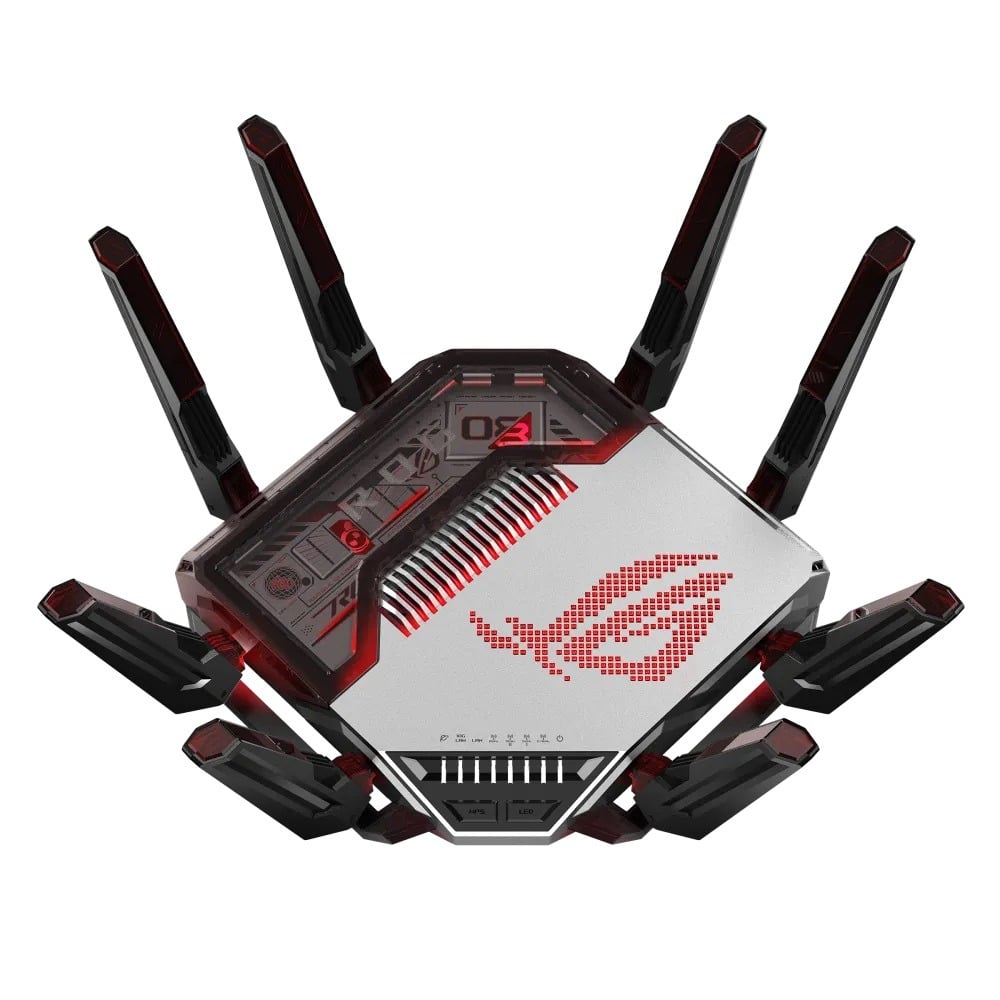

Asus ROG Rapture GT-BN98 Quad-Band WiFi 8 (802.11bn) Gaming Router
Item No:
843315
MPN:
GT-BN98
$1,999.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our warehouse in 1-2 business days
Store Availability
- 2-3 business days at Bankstown Store
- 2-3 business days at Castle Hill Store
- In Stock at Northmead Store
Shipping Estimate
GT-BN98 Quad-Band WiFi 8 (802.11bn) Gaming Router, 320MHz bandwidth & 4096-QAM, dual 10G ports, backup WAN, Triple-Level Game Acceleration, Adaptive QoE, WiFi Insight, Guest Network Pro, AiMesh, upgraded AiProtection and comprehensive VPN features.
| WAN connection | |
| Ethernet WAN Indicates whether the device features a dedicated Ethernet port for connecting to a wide area network (WAN). |
 |
| DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option. |
 |
| SIM card slot Whether the device features a SIM card slot. |
|
| 3G/4G USB modem compatibility Indicates whether the device supports the connection of an external 3G or 4G USB modem for cellular internet access. |
|
| WAN connection type The physical or logical interface used to connect the device to the wide area network (e.g. RJ-45, SFP, or GPON). | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 8 (802.11bn) |
| WLAN data transfer rate (max) The maximum theoretical speed at which data can be transmitted wirelessly, measured in Megabits per second (Mbps) or Gigabits per second (Gbps). | 11529 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 8 (802.11bn) |
| WLAN data transfer rate (first band) The maximum theoretical speed at which data can be transmitted wirelessly over the first frequency band, measured in Megabits per second (Mbps). | 1376 Mbit/s |
| WLAN data transfer rate (second band) The maximum theoretical speed at which data can be transmitted wirelessly over the secondary frequency band, measured in Megabits per second (Mbps). | 5764 Mbit/s |
| WLAN data transfer rate (third band) The maximum theoretical speed at which data can be transmitted over the third wireless frequency band, measured in Megabits per second (Mbps). | 5764 Mbit/s |
| WLAN data transfer rate (fourth band) The maximum theoretical speed at which data can be transmitted over the fourth wireless frequency band, measured in Mbit/s. | 11529 Mbit/s |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 4096-QAM, OFDMA |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | 10 Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,2500,10000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000/2500/5000/10000Base-T |
| Port forwarding Indicates whether the device supports the redirection of network ports to a specific IP address within the local network. |
|
| Port triggering Indicates whether the device supports port triggering to dynamically open incoming ports based on outgoing traffic. |
|
| Dynamic DNS (DDNS) Indicates whether the device supports a service that automatically updates a DNS record to map a domain name to a changing IP address. |
|
| VPN server Indicates the type or protocol of the integrated virtual private network server supported by the device (e.g. OpenVPN, PPTP). | IPSec, Open VPN, PPTP, WireGuard |
| VPN support Indicates whether the device supports the creation or connection of a Virtual Private Network for secure remote access. | VPN Client (L2TP, Open VPN, PPTP, WireGuard), VPN Server (IPSec, Open VPN, PPTP, WireGuard), VPN Fusion, Instant Guard, Support Surfshark, Support Nord VPN |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 7 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity The total number of available USB 3.2 Gen 1 (formerly 3.1 Gen 1) Type-A connection ports on the device. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Bandwidth control Indicates whether the device allows the user to limit the maximum data transfer rate for specific devices or applications. |
|
| Quality of Service (QoS) support Indicates whether the device supports Quality of Service (QoS) to prioritize specific network traffic to ensure performance for critical applications. |
|
| Wake-on-LAN ready Indicates whether the device can be turned on or woken up from a low-power state by a network message sent from another networked device. |
|
| Reset button Indicates whether the device features a dedicated button to restore the unit to its original factory settings. |
|
| WPS push button Indicates whether the device features a Wi-Fi Protected Setup (WPS) button for simplified wireless network connection. |
|
| MU-MIMO technology Indicates whether the device supports Multiple Input Multiple Output technology to allow simultaneous data transmission to multiple connected devices. |
|
| MIMO Indicates whether the device supports Multiple Input Multiple Output technology to increase wireless data throughput and stability. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA, WPA2, WPA3-Personal, WPA3-Enterprise |
| Firewall Indicates whether the device includes a built-in firewall to monitor and control incoming and outgoing network traffic. |
|
| Guest access Indicates whether the device supports a dedicated network for visitors to provide internet connectivity without granting access to the internal private network. |
|
| Parental control Indicates whether the device includes features to restrict access to specific content or limit usage time for children. |
|
| Filtering Indicates whether the device incorporates a system to remove impurities, particles, or unwanted noise and interference from a medium. |
|
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| URL filtering Indicates whether the device can block access to specific websites based on their web addresses. |
|
| System event log Indicates whether the device maintains a record of internal system events and status changes for diagnostic purposes. |
|
| DMZ support Indicates whether the device supports a Demilitarized Zone to allow external traffic to reach a specific internal host. |
|
| Network address translation (NAT) Indicates whether the device can remap one IP address space into another while in transit. |
|
| NAT functionality Describes the capabilities and configuration options for Network Address Translation, which allows multiple devices on a private network to share a single public IP address. | PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
| Protocols | |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| LED indicators The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access). | WAN, LAN, Power |
| Product type The sub-category of the product. | Tabletop router |
| Packaging content | |
| Cables included Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA). | LAN (RJ-45) |
| AC adapter included Indicates whether a power supply unit for connecting the device to an AC outlet is provided in the package. |
|
| Warranty card Indicates whether a physical warranty card is included with the product. |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Antenna | |
| Antenna design Specifies whether the antenna is built into the device or attached as an external component (e.g., External, Internal). | External |
| Antennas quantity The total number of antennas integrated into or supplied with the device. | 8 |
| Features | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 2600 MHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 2000 MB |
| Flash memory The total amount of non-volatile storage available for firmware or data, measured in MB. | 256 MB |
| Power | |
| Power source type What the power source is. | DC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 240 V |
| AC input frequency The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65). | 50/60 Hz |
| Output voltage The electrical potential difference delivered by the device, typically expressed in volts (e.g. 24-48). | 12 - 19.5 V |
| Output current The maximum electrical current that the device can provide to a connected load, measured in amperes (A). | 5 A |
| External power adapter Indicates whether the product requires or includes an external power adapter for operation. |
|
| SKU | 843315 |
| MPN | GT-BN98 |
| Brand | Asus |
| Assembled to Order | No |
| Shipping Latency | None |
| Display In Stock In Frontend | Yes |
| Product Condition | Brand New/Unused |
| Modem Type | Ethernet, 3G, 4G, 5G |
| Wired/Wireless | Wireless |
| WPA/WPA2 | No |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
