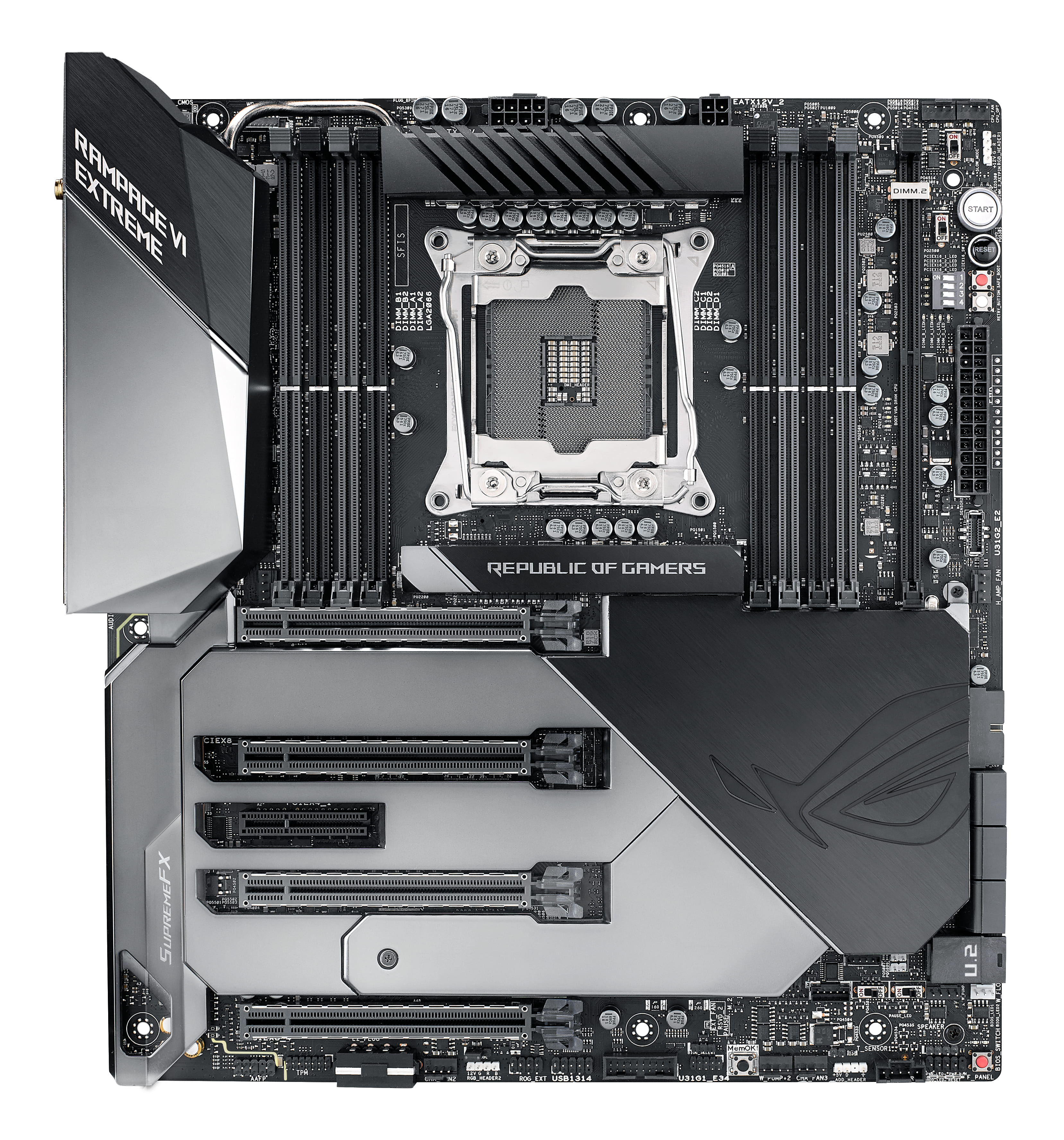

ASUS ROG RAMPAGE VI EXTREME, s2066/8DDR4

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.	LGA 2066
Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'.	Intel Core i7,Intel Core i9

Memory
Supported memory types Types of memory which can be used with the product.	DDR4-SDRAM
Number of memory slots	8
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	DIMM
Memory channels	Quad-channel
Non-ECC
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.	2133,2400,2666,2800,3000,3200,3300,3333,3600,3733,3866,4000,4133,4200 MHz
Maximum internal memory The maximum internal memory which is available in the product.	128 GB
Unbuffered memory

Graphics

Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs.

2-Way CrossFireX,2-Way SLI,3-Way CrossFireX,3-Way SLI,4-Way CrossFireX,4-Way SLI

Internal I/O
USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black.	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0.	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.	6
Front panel audio connector
ATX Power connector (24-pin)
Number of EATX power connectors	1
CPU fan connector
Number of chassis fan connectors	3
Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply.	1
EPS power connector (8-pin)
TPM connector
Thunderbolt headers	1

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	10 Gigabit Ethernet
LAN controller	Intel® I219-V
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a,Wi-Fi 5 (802.11ac),802.11ad,802.11b,802.11g,Wi-Fi 4 (802.11n)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	4.1

Features
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel® X299
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	7.1 channels
Component for What this product is used as a part of (component for).	PC
Motherboard form factor Design of the motherboard (ATX, BTX etc).	Extended ATX
Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD.	Intel
Power source type What the power source is.	ATX
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64

Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.	4
Number of M.2 (M) slots	1

BIOS
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.	UEFI AMI
BIOS memory size	32 Mbit
ACPI version	6.0
Clear CMOS button

Processor special features
Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.	3.0
Intel Extreme Memory Profile (XMP)

Weight & dimensions
Width The measurement or extent of something from side to side.	305 mm
Depth The distance from the front to the back of something.	277 mm

Packaging content
Cables included	SATA
Manual

Other features
BIOS switch button
