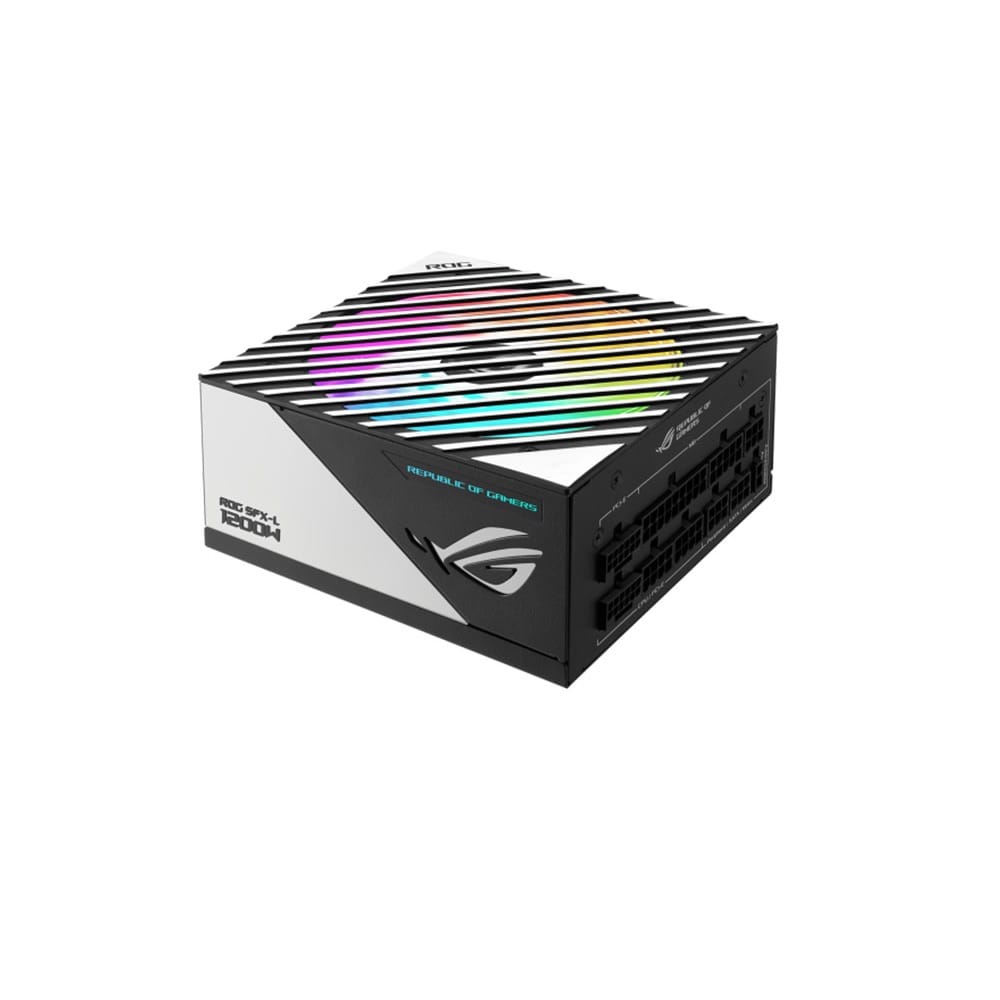

Taking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1200 W |
| Peak power This is the maximum power required by the device or peak music power. | 1200 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 100,200,300 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 100,300 mm |
| PCI Express power connectors (8-pin) | 4 |
| PCI Express power connectors (16-pin) | 2 |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 55 cm |
| ATX power connector (20+4 pin) |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | SFX-L |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.0 |
| Bearing technology | Ball bearing |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination The device has illumination. |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 125 mm |
| Height The measurement of the product from head to foot or from base to top. | 63.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.15 kg |
| Packaging data | |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 190 mm |
| Package height The distance from the top to the bottom of the packaging. | 100 mm |
| Package weight Weight of the packaged product. | 2.84 kg |
| Package type The type of product package e.g. box. | Box |
| Technical details | |
| Sustainability compliance |
|
| Logistics data | |
| Warranty period | 10 year(s) |
| SKU | 761123 |
| MPN | ROG-LOKI-1200T-SFX-L-GAMING |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| PSU Form Factor | SFX / SFX-L |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
