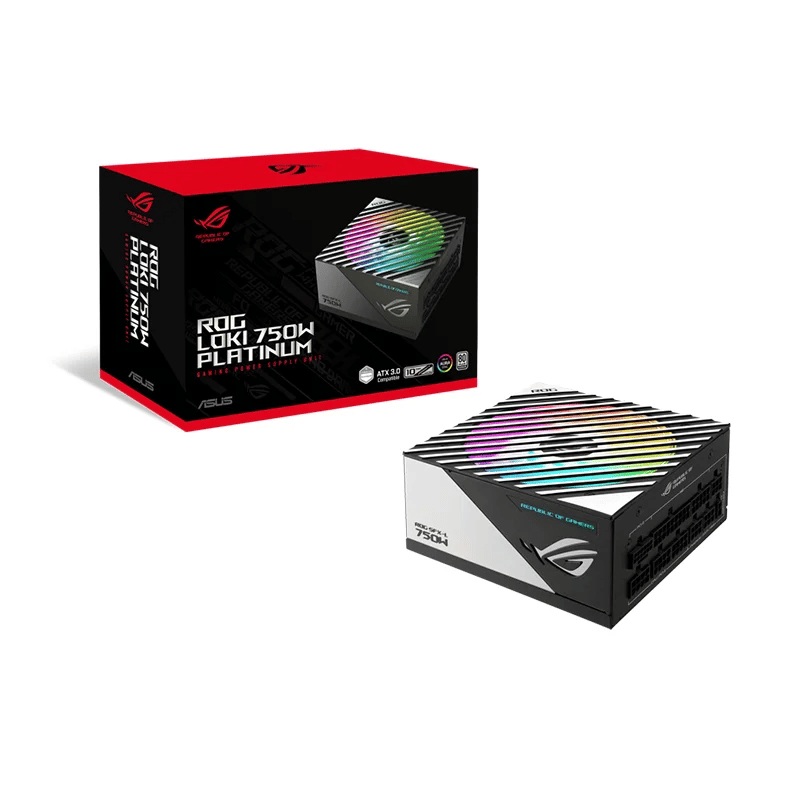

Input Voltage: 100-240Vac - Output Capacity: 750W - DC Output Voltage: +3.3V +5V +12V -12V +5Vsb - Maximum Load: 20A 20A 62.5A 0.8A 2.5A - ROG Heatsinks - Axial-tech Fan - Dual Ball Fan Bearings - ARGB-Illuminated Fan - Aura Sync Compatible - Low-ESR Japanese Capacitors - ATX 3.0 Compatible
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 750 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 2.5 A |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) |
 |
| PCI Express connector |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported motherboard form factors Design of the supported motherboards. | ATX |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | SFX-L |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.0 |
| Silent mode |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Cooling type The method used to cool the device or to cool the air around the device. | Semi-passive |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination The device has illumination. |
|
| Certificates | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | RoHS |
| Certification | OPP/OVP/UVP/SCP/OCP/OTP |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 125 mm |
| Height The measurement of the product from head to foot or from base to top. | 63.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.81 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 190 mm |
| Package height The distance from the top to the bottom of the packaging. | 100 mm |
| Package weight Weight of the packaged product. | 2.5 kg |
| Package type The type of product package e.g. box. | Box |
| SKU | 701288 |
| MPN | ROG-LOKI-750P-SFX-L-GAMING |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
