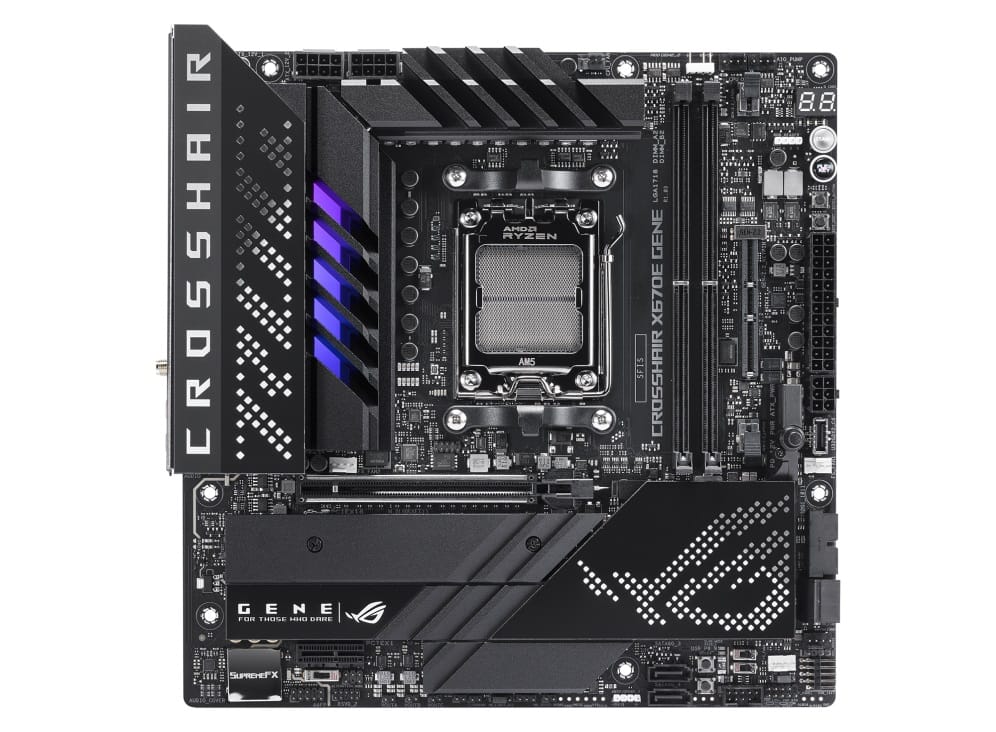

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Intelligent Control: ASUS-exclusive tools including AI Cooling II, Two-Way AI Noise-Cancelation and AI Networking for easy configuration
Robust Power Solution: 18 + 2 teamed power stages with 8+8 pin ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, L-shaped heatpipe, M.2 Combo-sink and M.2 backplate for PCIe® 5.0 M.2_1 slot, three on board M.2 heatsinks, plus a massive bundled PCIe® 5.0 M.2 heatsink as accessory
High-Performance Networking: Onboard WiFi 6E, Intel® 2.5 Gb Ethernet and ASUS LANGuard.
Fastest Gaming Connectivity: Dual PCIe® 5.0 slots, triple Gen 5 M.2 slots onboard, USB 3.2 Gen 2x2 front-panel connector, and Thunderbolt™ 4 header
Industry-Leading Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
DIY-Friendly Design: Power button, Pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-Code, Q-LED, BIOS?FlashBack™, Clr CMOS Button, FlexKey , SafeSlot and Safe DIMM
Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and intuitive UEFI BIOS dashboard
Intelligent Control: ASUS-exclusive tools including AI Cooling II, Two-Way AI Noise-Cancelation and AI Networking for easy configuration
Robust Power Solution: 18 + 2 teamed power stages with 8+8 pin ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, L-shaped heatpipe, M.2 Combo-sink and M.2 backplate for PCIe® 5.0 M.2_1 slot, three on board M.2 heatsinks, plus a massive bundled PCIe® 5.0 M.2 heatsink as accessory
High-Performance Networking: Onboard WiFi 6E, Intel® 2.5 Gb Ethernet and ASUS LANGuard.
Fastest Gaming Connectivity: Dual PCIe® 5.0 slots, triple Gen 5 M.2 slots onboard, USB 3.2 Gen 2x2 front-panel connector, and Thunderbolt™ 4 header
Industry-Leading Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
DIY-Friendly Design: Power button, Pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-Code, Q-LED, BIOS?FlashBack™, Clr CMOS Button, FlexKey , SafeSlot and Safe DIMM
Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and intuitive UEFI BIOS dashboard
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | Socket AM5 |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Socket AM5 |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | DIMM |
| Memory channels | Dual-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Non-ECC |
|
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Unbuffered memory |
|
| Storage controllers | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 10 |
| Graphics | |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 4 |
| S/PDIF out connector |
|
| Front panel audio connector |
|
| Front panel connector |
|
| ATX Power connector (24-pin) |
|
| CPU fan connector |
|
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) |
|
| 12V power connector |
|
| RGB LED pin header |
|
| Rear panel I/O ports | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 1 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | AMD X670 |
| Audio chip | Realtek ALC4080 |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | micro ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | AMD |
| Power source type What the power source is. | ATX |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button |
|
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 367 mm |
| Package depth The distance from the front to the back of the packaging. | 291 mm |
| Package height The distance from the top to the bottom of the packaging. | 74 mm |
| Package weight Weight of the packaged product. | 3.08 kg |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 244 mm |
| Depth The distance from the front to the back of something. | 244 mm |
| Packaging content | |
| Cables included | SATA |
| User guide |
|
| Drivers included |
|
| Other features | |
| Special features | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - ROG True Voltician - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ Power Control - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Packaging content | Cables 1 x RGB extension cable 2 x SATA 6Gb/s cables ROG GEN-Z.2 with Heatsink 1 x ROG GEN-Z.2 with heatsink 1 x M.2 pad for ROG GEN-Z.2 2 x M.2 screw package for ROG GEN-Z.2 ROG True Voltician 1 x ROG True Voltician 4 x cables for ROG True Voltician Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG Graphics card holder 1 x ROG key chain 1 x ROG stickers 1 x ROG thank you card 1 x Rubber Package for M.2 backplate Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide |
| SKU | 684943 |
| MPN | ROG CROSSHAIR X670E GENE |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | AMD X670 |
| CPU Socket | AM5 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
