New
Asus ProArt GeForce RTX 5090 OC 32GB Graphic Card
Item No:
839743
MPN:
PROART-RTX5090-O32G
$7,199.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our warehouse in 1-2 business days
Store Availability
- 2-3 business days at Bankstown Store
- 2-3 business days at Castle Hill Store
- In Stock at Northmead Store
Shipping Estimate
ASUS ProArt -RTX5090-O32G, GeForce RTX 5090, 32 GB, GDDR7, 512 bit, 7680 x 4320 pixels, PCI Express 5.0

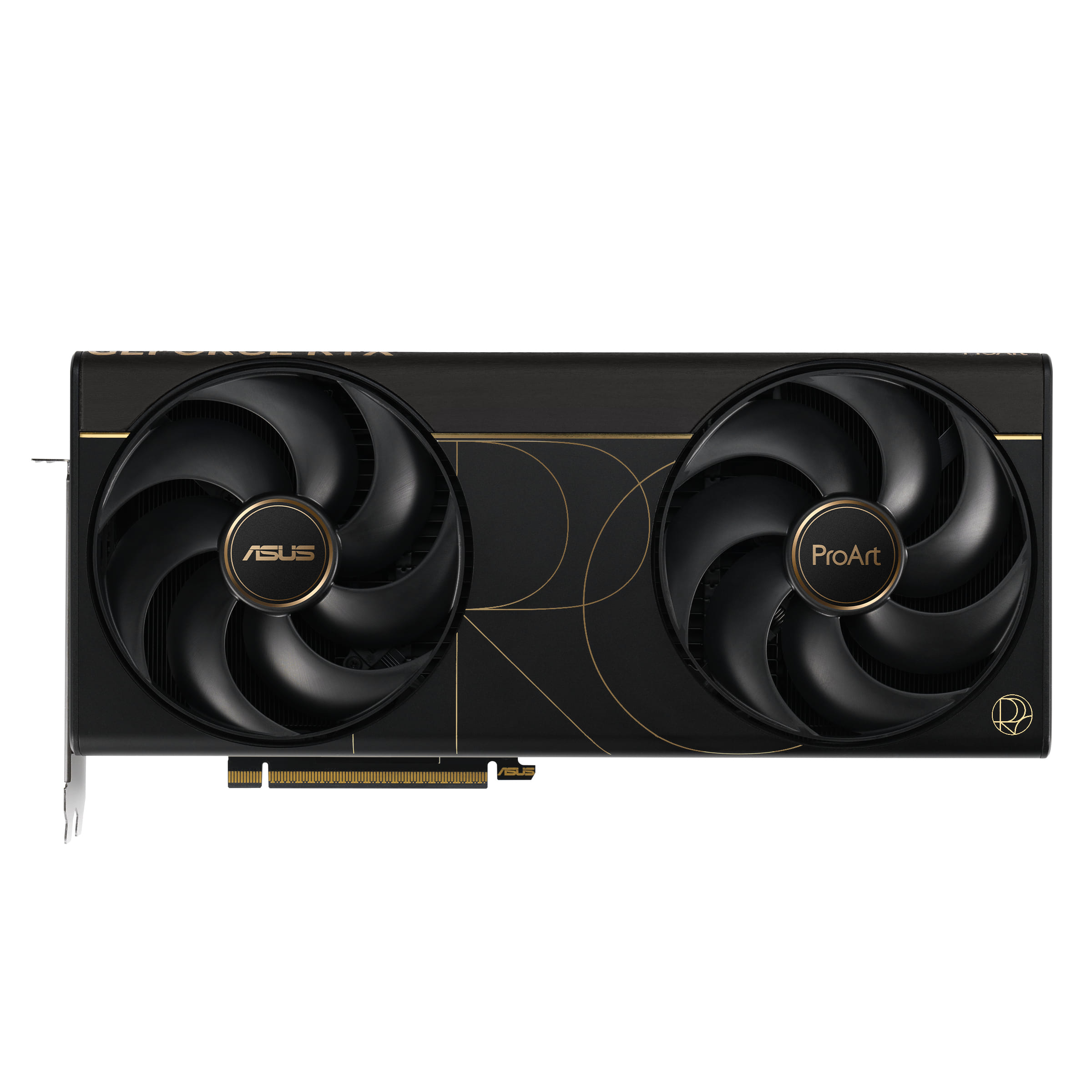

ProArt GeForce RTX™ 5090 OC Edition
Artistry Meets Performance
Experience exceptional power and cooling in a compact design with the ProArt GeForce RTX™ 5090. This first-ever 2.5-slot compact RTX 5090 card from ASUS features two large Axial-tech fans, a vapor chamber, and a double-vented backplate. It also features liquid metal thermal compound for enhanced GPU cooling, helping to ensure optimal performance. A USB Type-C port enhances versatility for content creation workflows, and wood-patterned laminate trim plus subtle ProArt elements deliver a refined aesthetic. Whether you're building a small-form-factor workstation or a full-scale tower, the ProArt RTX 5090 delivers ultimate versatility.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Premium Cooling
Exceptional Thermal in Compact 2.5-Slot Design
Large dual Axial-tech fans and a double-vented backplate maximize airflow, while a vapor chamber and liquid metal compound help ensure exceptional thermal performance in a compact design.
Artistry Meets Performance
Experience exceptional power and cooling in a compact design with the ProArt GeForce RTX™ 5090. This first-ever 2.5-slot compact RTX 5090 card from ASUS features two large Axial-tech fans, a vapor chamber, and a double-vented backplate. It also features liquid metal thermal compound for enhanced GPU cooling, helping to ensure optimal performance. A USB Type-C port enhances versatility for content creation workflows, and wood-patterned laminate trim plus subtle ProArt elements deliver a refined aesthetic. Whether you're building a small-form-factor workstation or a full-scale tower, the ProArt RTX 5090 delivers ultimate versatility.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Premium Cooling
Exceptional Thermal in Compact 2.5-Slot Design
Large dual Axial-tech fans and a double-vented backplate maximize airflow, while a vapor chamber and liquid metal compound help ensure exceptional thermal performance in a compact design.
| Processor | |
| CUDA CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs. |
 |
| CUDA cores | 21760 |
| Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). | NVIDIA |
| Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. | GeForce RTX 5090 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 2482 MHz |
| Processor frequency (OC mode) | 2512 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| Maximum displays per videocard | 4 |
| Memory | |
| Discrete graphics card memory | 32 GB |
| Graphics card memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. | GDDR7 |
| Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. | 512 bit |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 28 Gbit/s |
| Ports & interfaces | |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| DisplayPort version | 2.1b |
| USB Type-C ports quantity | 1 |
| Performance | |
| TV tuner integrated Device has an in-built TV tuner. |
 |
| OpenGL version OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives. | 4.6 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.3 |
| NPU performance up to | 3352 TOPs |
| Overclocked (OC) edition |
|
| Design | |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Form factor The shape or design of the product. | Full-Height/Half-Length (FH/HL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 2.5 |
| Illumination The device has illumination. |
|
| SFF ready |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Minimum system power supply The lowest power that is needed. | 1000 W |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.81 kg |
| Length The measurement or extent of something from end to end. | 304 mm |
| Depth The distance from the front to the back of something. | 50 mm |
| Height The measurement of the product from head to foot or from base to top. | 140 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 405 mm |
| Package depth The distance from the front to the back of the packaging. | 233 mm |
| Package height The distance from the top to the bottom of the packaging. | 88.5 mm |
| Package weight Weight of the packaged product. | 2.47 kg |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Manual |
|
| SKU | 839743 |
| MPN | PROART-RTX5090-O32G |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| GPU Series | GeForce RTX 5090 |
| Graphics RAM Size | 32 GB |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.asus.com/ |
