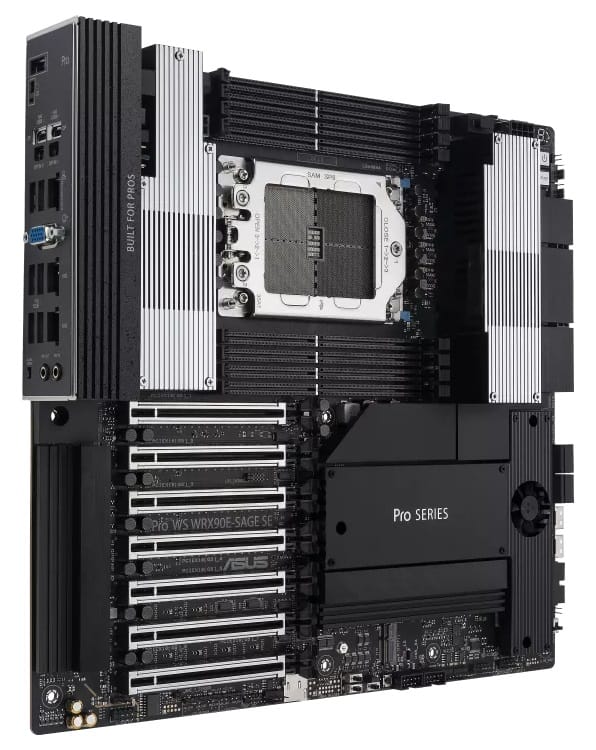

ASUS PRO WS WRX90E-SAGE SE sTR5 EEB Workstation Motherboard

Processor
Processor manufacturer The manufacturer that produced the processor.	AMD
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.	Socket sTR5
Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'.	AMD Ryzen Threadripper PRO 7000 WX-Series

Memory
Supported memory types Types of memory which can be used with the product.	DDR5-SDRAM
Number of memory slots	8
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	DIMM
Memory channels	Octa-channel
ECC сompatibility	ECC

Storage controllers
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Supported storage drive interfaces	M.2, SATA III, SlimSAS
Number of HDDs supported The total number of hard drives that can be used in/with this product.	4
Number of storage drives supported How many storage drives can be fit into the product at once.	10
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	0, 1, 5, 10

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.

Internal I/O
USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black.	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0.	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.	4
Front panel audio connector
ATX Power connector (24-pin)
CPU fan connector
Number of chassis fan connectors	5
Chassis intrusion connector
EPS power connector (8-pin)
Number of COM connectors	1
TPM connector

Rear panel I/O ports
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
USB connector type The type of USB connector/port that this product has.	USB Type-A, USB Type-C

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Features
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	AMD WRX90
Audio chip	Realtek ALC1220P
Product colour The colour e.g. red, blue, green, black, white.	Aluminium, Black
Component for What this product is used as a part of (component for).	Workstation
Motherboard form factor Design of the motherboard (ATX, BTX etc).	EEB
Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD.	AMD
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10 x64, Windows 11

Expansion slots
PCI Express x16 (Gen 5.x) slots	7
Number of M.2 (M) slots	4

BIOS
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button

Packaging data
Package width The distance from one side of the packaging to the other.	377 mm
Package depth The distance from the front to the back of the packaging.	362 mm
Package height The distance from the top to the bottom of the packaging.	79 mm
Package weight Weight of the packaged product.	3.62 kg

Weight & dimensions
Width The measurement or extent of something from side to side.	305 mm
Depth The distance from the front to the back of something.	330 mm
Height The measurement of the product from head to foot or from base to top.	50 mm

Other features
Mini DisplayPorts quantity	2
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	3.33 kg
