- Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
- CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
- Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C® and 2 SlimSAS
- Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software
- CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
- Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C® and 2 SlimSAS
- Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software

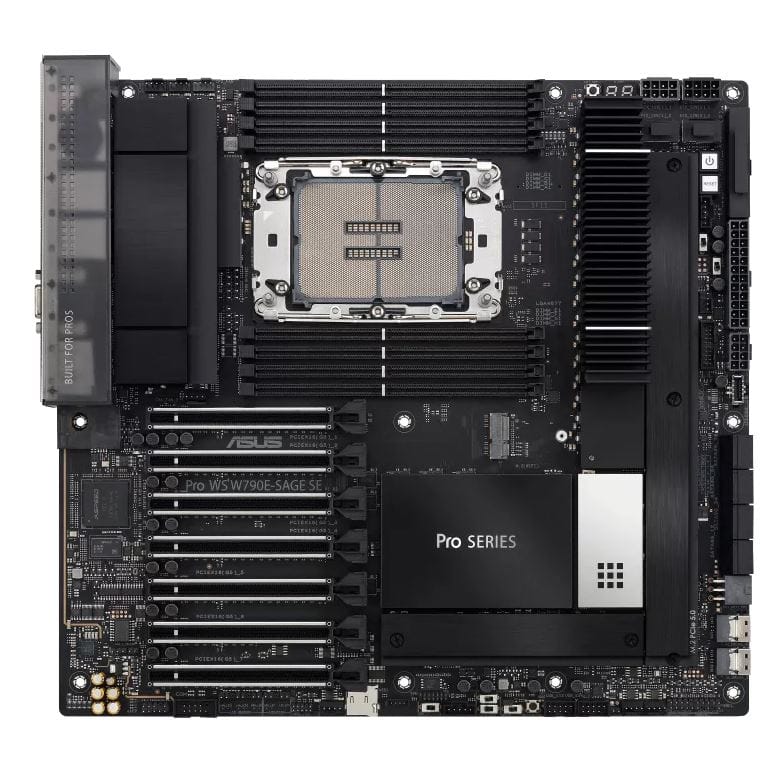

Intel W790 (LGA 4677) EEB workstation motherboard, PCIe 5.0 x16, M.2, Dual 10G LAN, Server grade Remote Management, 14 1 1 power stages, USB 3.2 Gen 2x2 Type C
Intel LGA 4677 socket: Ready for Intel Xeon W 3400 & W 2400 processors
CPU and memory overclocking: Supports for up to 2TB of ECC R DIMM DDR5 memory (1DPC)
Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710 AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type C and 2 SlimSAS
Server grade IPMI remote management: Hardware and software level with a dedicated LAN port link to AST2600 BMC controller, plus a real time monitoring and management software " ASUS Control Center Express
Robust power and thermal design: 14 1 1 power stages, 8 pin and 6 pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
Intel LGA 4677 socket: Ready for Intel Xeon W 3400 & W 2400 processors
CPU and memory overclocking: Supports for up to 2TB of ECC R DIMM DDR5 memory (1DPC)
Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710 AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type C and 2 SlimSAS
Server grade IPMI remote management: Hardware and software level with a dedicated LAN port link to AST2600 BMC controller, plus a real time monitoring and management software " ASUS Control Center Express
Robust power and thermal design: 14 1 1 power stages, 8 pin and 6 pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 4677 (Socket E) |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel Xeon W |
| Intel Xeon series | W-2400, W-3400 |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 4677 (Socket E) |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Supported memory clock speed (max) | 6800 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 2.05 TB |
| Storage controllers | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Supported storage drive interfaces | SlimSAS, M.2, SATA III |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 10 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 13 |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
 |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 8 |
| Front panel audio connector |
|
| ATX Power connector (24-pin) |
|
| Power fan connector |
|
| CPU fan connector |
|
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) |
|
| Number of COM connectors | 1 |
| TPM connector |
|
| 12V power connector |
|
| Integrated SAS ports | 2 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Line-in |
|
| Microphone in The socket where a microphone is connected to the device. |
|
| S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel W790 |
| Audio chip | Realtek S1220A |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Component for What this product is used as a part of (component for). | Workstation |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | EEB |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | Intel |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| Power source type What the power source is. | ATX |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11 |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button |
|
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 379 mm |
| Package depth The distance from the front to the back of the packaging. | 362 mm |
| Package height The distance from the top to the bottom of the packaging. | 81 mm |
| Package weight Weight of the packaged product. | 2.99 kg |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 305 mm |
| Depth The distance from the front to the back of something. | 330 mm |
| Packaging content | |
| Cables included | SATA |
| User guide |
|
| Other features | |
| Back-to-BIOS button |
|
| Number of M.2 (E) slots | 1 |
| SKU | 732611 |
| MPN | PRO WS W790E-SAGE SE |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | EEB |
| Motherboard Chipset | Intel W790 |
| CPU Socket | LGA 4677 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
