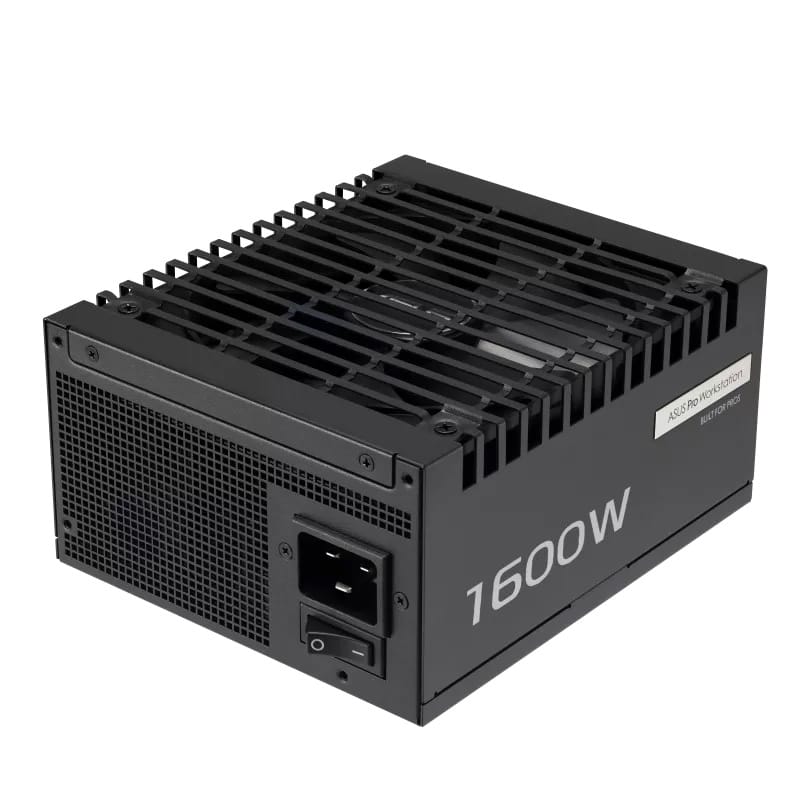

ASUS Pro WS 1600W Fully Modular 80+ Platinum ATX 3.1 Power Supply Unit
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1600 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 200 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 9 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 3 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 100 cm |
| ATX power connector (20+4 pin) |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Bearing technology | Ball bearing |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Certificates | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 175 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2 kg |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Logistics data | |
| Warranty period | 10 year(s) |
| SKU | 825548 |
| MPN | ASUS-PRO-WS-1600P |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
