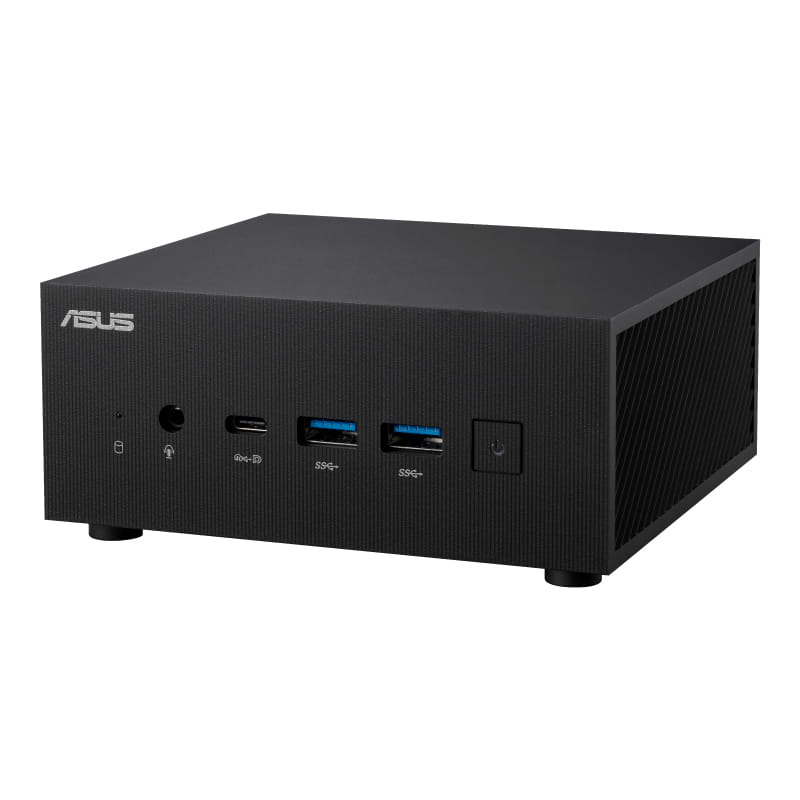

ASUS PN53 7R7BAREBONES, 0.92L sized PC, Mini PC barebone, DDR5 SDRAM, PCI Express, Serial ATA III, Ethernet LAN, Wi Fi 6E (802.11ax)
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | AMD Ryzen™ 7 |
| Processor model The model number for the processor in a computer. | 7735HS |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor threads | 16 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.75 GHz |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3.2 GHz |
| Built-in processor Whether or not a processor is built into the device. |
 |
| Processor cache | 20 MB |
| L2 cache The CPU cache (Level 2) is a smaller, faster memory which stores copies of the data from the most frequently used main memory locations. | 4 MB |
| L3 cache | 16 MB |
| Memory | |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory The maximum internal memory which is available in the product. | 32 GB |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 4800 MHz |
| Supported memory types Types of memory which can be used with the product. | DDR5-SDRAM |
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,M.2 |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | PCI Express, Serial ATA III |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 3 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | AMD |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | AMD Radeon 660M |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| Network | |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Copper ethernet cabling technology | 2500BASE-T |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| LAN controller | Realtek RTL8125B-CG |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB4 Gen 2x2 ports quantity | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | 0.92L sized PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product type The sub-category of the product. | Mini PC barebone |
| Performance | |
| Number of processors supported The quantity of processors which can be used by the product. | 1 |
| Audio chip | Realtek ALC897 |
| Power | |
| Power supply type The type of power supply which this product uses. | External AC adapter |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 130 mm |
| Height The measurement of the product from head to foot or from base to top. | 58 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 900 g |
| SKU | 744605 |
| MPN | PN53-7R7BAREBONES |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| CPU Socket | Soldered-down BGA |
| Memory Type | DDR5 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.asus.com/ |
