Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

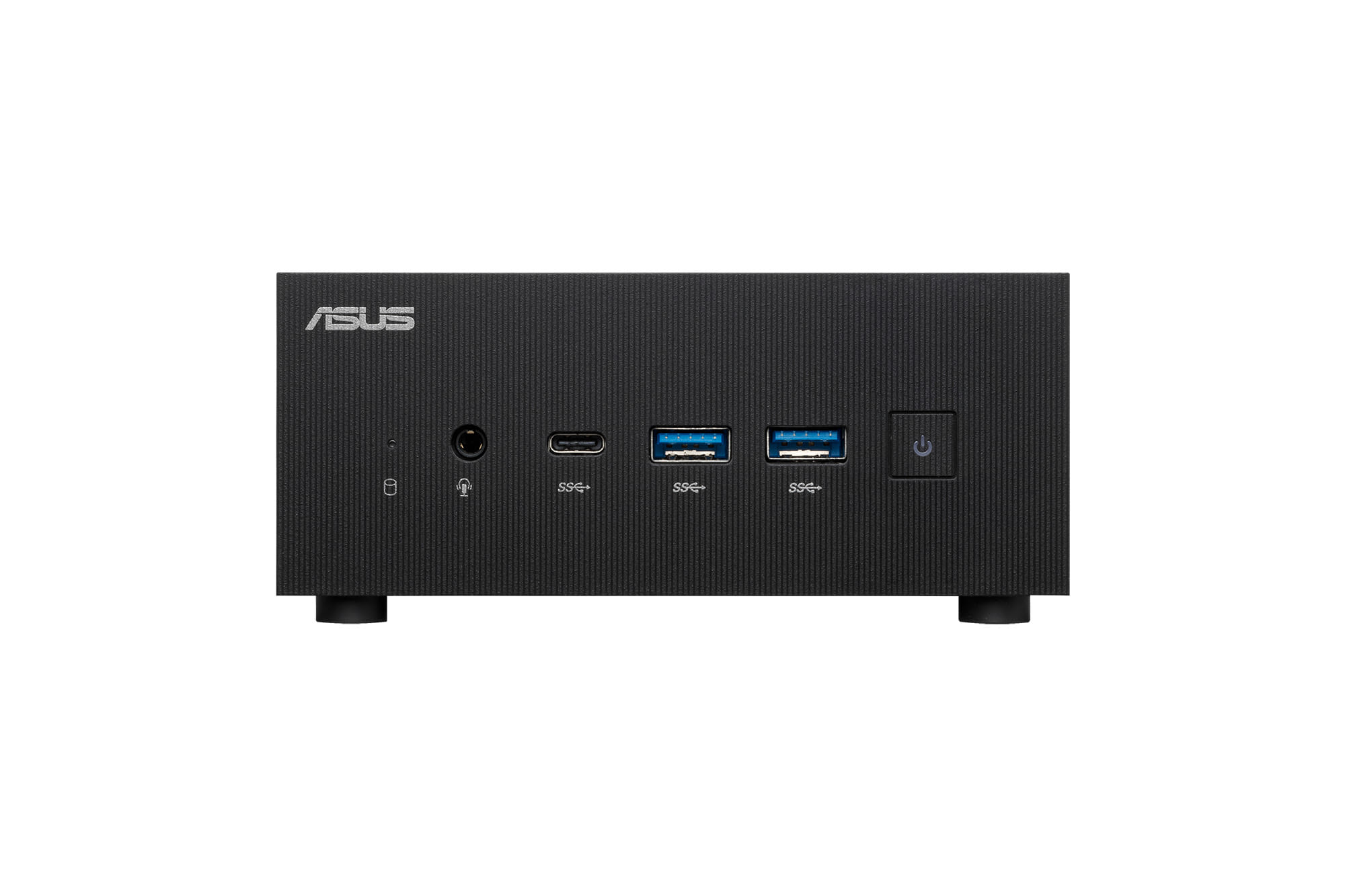

ASUS PN52 R9BAREBONES, Mini PC barebone, DDR4 SDRAM, PCI Express, Ethernet LAN, Wi Fi 6E (802.11ax), 120 W
System & CPU Performance
ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen 5000H series processor for smooth and powerful multitasking. In PCMark 10 benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.
Graphics Performance
ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 14.4% in 3DMark11 to 23.6% in the 3DMark Night Raid performance benchmarks.
4K Resolution & Quad Display Support
ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI ports, two DisplayPort over USB C or other user configurable ports, without any limitation on the combination used.
Ultra realistic 8K Visuals
ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB C. Experience a level of detail that s 4X greater than 4K, or 16X that of traditional FHD output.
USB Power Delivery Input
ASUS ExpertCenter PN52 can draw power from any USB Power Delivery enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
Easy Upgrades
An easy access underside panel allows users replace and upgrade memory, storage and the wireless card. All that s required is a screwdriver.
Configurable Port
ASUS ExpertCenter PN52 is well equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners or receipt printers.
Superfast 2.5 Gbps Networking
2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.
Multi storage Design
ASUS ExpertCenter PN52 is able to accommodate two M.2 SSDs and a 2.5 inch HDD, allowing users to specify custom storage solutions for a balance of speed and capacity that best suits their needs.
Military grade Durability
ASUS ExpertCenter PN52 is subjected to rigorous MIL STD 810H durability tests, enduring extreme temperatures and humidity, high altitude, plus drop and vibration tests to ensure it s fit to perform in the harshest conditions.
Enhanced Software MyASUS
AI Noise Cancelation
Two Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal clear voice communication.
System Diagnosis
Hardware diagnostic
Scenario check up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.
Smart Fan Control
Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.
Other Functions
WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.
ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen 5000H series processor for smooth and powerful multitasking. In PCMark 10 benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.
Graphics Performance
ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 14.4% in 3DMark11 to 23.6% in the 3DMark Night Raid performance benchmarks.
4K Resolution & Quad Display Support
ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI ports, two DisplayPort over USB C or other user configurable ports, without any limitation on the combination used.
Ultra realistic 8K Visuals
ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB C. Experience a level of detail that s 4X greater than 4K, or 16X that of traditional FHD output.
USB Power Delivery Input
ASUS ExpertCenter PN52 can draw power from any USB Power Delivery enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
Easy Upgrades
An easy access underside panel allows users replace and upgrade memory, storage and the wireless card. All that s required is a screwdriver.
Configurable Port
ASUS ExpertCenter PN52 is well equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners or receipt printers.
Superfast 2.5 Gbps Networking
2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.
Multi storage Design
ASUS ExpertCenter PN52 is able to accommodate two M.2 SSDs and a 2.5 inch HDD, allowing users to specify custom storage solutions for a balance of speed and capacity that best suits their needs.
Military grade Durability
ASUS ExpertCenter PN52 is subjected to rigorous MIL STD 810H durability tests, enduring extreme temperatures and humidity, high altitude, plus drop and vibration tests to ensure it s fit to perform in the harshest conditions.
Enhanced Software MyASUS
AI Noise Cancelation
Two Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal clear voice communication.
System Diagnosis
Hardware diagnostic
Scenario check up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.
Smart Fan Control
Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.
Other Functions
WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.
| Processor | |
| Built-in processor Whether or not a processor is built into the device. |
 |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | AMD Ryzen™ 9 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3.3 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor threads | 16 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.6 GHz |
| Processor cache | 16 MB |
| Memory | |
| Number of memory slots | 2 |
| Maximum internal memory The maximum internal memory which is available in the product. | 32 GB |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 3200 MHz |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | M.2 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | PCI Express |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 3 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | AMD |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | AMD Radeon Graphics |
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| Network | |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| LAN controller | Realtek RTL8125B-CG |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product type The sub-category of the product. | Mini PC barebone |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
| Performance | |
| Trusted Platform Module (TPM) |
|
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. |
|
| Power | |
| Power supply type The type of power supply which this product uses. | External AC adapter |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 120 W |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 130 mm |
| Height The measurement of the product from head to foot or from base to top. | 58 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| SKU | 715505 |
| MPN | PN52-R9BAREBONES |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| CPU Socket | Soldered-down BGA |
| Memory Type | DDR4 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.asus.com/ |
