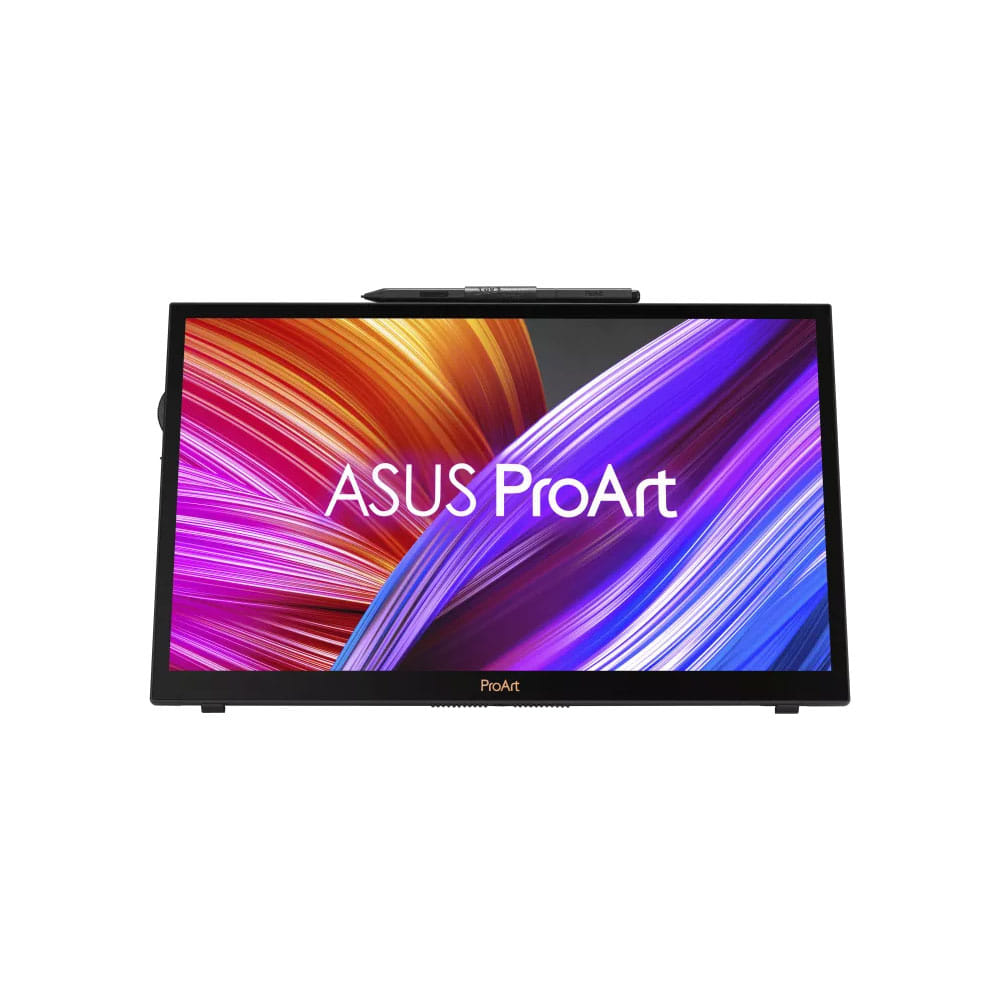

ASUS ProArt PA169CDV Pen Display – 15.6-inch, IPS, 4K UHD (3840 x 2160), WACOM EMR, 100% sRGB, Colour Accuracy ΔE < 2, Calman Verified, PANTONE Validated, USB-C, 10-point Touch, ASUS Dial, Control Panel.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 39.6 cm (15.6") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Display technology The technology used in the display e.g. plasma, LED. | LED |
| Panel type | IPS |
| Backlight type | LED |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology Technology of touch sensetive screen e.g. dual-touch. | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 500 cd/m² |
| Display brightness (typical) Display brightness, measured by its Luminance, presented as a figure in candela per square meter (cd/m2). Typical brightness ratings for monitors range from 250 to 350 cd/m2 with a target value of between 80 to 120 cd/m2 being suitable for most displays in a normal viewing environment. | 450 cd/m² |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 29 ms |
| Anti-glare screen Always gives an optimal view, even in direct sunlight. |
|
| Screen shape | Flat |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1200:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 15000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.09 x 0.09 mm |
| Pixel density | 282 ppi |
| Viewable size, horizontal The viewable size is often somewhat smaller than the actual size of a monitor, because there is a border around the image. | 34.6 cm |
| Viewable size, vertical | 19.4 cm |
| Digital horizontal frequency | 29 - 160 kHz |
| Digital vertical frequency | 40 - 60 Hz |
| High Dynamic Range (HDR) supported |
|
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| Colour depth | 10 bit |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| sRGB coverage (typical) | 100% |
| Performance | |
| NVIDIA G-SYNC |
 |
| AMD FreeSync The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing. |
|
| Flicker-free technology |
|
| Low Blue Light technology |
|
| Multimedia | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Built-in camera The product has an integrated camera. |
|
| Number of speakers The quantity of speakers included in/with the product. | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 2 W |
| Design | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Graphics design |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | Energy Star TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 400 Calman Verified Pantone Validated |
| Ports & interfaces | |
| Built-in USB hub Whether or not the device features a USB hub to connect more than one other device via USB. |
|
| USB Type-C downstream ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode |
|
| USB Power Delivery |
|
| USB Power Delivery up to | 15 W |
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0 |
| Headphone out The socket for connecting headphones to the device. |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.2 |
| Charging port type | USB Type-C |
| Ergonomics | |
| VESA mounting |
|
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Height adjustment The part of the device that can be adjusted to change the height. |
|
| Pivot |
|
| Pivot angle | 0 - 90° |
| Tilt angle range | 17 - 75° |
| Tilt adjustment The tilt, which means the angle at which the device is pointing (up or down), can be changed. |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 15 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Width (without stand) | 370 mm |
| Depth (without stand) | 12 mm |
| Height (without stand) | 237 mm |
| Weight (without stand) | 1.07 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 539 mm |
| Package depth The distance from the front to the back of the packaging. | 323 mm |
| Package height The distance from the top to the bottom of the packaging. | 107.5 mm |
| Package weight Weight of the packaged product. | 5.95 kg |
| Package type The type of product package e.g. box. | Box |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | ENERGY STAR |
| SKU | 746489 |
| MPN | PA169CDV |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 15.60 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 3840x2160 (UHD/4K) |
| Input | HDMI, USB-C |
