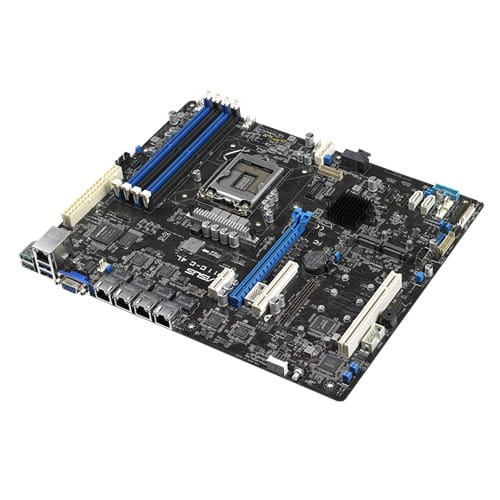

ASUS P11C-C/4L, Intel, LGA 1151 (Socket H4), Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®, DDR4-SDRAM, 64 GB, DIMM
Industry-standard ATX server board with multiple expandability options
P11C-C/4L is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering quad server-class Intel Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe, and one PCI slot for legacy devices.
The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.
Dual M.2 for up to 32Gbps performance and data redundancy
P11C-C/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.
NVMe high-speed storage interface
P11C-C/4L features NVMe technology, which offers reduced latency, lower power-consumption and faster CPU-to-storage performance for better throughput. A flexible NVMe upgrade package provides a switchable storage interface with a PCIe to U.2 add-on card or M.2 to U.2 adapter for more drive choices.
High-speed mini-SAS HD connections
P11C-C/4L comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-C/4L also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-C/4L, making it a great upgrade option.
Quad Intel I210AT Gigabit Ethernet
P11C-C/4L features quad server-class Intel Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.
TPM-M 2.0 ready
P11C-C/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.
Comprehensive IT infrastructure management
P11C-C/4L features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics -- even if the operating system is down or offline -- through a user-friendly, web-based graphical interface that works with all major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Enhanced serviceability
With its power button located on the front I/O panel, P11C-C/4L is designed to provide easier maintenance and deployment for diverse applications.
P11C-C/4L has a visible Q-Code/port 80 LED display for simple monitoring of the entire boot process, from power on through loading of the operating system.
Quick initialization guidance
P11C-C/4L provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
ASUS ProCool connector
ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.
P11C-C/4L is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering quad server-class Intel Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe, and one PCI slot for legacy devices.
The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.
Dual M.2 for up to 32Gbps performance and data redundancy
P11C-C/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.
NVMe high-speed storage interface
P11C-C/4L features NVMe technology, which offers reduced latency, lower power-consumption and faster CPU-to-storage performance for better throughput. A flexible NVMe upgrade package provides a switchable storage interface with a PCIe to U.2 add-on card or M.2 to U.2 adapter for more drive choices.
High-speed mini-SAS HD connections
P11C-C/4L comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-C/4L also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-C/4L, making it a great upgrade option.
Quad Intel I210AT Gigabit Ethernet
P11C-C/4L features quad server-class Intel Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.
TPM-M 2.0 ready
P11C-C/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.
Comprehensive IT infrastructure management
P11C-C/4L features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics -- even if the operating system is down or offline -- through a user-friendly, web-based graphical interface that works with all major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Enhanced serviceability
With its power button located on the front I/O panel, P11C-C/4L is designed to provide easier maintenance and deployment for diverse applications.
P11C-C/4L has a visible Q-Code/port 80 LED display for simple monitoring of the entire boot process, from power on through loading of the operating system.
Quick initialization guidance
P11C-C/4L provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
ASUS ProCool connector
ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 1151 (Socket H4) |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon® |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | DIMM |
| Memory channels | Dual-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Non-ECC |
|
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 2400,2666 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Storage controllers | |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 10 |
| Graphics | |
| Graphics card | AST2500 |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 6 |
| ATX Power connector (24-pin) |
|
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) |
|
| TPM connector |
|
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| LAN controller | Intel® I210-AT |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel C242 |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | Intel |
| Expansion slots | |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
| Number of M.2 (M) slots | 2 |
| Operational conditions | |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 10 - 35 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Packaging data | |
| Package weight Weight of the packaged product. | 1.3 kg |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 305 mm |
| Depth The distance from the front to the back of something. | 244 mm |
| Other features | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 760 g |
| SKU | 807097 |
| MPN | MBA-P11C-C4L |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Product Use | General |
