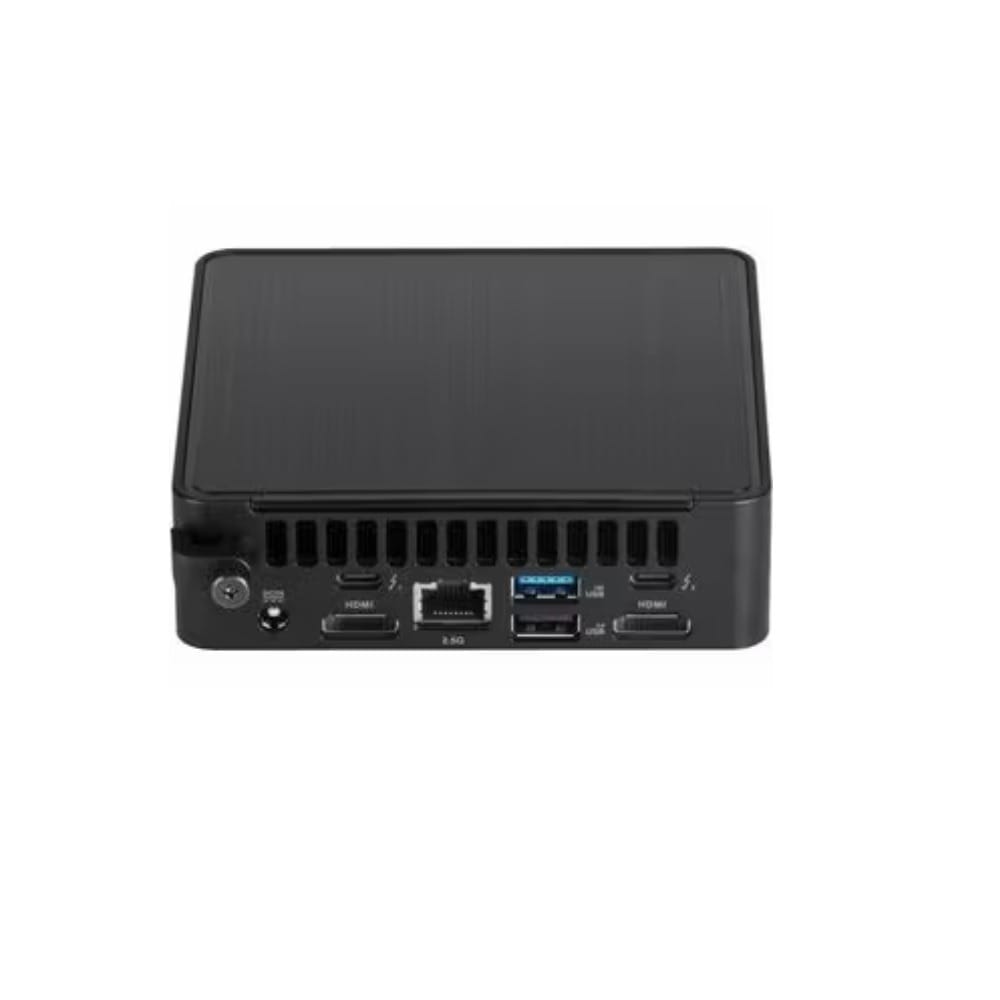

Asus NUC 14 Pro NUC14RVHU7 Barebone System - Mini PC - Intel Core Ultra 7 - Intel Chip - 96 GB DDR5 SDRAM DDR5-5600/PC5-44800 Maximum RAM Support - 2 Total Memory Slots - NVMe, Serial ATA Controller - Intel Arc GPU Graphic(s) - IEEE 802.11ax - Bluetooth 5.3 - Network (RJ-45) - 2 M.2 Interface(s) - 1 SATA Interface(s) - Processor Support (Core Ultra 7, Core Ultra 5, Core 3) - 2.5 Gigabit Ethernet - Windows 11, Linux Supported Operating System - 120 W
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model The model number for the processor in a computer. | 155H |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 16 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Built-in processor Whether or not a processor is built into the device. |
 |
| Processor cache | 24 MB |
| ECC supported by processor |
 |
| Memory | |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory The maximum internal memory which is available in the product. | 96 GB |
| Supported memory types Types of memory which can be used with the product. | DDR5-SDRAM |
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,M.2 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel Arc Graphics |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Network | |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product type The sub-category of the product. | Mini PC barebone |
| Power | |
| Power supply type The type of power supply which this product uses. | External AC adapter |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 120 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 117 mm |
| Depth The distance from the front to the back of something. | 112 mm |
| Height The measurement of the product from head to foot or from base to top. | 54 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 570 g |
| SKU | 777011 |
| MPN | RNUC14RVHU700004I |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| CPU Socket | N/A |
| Memory Type | DDR5 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Stock Availability | In Stock at Castle Hill |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
