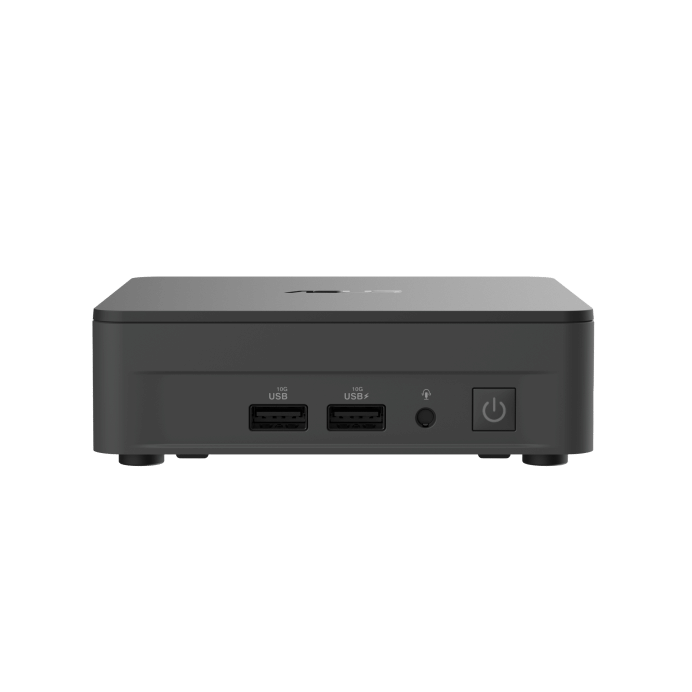

ASUS NUC 13 PRO,Arena Canyon - Slim Kit(L6),Raptor Lake-P RPL-P 28W (i5-1340P) - No Cord requires AC06C05AU
The Right Size for Modern Business
13th Generation Intel® Core i7/i5/i3 with integrated Intel® Iris® Xe Graphics or Intel® UHD Graphics, and Intel vPro® Technology for selected SKUs.
14 Processor Cores (6P+8E), 20 threads, 24MB Smart Cache, 35W TDP
For professional-grade performance, the 13th Gen Intel Core i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP
For Business, the fast memory up to 64GB dual-channel DDR4-3200 SODIMMs
Wired and wireless connections are lightning fast with up to a 2.5Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
Dual HDMI 2.1and Thunderbolt 4 ports give businesses flexibility to connect up to 4K extended displays
Qualified for 24x7 operation
| Name | Value |
|---|---|
| Card Reader | N/A |
| Colour | N/A |
| CPU & GPU | N/A |
| Dimensions | 117mm x 112mm x 36.81mm |
| Drive Bay | N/A |
| Ethernet | N/A |
| Expansion Slot | N/A |
| Form Factor | NUC 13 PRO |
| Front/Rear Ports | FRONT: 2 x USB 3.2 Gen2 Type A (1x Front Panel, 1x Front Panel Charging) *Side I/O: 1 x Kensington Lock (Left side of Chassis) + Cable Locking Arm 2 x USB 3.2 Gen2 Type A (1x Front Panel, 1x Front Panel Charging) *Side I/O: 1 x Kensington Lock (Left side of Chassis) + Cable Locking Arm, REAR: 2 x Thunderbolt 4 Type-C Ports 1 x USB 3.2 Gen 2 Type-A 2 x HDMI 2.1 (TMDS) ports 1 x RJ45 LAN Port 1 x DC-in" 2 x Thunderbolt 4 Type-C Ports 1 x USB 3.2 Gen 2 Type-A 2 x HDMI 2.1 (TMDS) ports 1 x RJ45 LAN Port 1 x DC-in |
| Graphics | Intel® Iris® Xe Graphics (Core i7 & i5) |
| Keyboard | N/A |
| LAN | 2.5G Ethernet, 10/100/1000/2500 Mbps |
| Memory | Support 2 x SO-DIMM DDR4 2400/2666/3200 MHz Support 8 GB and 16 GB technology up to 64 GB |
| Mouse / Trackpad | N/A |
| Operating System | No O/S |
| Optical Drive | No Optical Drive |
| Power Supply | No Cord - requires AC06C05AU |
| Processor | Intel® Core i5-1340P Processor (TDP28W) |
| Product Family | Arena Canyon |
| Storage | N/A |
| Storage Capacity | no HDD |
| Storage Type | 1 M.2 PCIe Gen4 M.2 22x80 (key type M) NVMe only 1 M.2 M.2 22x42 (key type B) SATA SSD, PCIe x1 or USB 3.2 expandability |
| Warranty | 3YR WARRANTY |
| Weight | 0.8KG |
| Wireless | Pre-Installed Intel® Wi-Fi 6E AX211, 2x2, and Bluetooth® v5.3 |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model The model number for the processor in a computer. | i5-1340P |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 12 |
| Processor threads | 16 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.6 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Processor cache | 12 MB |
| Memory | |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 3200 MHz |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Memory voltage The voltage (V) of the memory in the device. | 1.2 V |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | M.2 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 2 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel Iris Xe Graphics |
| Number of displays supported The number of displays that can be used with this product. | 4 |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Network | |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| LAN controller | Intel I226-V |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Serial port via internal header |
|
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | UCFF |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| On/off switch The button which is pressed to switch the device on or off. |
|
| LED indicators |
|
| VESA mounting |
|
| Product type The sub-category of the product. | Mini PC barebone |
| Performance | |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | UCFF |
| Number of processors supported The quantity of processors which can be used by the product. | 1 |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Power | |
| Power supply type The type of power supply which this product uses. | External AC adapter |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 117 mm |
| Depth The distance from the front to the back of something. | 112 mm |
| Height The measurement of the product from head to foot or from base to top. | 37 mm |
| SKU | 791330 |
| MPN | RNUC13ANKI500000I |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| CPU Socket | Soldered-down BGA |
| Memory Type | DDR4 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
