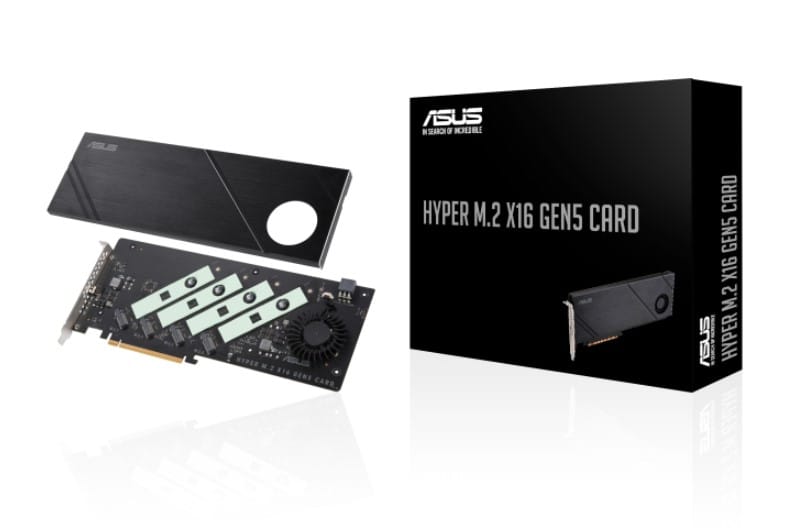

ASUS HYPER M.2 X16 GEN5 CARD (PCIe 5.0/4.0) Supports up to Ffour NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps
ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platforms
1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives
Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard s chassis fan header to allow the motherboard to control and regulate fan speed
Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers
1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives
Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard s chassis fan header to allow the motherboard to control and regulate fan speed
Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Output interface The socket (port) where the output connectors are connected. | M.2 |
| Expansion card standard | PCIe 5.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Design | |
| Internal The product is built in. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Purpose What the product is used for. | PC |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of expansion slots | 4 |
| LED indicators | Access |
| Easy to install |
|
| Features | |
| Data transfer rate (max) | 512 Gbit/s |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 290 mm |
| Depth The distance from the front to the back of something. | 122 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 773381 |
| MPN | HYPER M.2 X16 GEN 5 CARD |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.asus.com/ |
