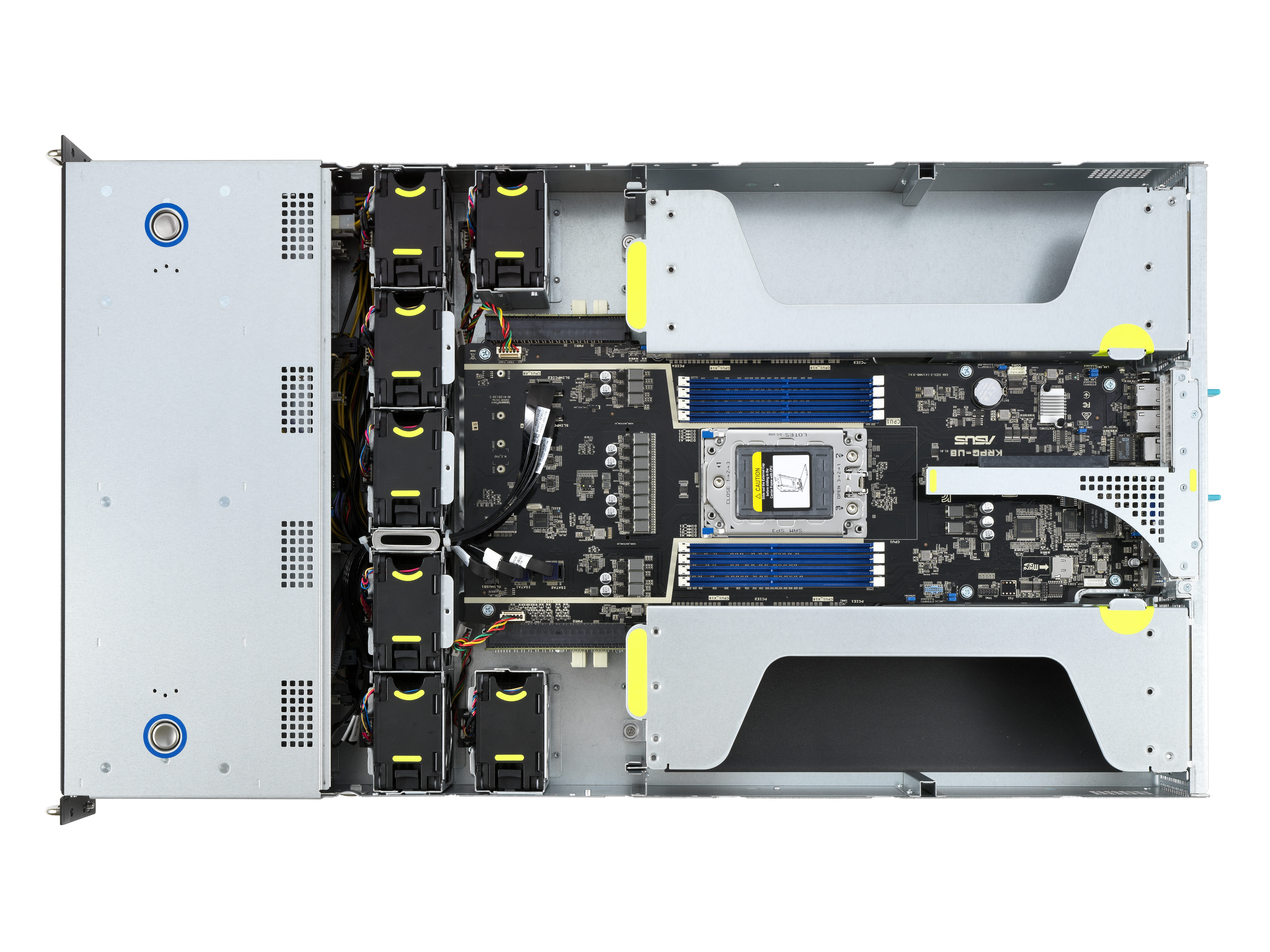

Asus ESC4000A-E10 2U LGA4094 Rackmount Server
Item No:
562373
MPN:
90SF01A1-M00760
$6,098.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ASUS ESC4000A-E10, Socket SP3, AMD, AMD, DDR4-SDRAM, 16GB, 32GB, 64GB, 128GB, 2048 GB
Powered by AMD EPYC 7002 series processors
The AMD EPYC 7002 processor features the world's first 7nm datacenter-design and a PCI Express 4.0-capable x86 server processor with up to 2X the performance and 4X the floating-point capability. With support for up to 64 cores, 128 threads, 8-channel DDR4 3200, 128 PCIe 4.0 lanes and up to 280 watts of max. thermal design power (TDP), this processor also includes memory and virtualization encryption features to ensure exceptional security.
PCIe 4.0 expansion
PCIe 4.0 delivers 16 GT/s bandwidth double the speed of PCIe 3.0 while offering lower power consumption, better lane scalability and backwards compatibility. ASUS ESC4000A-E10 features up to eleven PCIe 4.0 slots to support a diverse array of graphics, storage and networking applications, such as HBA/RAID, NIC and InfiniBand (IB) cards.
GPU and FPGA support
ESC4000A-E10 features a powerful GPU architecture that supports up to four double-slot or eight single-slot GPUs* in a 2U chassis, including NVIDIA A100, Tesla or Quadro , plus features NVIDIA NVLink Bridge to enable scaling of performance in order to meet the demands of AI and high-performance computing, and to securely run workloads in virtualization environments.
Flexible front panel design
ESC4000A-E10 features a flexible front panel design that allows for easy storage and network expansions and upgrades. The design offers easier accessibility of up to four NVMe SSD drives and an optional choice of OCP 3.0, a hyper M.2 adapter or HBA/RAID card via PCIe 4.0 slot for better performance and lower latency.
NVIDIA RTX server
ESC4000A-E10 is a NVIDIA RTX server validate system that deliver unprecedented performance at a fraction of the cost, space, and power requirements of traditional CPU-based solutions, from production rendering to scalable visualization systems or HPC, AI, ML, big data analytics, and at the edge deployment options.
Ultrafast connectivity for HPC applications
ESC4000A-E10 features a OCP 3.0 mezzanine card to deliver speeds of up to 200 Gbps for HPC applications that require high-bandwidth, low-latency network support for connecting multiple nodes and clusters.
Scalable storage design
To effectively manage the storage demands of growing amounts of data, ESC4000A-E10 has a dense chassis design that accommodates up to eight 3.5-inch or 2.5- inch drives, including up to four NVMe SSDs support. One onboard 22110-length M.2 SSD allows faster data transfer speeds for OS installation, and a hyper M.2 card is available to provide even greater expansion capability.
Performance Boost technology
ASUS servers feature exclusive Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for time-sensitive applications such as financial services or data center operations. In the BIOS you can choose from pre-configured server profiles optimized for specific workloads, maximizing overall performance and reducing server-configuration time.
Thermal control technology
ASUS features server thermal-control technologies to provide real-time server temperature monitoring, intelligent fan-curve adjustments, and continue delivering the value of optimized power-efficiency.
ASUS Thermal Radar 2.0
ASUS Thermal Radar 2.0 takes advantage of placing up to 56 ambient sensors on the front panel of a server as well as in components for temperature monitoring. It can perform intelligent fan-curve adjustments to fit the real-time server usage patterns, lowering fan power-consumption by up to 36% and reducing total cost of ownership ideal for data centers with extreme workloads.
Comprehensive IT infrastructure management
ESC4000A-E10 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics even if the operating system is down or offline through a user-friendly, web-based graphical interface that works with all major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations, and Mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
The AMD EPYC 7002 processor features the world's first 7nm datacenter-design and a PCI Express 4.0-capable x86 server processor with up to 2X the performance and 4X the floating-point capability. With support for up to 64 cores, 128 threads, 8-channel DDR4 3200, 128 PCIe 4.0 lanes and up to 280 watts of max. thermal design power (TDP), this processor also includes memory and virtualization encryption features to ensure exceptional security.
PCIe 4.0 expansion
PCIe 4.0 delivers 16 GT/s bandwidth double the speed of PCIe 3.0 while offering lower power consumption, better lane scalability and backwards compatibility. ASUS ESC4000A-E10 features up to eleven PCIe 4.0 slots to support a diverse array of graphics, storage and networking applications, such as HBA/RAID, NIC and InfiniBand (IB) cards.
GPU and FPGA support
ESC4000A-E10 features a powerful GPU architecture that supports up to four double-slot or eight single-slot GPUs* in a 2U chassis, including NVIDIA A100, Tesla or Quadro , plus features NVIDIA NVLink Bridge to enable scaling of performance in order to meet the demands of AI and high-performance computing, and to securely run workloads in virtualization environments.
Flexible front panel design
ESC4000A-E10 features a flexible front panel design that allows for easy storage and network expansions and upgrades. The design offers easier accessibility of up to four NVMe SSD drives and an optional choice of OCP 3.0, a hyper M.2 adapter or HBA/RAID card via PCIe 4.0 slot for better performance and lower latency.
NVIDIA RTX server
ESC4000A-E10 is a NVIDIA RTX server validate system that deliver unprecedented performance at a fraction of the cost, space, and power requirements of traditional CPU-based solutions, from production rendering to scalable visualization systems or HPC, AI, ML, big data analytics, and at the edge deployment options.
Ultrafast connectivity for HPC applications
ESC4000A-E10 features a OCP 3.0 mezzanine card to deliver speeds of up to 200 Gbps for HPC applications that require high-bandwidth, low-latency network support for connecting multiple nodes and clusters.
Scalable storage design
To effectively manage the storage demands of growing amounts of data, ESC4000A-E10 has a dense chassis design that accommodates up to eight 3.5-inch or 2.5- inch drives, including up to four NVMe SSDs support. One onboard 22110-length M.2 SSD allows faster data transfer speeds for OS installation, and a hyper M.2 card is available to provide even greater expansion capability.
Performance Boost technology
ASUS servers feature exclusive Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for time-sensitive applications such as financial services or data center operations. In the BIOS you can choose from pre-configured server profiles optimized for specific workloads, maximizing overall performance and reducing server-configuration time.
Thermal control technology
ASUS features server thermal-control technologies to provide real-time server temperature monitoring, intelligent fan-curve adjustments, and continue delivering the value of optimized power-efficiency.
ASUS Thermal Radar 2.0
ASUS Thermal Radar 2.0 takes advantage of placing up to 56 ambient sensors on the front panel of a server as well as in components for temperature monitoring. It can perform intelligent fan-curve adjustments to fit the real-time server usage patterns, lowering fan power-consumption by up to 36% and reducing total cost of ownership ideal for data centers with extreme workloads.
Comprehensive IT infrastructure management
ESC4000A-E10 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics even if the operating system is down or offline through a user-friendly, web-based graphical interface that works with all major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations, and Mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
| Processor | |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | Socket SP3 |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | AMD |
| Memory | |
| Number of DIMM slots The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share. | 8 |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory The maximum internal memory which is available in the product. | 2048 GB |
| Storage | |
| Hot-swap HDD bays Hot-swap hard drives are drives that can be removed and replaced during operation. Hot-swap hard drives are placed into hot-swap hard drive bays inside computers. |
 |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Expansion slots | |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 4 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 2200 W |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 800 mm |
| Depth The distance from the front to the back of something. | 440 mm |
| Height The measurement of the product from head to foot or from base to top. | 88.9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 34 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 44 kg |
| SKU | 562373 |
| MPN | 90SF01A1-M00760 |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Product Use | General |
