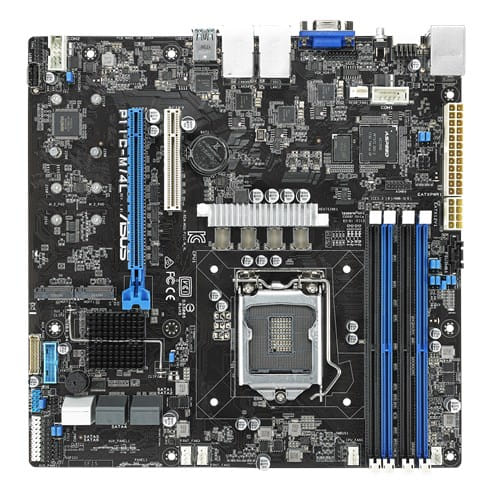

ASUS P11C-M/4L Workstation Motherboard, LGA1151, E-2200, mATX, 4 x DIMM, Dual M.2 , TPM, 6 x SATA, USB 3.1 , 4 x Gbe
Powered by the Intel Xeon E platform
95W CPU and up to 128GB memory support (4 DIMMs)
Rack-optimized design maximizes cooling for excellent thermal efficiency
Flexible expandability with 6 native SATA HDDs and two PCIe Gen3 slots
Quad Intel I210AT Gigabit Ethernet with teaming support
Dual M.2 for up to 32Gbps performance and data redundancy
TPM2.0 Ready secures store keys, digital certificates, passwords and data
Complete server management with ASUS Control Center
Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics
95W CPU and up to 128GB memory support (4 DIMMs)
Rack-optimized design maximizes cooling for excellent thermal efficiency
Flexible expandability with 6 native SATA HDDs and two PCIe Gen3 slots
Quad Intel I210AT Gigabit Ethernet with teaming support
Dual M.2 for up to 32Gbps performance and data redundancy
TPM2.0 Ready secures store keys, digital certificates, passwords and data
Complete server management with ASUS Control Center
Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 1151 (Socket H4) |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon® |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | DIMM |
| Memory channels | Dual-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Non-ECC |
|
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 2400,2666 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Graphics | |
| Graphics card | AST2500 |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 6 |
| ATX Power connector (24-pin) |
|
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) |
|
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| LAN controller | Intel® I210-AT |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel C242 |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | micro ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | Intel |
| Expansion slots | |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
| Operational conditions | |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 10 - 35 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 244 mm |
| Depth The distance from the front to the back of something. | 244 mm |
| SKU | 357595 |
| MPN | P11C-M-4L |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Product Use | General |
