Asus Chromebox5 i7-1260P, 8GB RAM, 128GB SSD, ChromeOS
Payment options
- Unavailable for shipping
- This product is not currently available for purchase
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Chromebox5 - Corei7-1260P, 8GB DDR4, 128GB PCIE, 4xUSB3.2,1 x USB-C,2 x HDMI,1xRJ45,WiFi 6E,BT5.2,NO KBM;3YROSS
Not Compatible with Google Meets
Simple, Speedy and Secure
- Lightning-fast Thunderbolt 4
- Support quad 4K displays
- Built-in 15W wireless charger
- IT management is easier by Chrome Enterprise
Ready for Any Task
ASUS Chromebox 5 offers outstanding performance and instantaneous response for incredible productivity. It s powered by up to a 12th Gen Intel® Core i7 processor that delivers blistering processing speeds to cater to the most demanding tasks. And with up to 32 GB DDR4 memory, ASUS Chromebox 5 enables easy multitasking without slowdowns.
In addition, Intel Iris® Xe graphics deliver unmatched processing power for stunning, supersmooth visuals. A PCIe® Gen 4 x4 M.2 SSD provides ultrafast data transfers and app launches.
Overall, ASUS Chromebox 5 offers an exceptional user experience that combines superior performance and cutting-edge features for next-level productivity.
Concealed Wireless Charger
For added convenience, ASUS Chromebox 5 has a built-in WPC-certified Qi wireless charger that provides up to 15-watt output. Plus, a Foreign Object Detection (FOD) feature ensures the charger only works when a compatible device is detected, preventing overheating or damage to a non-compatible device.
Quad-display with True 4K UHD
ASUS Chromebox 5 is able to support up to four 4K displays, allowing users to extend their workspace for improved productivity
Lightning-fast Thunderbolt 4
Thunderbolt 4 connectivity offers users unrivaled versatility with ultrafast speeds. It supports USB-C® Power Delivery and provides data transfer speeds of up to 40 Gbps when connected to high-performance peripherals. It can be used in tandem with the included two HDMI ports and DisplayPort to support up to four displays.
Faster, More Stable Connections
ASUS Chromebox 5 offers both 2.5 Gb Ethernet and dual-band WiFi 6E (802.11ax), with the latter featuring a new 6 GHz band for strong, stable signals and superfast speeds to load online content in the blink of an eye.
Enterprise-grade Protection
To protect vital business and personal data, ASUS Chromebox 5 offers comprehensive business-grade security " ranging from integrated hardware and firmware to software and physical protection.
Military-grade Reliability
To ensure maximum reliability and durability, ASUS Chromebox 5 has been tested through military standard MIL-STD-810H.
| Name | Value |
|---|---|
| Card Reader | Micro SD Card reader |
| Colour | N/A |
| CPU & GPU | N/A |
| Dimensions | 166.5 x 165.8 x 45.9 mm |
| Drive Bay | N/A |
| Ethernet | N/A |
| Expansion Slot | N/A |
| Form Factor | Chromebox5 |

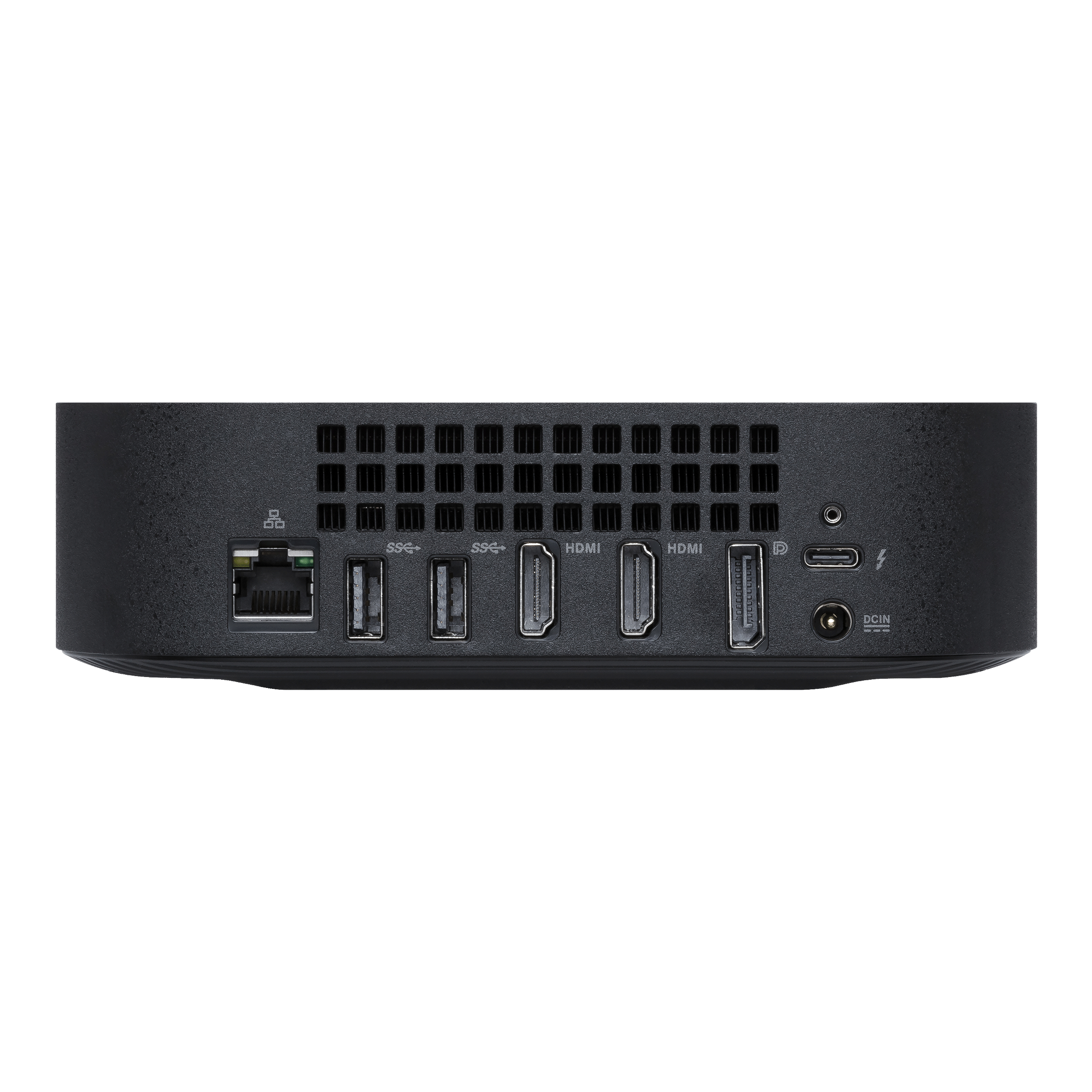

| Front/Rear Ports | Side(Front) I/O 2 x USB 3.2 Gen2 (support BC1.2), 1 x Audio Jack (Mic/Headphone Jack), 1 x Micro SD card,1 x K-Lock(Side) Back I/O 1 x Thunderbolt 4, 2 x USB 3.2 Gen1 Type-A ,2 x HDMI, 1 x DisplayPort 1.4, 1 x LAN (RJ45) Port , 1 x DC-in, 1 x Recovery button(side) |
| Graphics | Intel® Iris® Xe Graphics or Intel® UHD Graphics for 12th Gen Intel® Processors |
| Keyboard | N/A |
| LAN | 2.5G LAN, Realtek® RTL8125BG-CG |
| Memory | DRAM MODULE(DDR4)/3200/8G |
| Mouse / Trackpad | N/A |
| Operating System | Chrome OS |
| Optical Drive | No Optical Drive |
| Power Supply | 150W |
| Processor | Intel® Core i7-1260P Processor 2.1GHz (18M Cache, up to 4.7GHz) |
| Product Family | CHROMEBOX5 |
| Storage | N/A |
| Storage Capacity | 128GB |
| Storage Type | M.2 NVMe PCIe® 3.0 SSD |
| Warranty | 3YR OSS |
| Weight | 0.8KG |
| Wireless | Wi-Fi 6E, Bluetooth 5.2, 2*2 |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model The model number for the processor in a computer. | i7-1260P |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 12 |
| Processor threads | 16 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.7 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Processor base power | 28 W |
| Maximum turbo power | 64 W |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4-SDRAM |
| Storage | |
| Total storage capacity The total amount of data that can be stored on the device. | 128 GB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | SSD |
| Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. |
 |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity The Solid State Drive's data storage capacity. | 128 GB |
| SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware. | PCI Express 3.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Graphics | |
| Discrete graphics card |
|
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| On-board GPU manufacturer | Intel |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | 2x2 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Combo headphone/mic port |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Mini PC |
| Colour name | Black |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Performance | |
| Product type The sub-category of the product. | Mini PC |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | ChromeOS |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 150 W |
| Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/WiFi/RF/VCCI |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 166.5 mm |
| Depth The distance from the front to the back of something. | 165.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 45.9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 800 g |
| Packaging content | |
| Display included This product includes a display. |
|
| SKU | 779018 |
| MPN | CHROMEBOX5-i7M8S128R2 |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Processor | Intel Core i7-1260P |
| Operating System | ChromeOS |
| Graphics Card | Intel UHD Graphics |
| RAM | 8GB DDR4 |
| Desktop Type | Branded Computers |
| Product Use | General |
| Warranty Period | 3 Years Onsite Warranty |
| Warranty Contact | https://www.asus.com/ |
