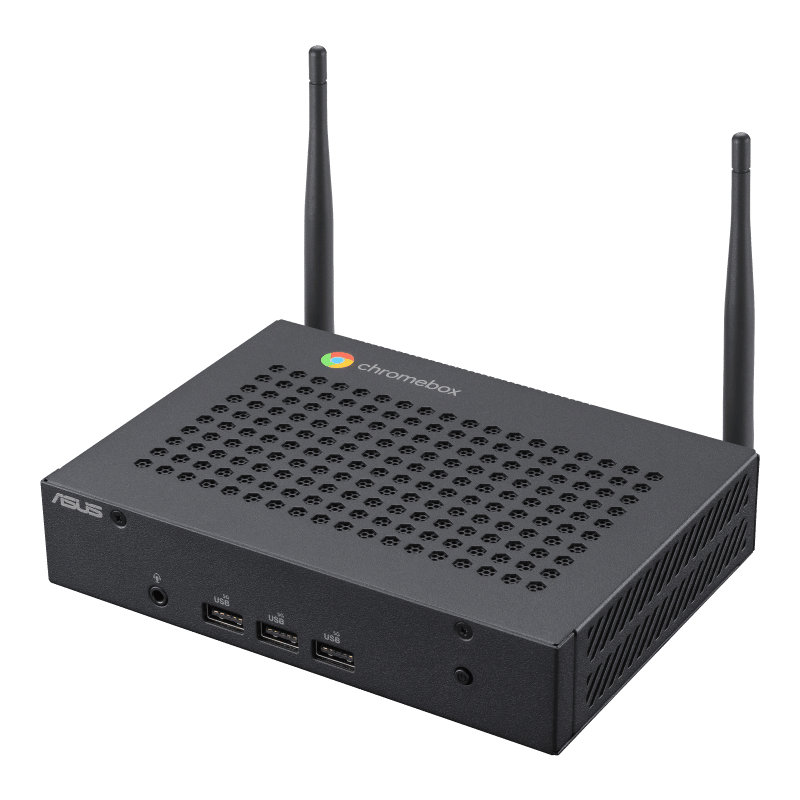

Asus CF40 Fanless Chromebox N4500, 8GB RAM, 64GB eMMC, ChromeOS
Payment options
- Unavailable for shipping
- This product is not currently available for purchase
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
CF40 Fanless Chromebox - Celeron N4500, 8GB, 64GB eMMC, 5xUSB-A, 1xUSB-C, 2Xhdmi 4k, ChromeOS, 3YR OSS
Not Compatible with Google Meets
ASUS Fanless Chromebox CF40 supports Dual 4K Display and WiFi 6 connectivity to build an efficient digital signage or kiosk.
All-new ASUS Fanless Chromebox CF40 features Intel® Celeron® processors N4500.
A fanless design ensure stable thermal performance anywhere.
Intel® WiFi 6 provides ultrafast network speeds.
USB-C® 3.2 Gen 1 ports enable quick data transfers, and USB Type-C also supports power delivery and DisplayPort connections.
Automatic software and security updates protect the system from viruses, malware and other security issues.
Built-in Google Play support enables access to a rich selection of Android apps for productivity.
Lockable VESA mount securely attaches to surfaces and offers expanded usage scenarios.
Built for Diverse Commercial Applications
ASUS and Chrome Enterprise Solutions ASUS Chromebox Enterprise devices combine the end-user bene ts of Chromeboxes with the business capabilities of Chrome Enterprise for IT to secure, orchestrate and power the cloud workforce, and for further empowering your enterprise. Secure and intelligent hardware solutions for working remote. Get started immediately out of the box with zero-touch enrollment.
Connectivity
ASUS Fanless Chromebox CF40 features an Intel® Celeron® processor for faster, smoother and more energy-efficient performance. The fanless aluminum chassis has multiple metal fins to efficiently dissipate heat while operating quietly and to reduce maintenance needs in commercial environments. ASUS Fanless Chromebox CF40 also supports up to two 4K displays and comes equipped with versatile USB-C® 3.2 Gen 1 and USB 3.2 Gen 1 Type-A ports for fast data transfers, and USB-C also supports power delivery and DisplayPort connections. Offering easy access to a rich selection of Android apps available on Google Play, the device enables use of productivity-boosting apps with the power of a mini PC.
Built-in security features
ASUS Fanless Chromebox CF40 was designed with security in mind. Automatic updates provide robust protection against viruses, malware and other security issues, so there s no need to buy and install additional security software.
| Name | Value |
|---|---|
| Card Reader | N/A |
| Colour | N/A |
| CPU & GPU | N/A |
| Dimensions | 166.2 x 119.7 x 33.9 mm |
| Drive Bay | N/A |
| Ethernet | N/A |
| Expansion Slot | N/A |
| Form Factor | Chromebox |
| Front/Rear Ports | Front: "3 x USB 3.2 Gen1 Type-A 1 x Audio Jack" REAR: "1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD input) 2 x USB 3.2 Gen1 Type-A 2 x HDMI 2.1 (Up to 4K@60Hz) 1 x DisplayPort 1.4 1 x RJ45 LAN 1 x DC-in" |
| Graphics | Integrated - Intel® UHD Graphics |
| Keyboard | N/A |
| LAN | 10/100/1000 Mbps,1G LAN |
| Memory | DDR4 8G |
| Mouse / Trackpad | N/A |
| Operating System | Chrome OS |
| Optical Drive | N/A |
| Power Supply | 19Vdc, 3.42A, 65W Power Adapter |
| Processor | Intel® Celeron® N4500 Processor, 10W TDP |
| Product Family | CF40 Fanless |
| Storage | N/A |
| Storage Capacity | 64G eMMC |
| Storage Type | eMMC |
| Warranty | 3YR OSS |
| Weight | 0.8KG |
| Wireless | Intel® Wi-Fi 6 (Gig+), Bluetooth® 5.0 |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Celeron® N |
| Processor model The model number for the processor in a computer. | N4500 |
| Processor threads | 2 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 2.8 GHz |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.1 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | LPDDR4x-SDRAM |
| Storage | |
| Total storage capacity The total amount of data that can be stored on the device. | 64 GB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | eMMC |
| Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. |
 |
| Graphics | |
| Discrete graphics card |
|
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
 |
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel® UHD Graphics |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6 (802.11ax) |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | 2x2 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Combo headphone/mic port |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | SFF |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Performance | |
| Product type The sub-category of the product. | Mini PC |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | ChromeOS |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 65 W |
| Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/WiFi/RF/VCCI |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 166.2 mm |
| Depth The distance from the front to the back of something. | 119.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 33.9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 800 g |
| Packaging content | |
| Display included This product includes a display. |
|
| SKU | 779012 |
| MPN | CF40-N4500M8S64 |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Processor | Intel Celeron N4500 |
| Operating System | ChromeOS |
| Graphics Card | Intel UHD Graphics |
| RAM | 8GB RAM |
| Desktop Type | Branded Computers |
| Product Use | General |
| Warranty Period | 3 Years Onsite Warranty |
| Warranty Contact | https://www.asus.com/ |
