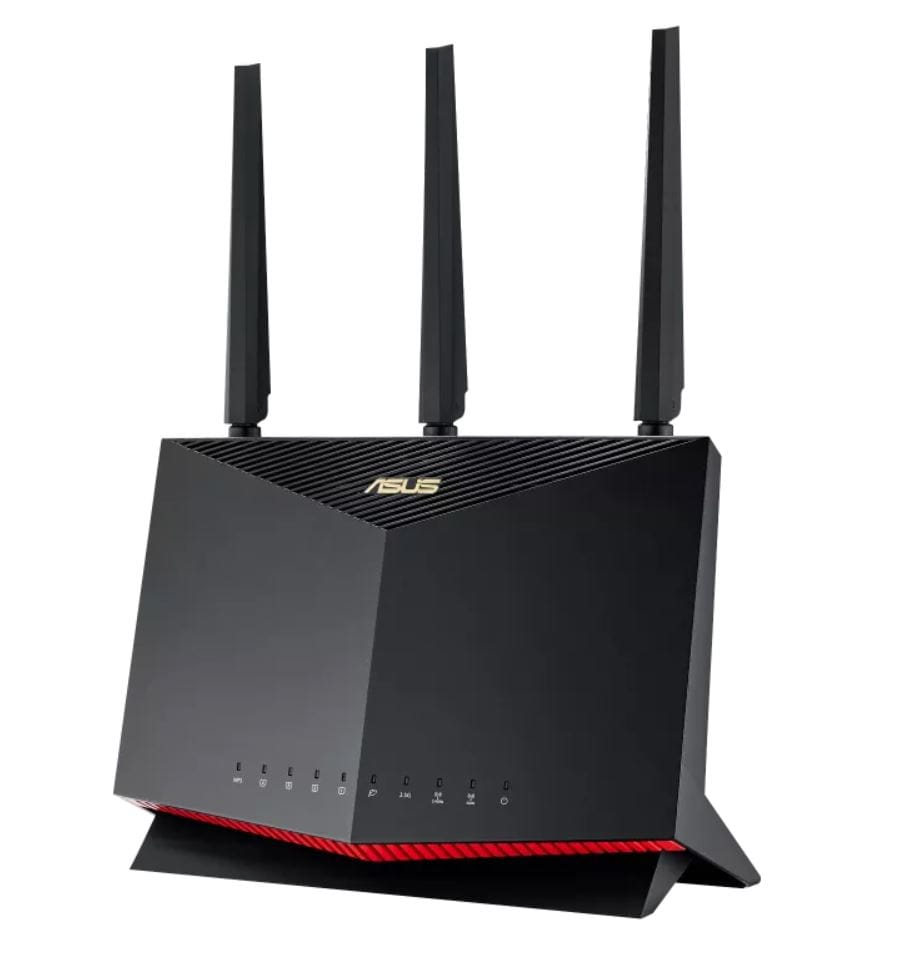

Asus RT-AX86U Pro AX5700 Dual Band WiFi 6 Gaming Extendable Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	4804 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding
Port triggering
Dynamic DNS (DDNS)
Static route
Number of guest networks (2.4 GHz)	3
Number of guest networks (5 GHz)	3
Support Samba (storage)
Built-in FTP server
VPN server	IPSec, OVPN, PPTP, WireGuard
Media server
VPN Passthrough
VPN support	IPSec, OVPN, PPTP, L2TP, WireGuard

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	6
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Bandwidth control
Quality of Service (QoS) support
Wake-on-LAN ready
Reset button
Intelligent Mesh technology
MU-MIMO technology

Security
Firewall
Guest access
Parental control
Filtering
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
IP address filtering
URL filtering
System event log
DMZ support
Network address translation (NAT)

Protocols

DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Indication light
LED indicators	LAN, Power, WAN, WPS
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Tabletop router

Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Antenna included An antenna (aerial) is built into the product or comes with it.
Warranty card
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Antenna
Antenna design	Internal & external
Antennas quantity	4

Features
Built-in processor Whether or not a processor is built into the device.
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	2000 MHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4

Power
Power source type What the power source is.	AC
Output voltage	19 V
Output current	2.37 A

Weight & dimensions
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	814.5 g
