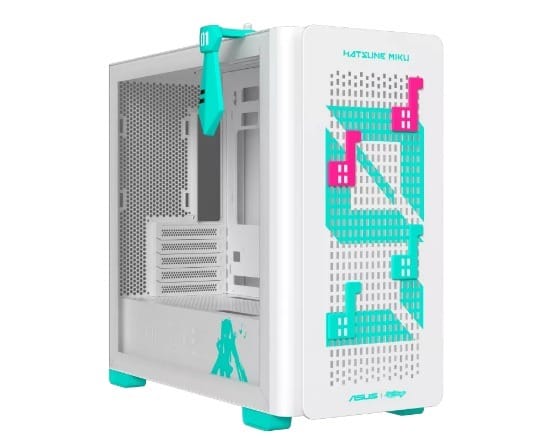

ASUS A23 Hatsune Miku Edition ATX case offers support for hidden-connector motherboards, 360mm radiators and 380mm graphics cards; Motherboard Support: Micro-ATX, Mini-ITX; Dimensions: 479 x 220 x 450 mm
| Design | |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Turquoise, White |
| Supported motherboard form factors Design of the supported motherboards. | micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 5 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Cable management Description of improved cable management |
|
| On/off button |
|
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 21 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability |
|
| Front radiator sizes supported | 140,240,360,120,280 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 140,240,360,120,280 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 220 mm |
| Depth The distance from the front to the back of something. | 450 mm |
| Height The measurement of the product from head to foot or from base to top. | 479 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.8 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 290 mm |
| Package depth The distance from the front to the back of the packaging. | 566 mm |
| Package height The distance from the top to the bottom of the packaging. | 493 mm |
| Package weight Weight of the packaged product. | 10.1 kg |
| SKU | 828693 |
| MPN | A23 ASUS PRIME MIKU EDITION |
| Brand | Asus |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Case Colour | White |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.asus.com/ |
