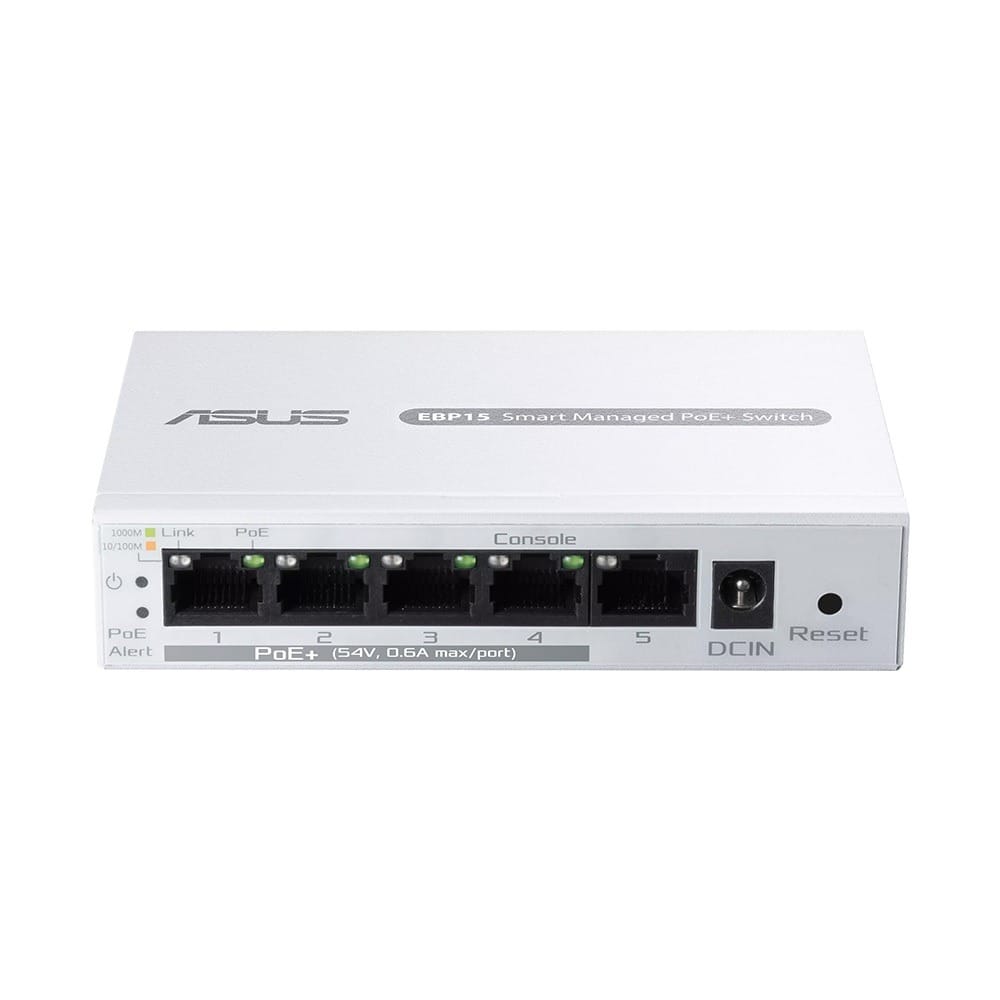

Asus 5-Port Gbe POE+ GbE(4) 60W Switch - White

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	5
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation

Data transmission
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	8000 entries
Packet buffer memory	4 MB

Security
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SSL/TLS
Loop protection

Protocols
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4

Design
Product colour The colour e.g. red, blue, green, black, white.	White
LED indicators	Activity, Link, PoE, Power, Speed

Performance
Firmware upgradeable

Power
Power source What is providing power for the product e.g. mains electricity.	DC
Power supply included There is a power supply with this product.
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	54 V
Input current	1.25 A
Input voltage The voltage (V) which is required to power the product.	54 V

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	60 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	121 mm
Depth The distance from the front to the back of something.	75 mm
Height The measurement of the product from head to foot or from base to top.	26 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	248 g

Packaging content
Cables included	LAN (RJ-45)
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Packaging data
AC adapter included
Package width The distance from one side of the packaging to the other.	231 mm
Package depth The distance from the front to the back of the packaging.	211 mm
Package height The distance from the top to the bottom of the packaging.	97 mm
Package weight Weight of the packaged product.	1.1 kg
