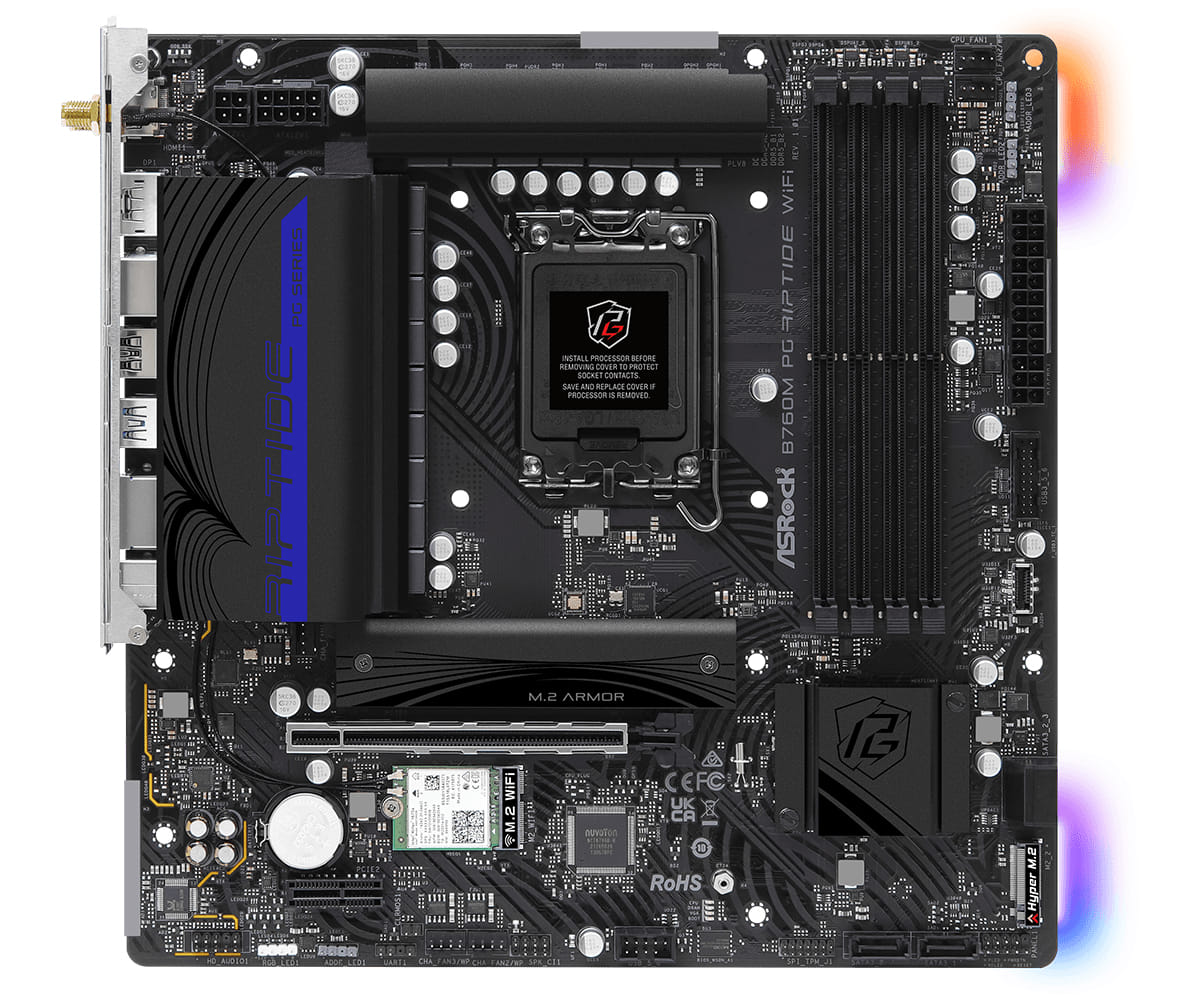

Asrock B760M PG RIPTIDE WIFI, Intel, LGA 1700, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, DDR5-SDRAM, 192 GB, DIMM
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 1700 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 192 GB |
| Unbuffered memory |
 |
| Storage controllers | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 2 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 4 |
| Front panel audio connector |
|
| ATX Power connector (24-pin) |
|
| CPU fan connector |
|
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 1 |
| EPS power connector (8-pin) |
|
| TPM connector |
|
| Rear panel I/O ports | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.4 |
| Line-in |
|
| Microphone in The socket where a microphone is connected to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | micro ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | Intel |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64, Windows 11 x64 |
| Certification | - FCC, CE - ErP/EuP ready |
| Expansion slots | |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 244 mm |
| Depth The distance from the front to the back of something. | 244 mm |
| SKU | 744704 |
| MPN | B760M PG RIPTIDE WIFI |
| Brand | AsRock |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.asrock.com/ |
