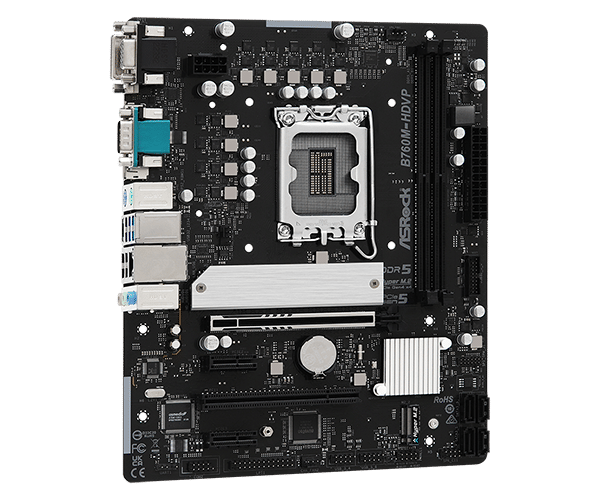

ASROCK Intel B760M HDVP Motherboard, HDMI, DisplayPort, Ethernet
B760M HDVP
- Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
- 7 1 1 Power Phase
- Supports DDR5 7000 MHz (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x1, 1 PCI
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 DVI D, 1 D Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 2 Hyper M.2 (PCIe Gen4 x4), 4 SATA3
- 2 USB 3.2 Gen2 Type A (Rear), 4 USB 3.2 Gen1 Type A (2 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
| Name | Value |
|---|---|
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Chipset | Intel B760 |
| Form Factor | Micro ATX Form Factor: 24.4 cm x 19.8 cm |
| I/O Connectors | 1 x PS/2 Keyboard Port 1 x PS/2 Mouse Port 1 x Serial Port: COM1 1 x D Sub Port 1 x DVI D Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen2 Type A Ports 2 x USB 3.2 Gen1 Type A Ports 2 x USB 2.0 Ports 1 x RJ 45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Integrated CPU Graphics | Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DVI D, supports max. resolution up to Full HD (1920x1200) 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x D Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| Memory/Type/Bus/Max. | 2 x DDR5 DIMM Slots, Supports DDR5 non ECC, un buffered memory up to 7000 (OC), Max. capacity of system memory: 96GB |
| PCI Slots | CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* ASMedia ASM1083: 1 x PCI Slot |
| Processor Support | Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| RAM Type/Bus/Max. | 2 x DDR5 DIMM Slots, Supports DDR5 non ECC, un buffered memory up to 7000 (OC), Max. capacity of system memory: 96GB |
| Socket | LGA1700 |
| Storage Interface | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors |
| Warranty | 3 Years |
| Weight |
| SKU | 723746 |
| MPN | B760M-HDVP |
| Brand | AsRock |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.asrock.com/ |
