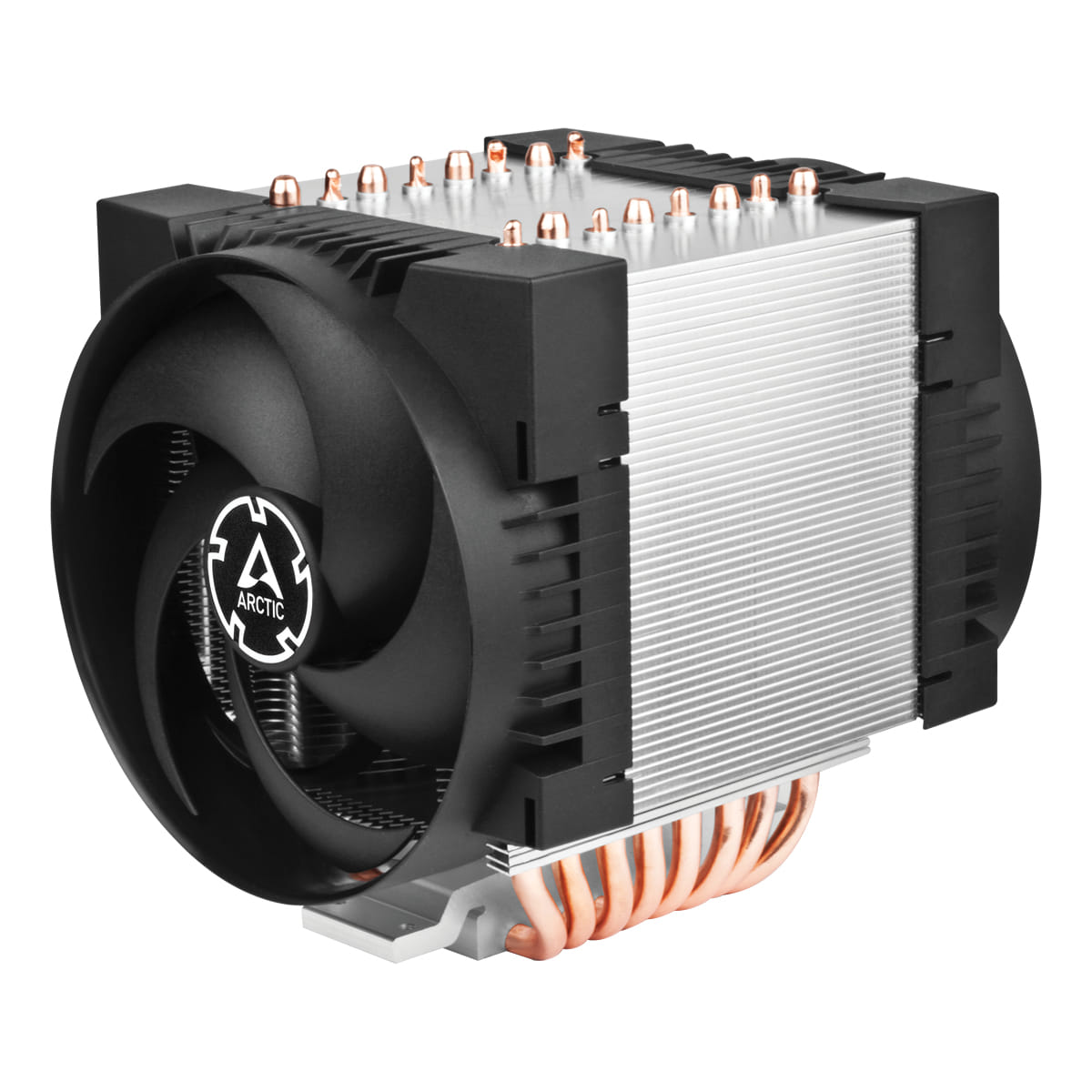

ARCTIC Freezer 4U-M - Multicompatible 4U Single Tower CPU Cooler, Air cooler, 12 cm, 400 RPM, 2300 RPM, 71.9 cfm, 122.16 m3/h
Versatile Multi-Compatible Server Cooler
The Freezer 4U-M stands as a multi-compatible server cooler, boasting an expansive contact surface and an enhanced mounting mechanism. It now offers compatibility with a wide range of Intel and AMD server processors, including Intel s LGA 4189 and LGA 4677, as well as AMD s SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets. Remarkably, despite its impressive cooling capabilities, the Freezer 4U consumes a mere 2.88 watts, ensuring exceptional efficiency in cooling even the most powerful processors with up to 64 cores and a TDP of up to 350 watts.
RAM Compatibility and Clearance
The Freezer 4U offers a spacious 53 mm of RAM clearance, allowing for the use of memory sticks with moderate heatsinks. This clearance allows efficient airflow and enables compatibility with different RAM variants.
Compact Design and Dual Socket Compatibility
With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.
Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M s high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.
Designed for continuous operation
Both fans of the Freezer 4U-M are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.
Premium Thermal Paste Included
The Freezer 4U-M comes with MX-6 thermal paste. ARCTIC s Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
The Freezer 4U-M stands as a multi-compatible server cooler, boasting an expansive contact surface and an enhanced mounting mechanism. It now offers compatibility with a wide range of Intel and AMD server processors, including Intel s LGA 4189 and LGA 4677, as well as AMD s SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets. Remarkably, despite its impressive cooling capabilities, the Freezer 4U consumes a mere 2.88 watts, ensuring exceptional efficiency in cooling even the most powerful processors with up to 64 cores and a TDP of up to 350 watts.
RAM Compatibility and Clearance
The Freezer 4U offers a spacious 53 mm of RAM clearance, allowing for the use of memory sticks with moderate heatsinks. This clearance allows efficient airflow and enables compatibility with different RAM variants.
Compact Design and Dual Socket Compatibility
With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.
Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M s high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.
Designed for continuous operation
Both fans of the Freezer 4U-M are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.
Premium Thermal Paste Included
The Freezer 4U-M comes with MX-6 thermal paste. ARCTIC s Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Air cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 4189, LGA 4677 (Socket E), Socket SP3, Socket TR4, Socket sTR4, Socket sTRX4, Socket sWRX8 |
| Rotational speed (min) | 400 RPM |
| Rotational speed (max) | 2300 RPM |
| Maximum airflow | 71.9 cfm |
| Airflow | 122.16 m³/h |
| Maximum air pressure | 3.3 mmH2O |
| Fan diameter 2 | 12 cm |
| Fan 2 rotational speed (min) | 400 RPM |
| Fan 2 rotational speed (max) | 2300 RPM |
| Fan 2 maximum airflow | 71.9 cfm |
| Fan 2 maximum air pressure | 3.3 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Dual ball bearing |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium, Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium, Plastic |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Number of fins | 57 |
| Fins material | Aluminium |
| Number of heat pipes | 8 |
| Fan connector | 4-pin + 4-pin |
| Rack capacity The spase that device fill in rack. | 4U |
| Power | |
| Fan voltage | 12 V |
| Fan current | 0.12 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 156 mm |
| Depth The distance from the front to the back of something. | 124 mm |
| Height The measurement of the product from head to foot or from base to top. | 145 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.27 kg |
| Heat pipes diameter | 6 mm |
| Cable length How long the cable is. | 0.2 m |
| Package width The distance from one side of the packaging to the other. | 160 mm |
| Package depth The distance from the front to the back of the packaging. | 211 mm |
| Package height The distance from the top to the bottom of the packaging. | 141 mm |
| Package weight Weight of the packaged product. | 1.55 kg |
| Technical details | |
| Compliance certificates | CE |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Screws included |
|
| Other features | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Hong Kong |
| SKU | 759770 |
| MPN | ACFRE00133A |
| Brand | Arctic Cooling |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.arctic.de/ |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
