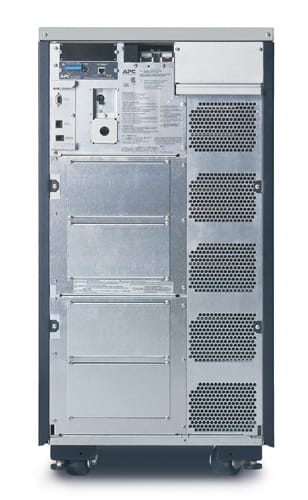

APC Symmetra LX 8kVA Scalable to 16kVA N 1 UPS
Payment options
- Unavailable for shipping
- This product is not currently available for purchase
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Includes: CD with software, Documentation CD, Installation Guide, User Manual, Web/SNMP Management Card
General Features:
Audible Alarms,
Automatic internal bypass,
Automatic restart of loads after UPS shutdown,
Automatic self test,
Battery modules connected in parallel,
Cold start capable,
Configurable for N 1 internal redundancy,
Disconnected battery notification,
Field replaceable power distribution panel,
Frequency and voltage regulation,
Generator Compatible,
Hot swappable batteries,
Hot swappable intelligence modules,
Hot swappable power modules,
InfraStruXure Manager Compatible,
Input Power Factor Correction,
Intelligent Battery Management,
LCD display,
Manageable external batteries,
Modular design,
Network manageable,
Plug and Play external batteries,
Power conditioning,
Power Modules connected in parallel,
Predictive failure notification,
Programmable Frequency,
Rack/Tower Convertible,
Redundant Intelligence Modules,
Removable input/output wiring tray,
Resettable circuit breakers,
Safety agency approved,
Scalable Power Capacity,
Scalable runtime,
Shippable with modules installed,
SmartSlot,
User replaceable batteries,
User replaceable intelligence modules,
User replaceable power modules.
| Features | |
| Output power capacity The maximum power that the device can produce. | 8 kVA |
| Output power The power that the device can produce. | 5600 W |
| Emergency Power Off (EPO) |
 |
| Battery | |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 7.5 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 20.2 min |
| Replacement battery cartridge | SYBT5 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 220 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| I/O ports An interface on a device to which you can connect another device. | Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619 |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | DB-9 RS-232, Smart-Slot |
| Output connections | (1) Hard Wire 3-wire (H N + G) |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 480 x 730 x 940 mm |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
| SKU | 726443 |
| MPN | SYA8K16I |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
