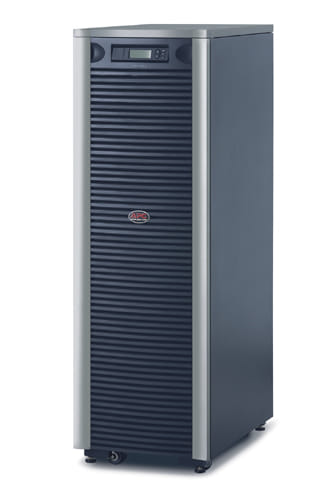

APC Symmetra LX 16kVA Scalable to 16kVA UPS
Item No:
563787
MPN:
SYA16K16IXR
$42,490.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
APC Symmetra LX 16kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V, 16 kVA, 11200 W, 24.7 min, 55.4 min, SYBT5, C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE
Industry's most space-optimized modular UPS solutions
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
| Features | |
| Output power capacity The maximum power that the device can produce. | 16 kVA |
| Output power The power that the device can produce. | 11200 W |
| Emergency Power Off (EPO) |
 |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Battery | |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 24.7 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 55.4 min |
| Replacement battery cartridge | SYBT5 |
| Design | |
| Compatibility The other products, software and hardware this product can be used with. | C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 503.6 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 535.5 kg |
| Other features | |
| I/O ports An interface on a device to which you can connect another device. | (1) Hard Wire 3-wire (H N + G) Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | Lead-Acid |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | DB-9 RS-232,Smart-Slot |
| Output connections | (1) Hard Wire 3-wire (H N + G) |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 483 x 726 x 1516 mm |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Output voltage note | 220: 230, 240 |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230-400 V |
| Package dimensions (WxDxH) | 599 x 997 x 1880 mm |
| SKU | 563787 |
| MPN | SYA16K16IXR |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
