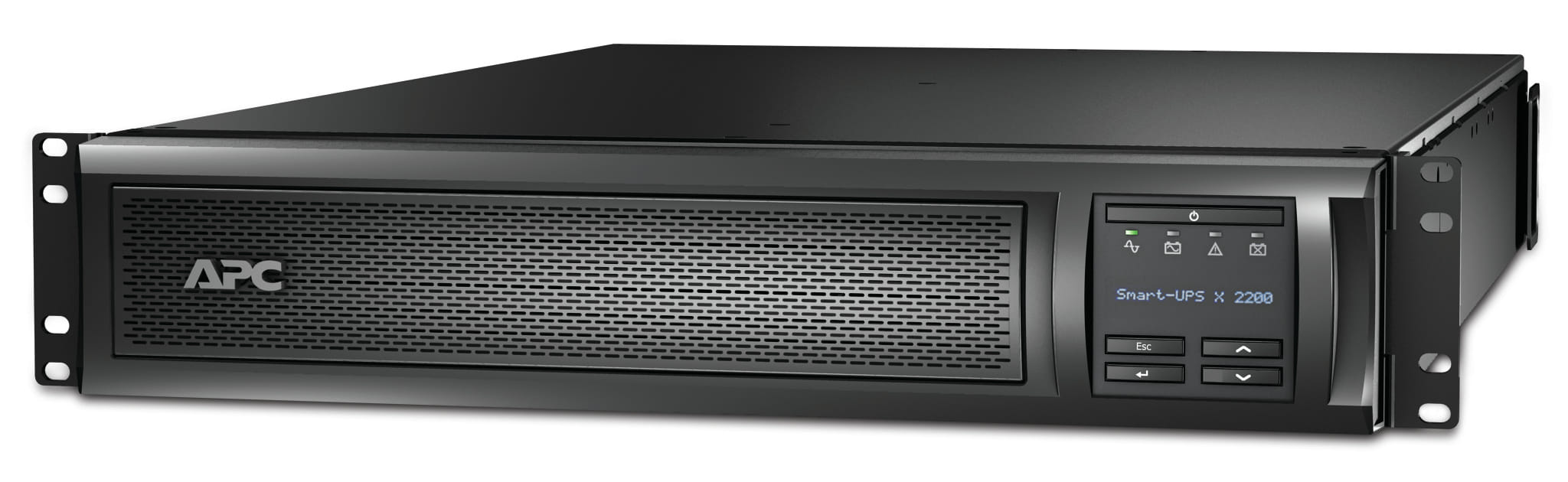

APC Smart-UPS X Line Interactive 2200VA Rack/Tower 2U
Item No:
806075
MPN:
SMX2200R2HVNC
$5,525.00
Payment options
Shipping Information
- ETA 29/09/2026 for shipping
- Pre-order available, shipping ETA 29/09/2026
Store Availability
- ETA 29/09/2026 at Bankstown Store
- ETA 29/09/2026 at Castle Hill Store
- ETA 29/09/2026 at Northmead Store
Shipping Estimate
APC Smart-UPS X 2200VA, Line-Interactive, 2.2 kVA, 1980 W, Sine, 208 V, 230 V
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 2.2 kVA |
| Output power The power that the device can produce. | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 208 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 230 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 208 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | +/- 3 Hz |
| Output voltage regulation | 5% |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 645 J |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 10 ms |
| Emergency Power Off (EPO) |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 55 dB |
| Surge protection |
|
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Web-based management Using a website/web application to manage something. |
|
| Audible alarm modes | Battery replacement |
| Auto-restart |
|
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler, C20 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 9 AC outlet(s) |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 702 Ah |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 3 h |
| Hot-swap battery |
|
| Automatic battery test |
|
| Cold start |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 2U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432 mm |
| Depth The distance from the front to the back of something. | 667 mm |
| Height The measurement of the product from head to foot or from base to top. | 85 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 37.4 kg |
| Package width The distance from one side of the packaging to the other. | 596 mm |
| Package depth The distance from the front to the back of the packaging. | 869 mm |
| Package height The distance from the top to the bottom of the packaging. | 243 mm |
| Package weight Weight of the packaged product. | 45.3 kg |
| Packaging data | |
| Rack mount kit |
|
| Cables included | Input power cable, USB cable |
| Quick installation guide |
|
| Resource CD |
|
| Logistics data | |
| Products per pallet Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet. | 8 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output voltage | 230 V |
| SKU | 806075 |
| MPN | SMX2200R2HVNC |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.apc.com/ |
