APC Smart-UPS Ultra On-Line 4U Rack/Tower 230V
Item No:
816305
MPN:
SRTL8KRM4UI
$24,100.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

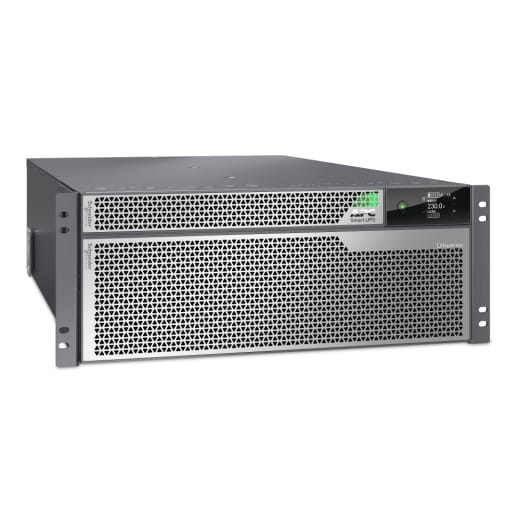

APC Smart-UPS Ultra On-Line Lithium ion, 8KVA/8KW, 4U Rack/Tower, 230V
APC Smart-UPS Ultra On-Line Lithium ion, 8KVA/8KW, 4U Rack/Tower, 230V
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 8 kVA |
| Output power The power that the device can produce. | 8000 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 220 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 1410 J |
| Heat dissipation The heat generated by the power supply. | 1900 BTU/h |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) |
 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 55 dB |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | Hard Wire 3-wire (1P + N + E), C13 coupler, C19 coupler, Hardwire |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | Hardwire |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 12 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| SmartSlot |
|
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery voltage The voltage (V) of the battery. | 180 V |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 7 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 15 min |
| Battery life (max) | 10 year(s) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 1.5 h |
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 4U |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Compliance certificates | CE, REACH, RoHS, UKCA, VDE |
| Certification | EN/IEC 62040-1 IEC 62040-2 |
| Packaging content | |
| Cables included | USB cable |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | Green Premium |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432 mm |
| Depth The distance from the front to the back of something. | 832 mm |
| Height The measurement of the product from head to foot or from base to top. | 175 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 55 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 650 mm |
| Package depth The distance from the front to the back of the packaging. | 1000 mm |
| Package height The distance from the top to the bottom of the packaging. | 630 mm |
| Package weight Weight of the packaged product. | 88.5 kg |
| SKU | 816305 |
| MPN | SRTL8KRM4UI |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
