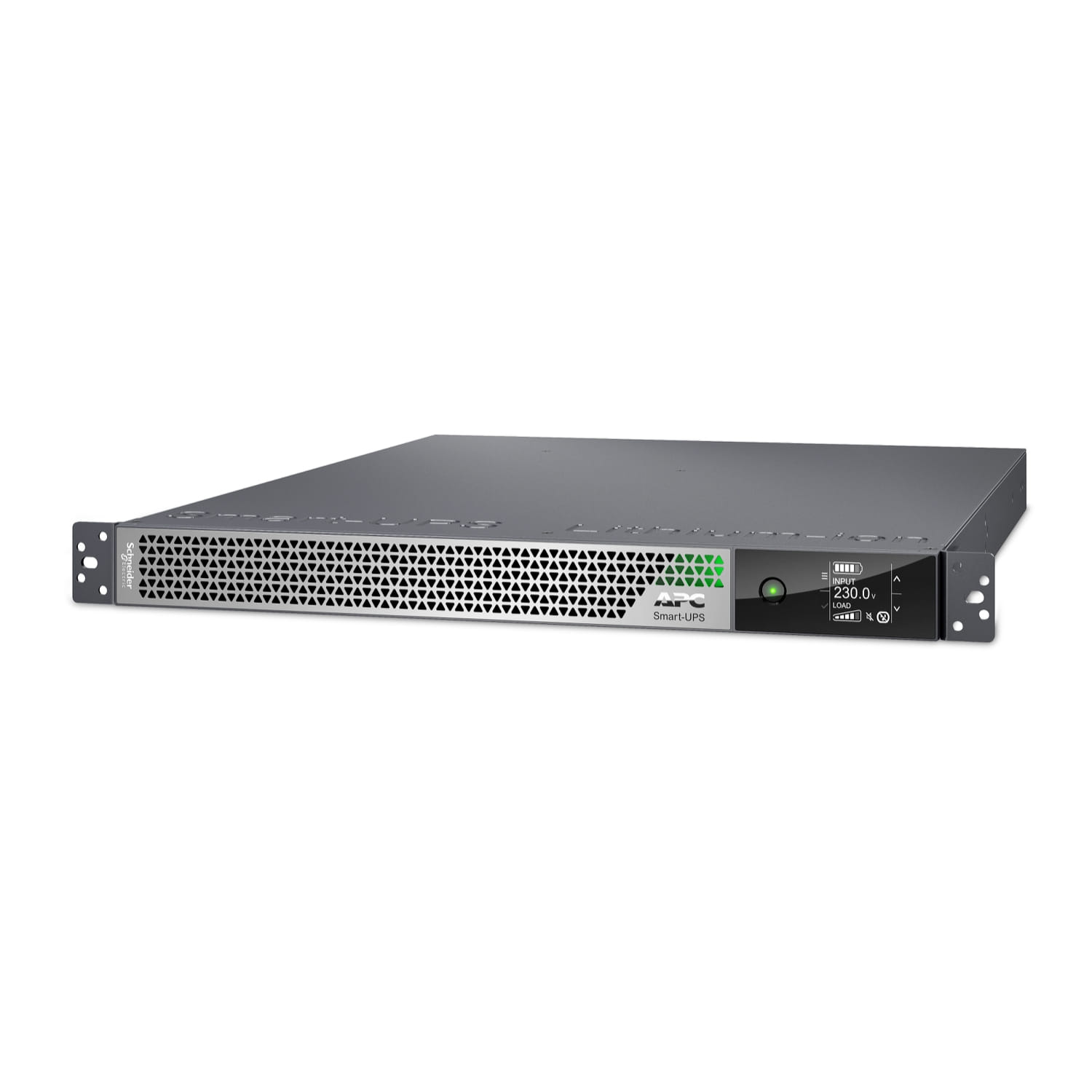

APC Smart-UPS Ultra 2200VA/230V 1U Double-Conversion With SmartConnect
Item No:
757463
MPN:
SRTL2K2RM1UIC
$6,931.82
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
APC SRTL2K2RM1UIC, Double-conversion (Online), 2.2 kVA, 2200 W, Sine, 160 V, 275 V
Ultra-high power density, On-Line power protection with Lithium-ion batteries and scalable runtime options
Includes: RJ45 cable
Includes: RJ45 cable
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 2.2 kVA |
| Output power The power that the device can produce. | 2200 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 160 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 275 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Emergency Power Off (EPO) |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 55 dB |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | Type F |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 5 AC outlet(s) |
| Serial interface |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Emergency Power Off (EPO) connector |
|
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery voltage The voltage (V) of the battery. | 50 V |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 1.5 h |
| Hot-swap battery |
|
| Automatic battery test |
|
| Cold start |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount |
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Control type The way in which the device is controlled. | Touch |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Certification | EN/IEC 62040-1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432 mm |
| Depth The distance from the front to the back of something. | 560 mm |
| Height The measurement of the product from head to foot or from base to top. | 43 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15.9 kg |
| Package width The distance from one side of the packaging to the other. | 564 mm |
| Package depth The distance from the front to the back of the packaging. | 764 mm |
| Package height The distance from the top to the bottom of the packaging. | 278 mm |
| Package weight Weight of the packaged product. | 24.2 kg |
| Packaging data | |
| Cables included | RJ-45 |
| SKU | 757463 |
| MPN | SRTL2K2RM1UIC |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
