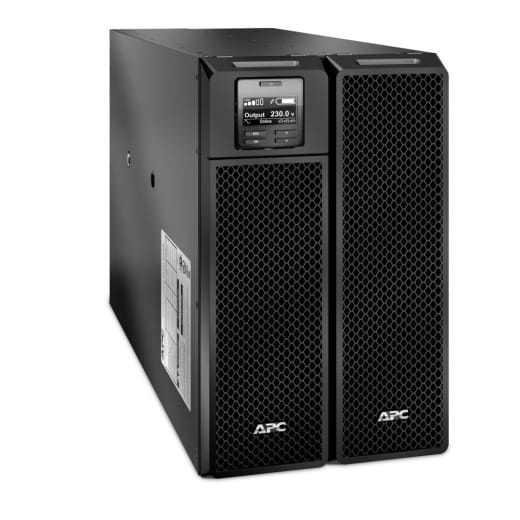

APC Smart-UPS On-Line 10kVA/10kW Rackmount 6U
Item No:
807115
MPN:
SRT10RMXLIX806
$16,900.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
APC SRT10RMXLIX806, Basic, Three-phase, Vertical, Black, LCD, 10 AC outlet(s)
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Type Characteristics of the device. | Three-phase |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| On/off switch The button which is pressed to switch the device on or off. |
 |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 10 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C14 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| USB ports quantity | 1 |
| Features | |
| LED indicators | Power, Status |
| Surge protection |
|
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230, 400 3PH |
| AC input frequency | 40-70 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 47 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Output voltage | 220/230/240 V |
| Maximum input current per phase | 54 A |
| Maximum total current draw per phase | 18 A |
| Maximum power The maximum power that can be put into or produced by the device. | 10000 W |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 480 J |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432 mm |
| Depth The distance from the front to the back of something. | 715 mm |
| Height The measurement of the product from head to foot or from base to top. | 263 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 111.8 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 130 kg |
| Package width The distance from one side of the packaging to the other. | 600 mm |
| Package depth The distance from the front to the back of the packaging. | 1000 mm |
| Package height The distance from the top to the bottom of the packaging. | 461 mm |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Cables included | USB |
| Manual |
|
| Rack mount kit |
|
| Packaging content | CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card |
| Operational conditions | |
| Operating temperature (T-T) | 32 - 104 °F |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Compliance certificates | RoHS |
| SKU | 807115 |
| MPN | SRT10RMXLIX806 |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.apc.com/ |
