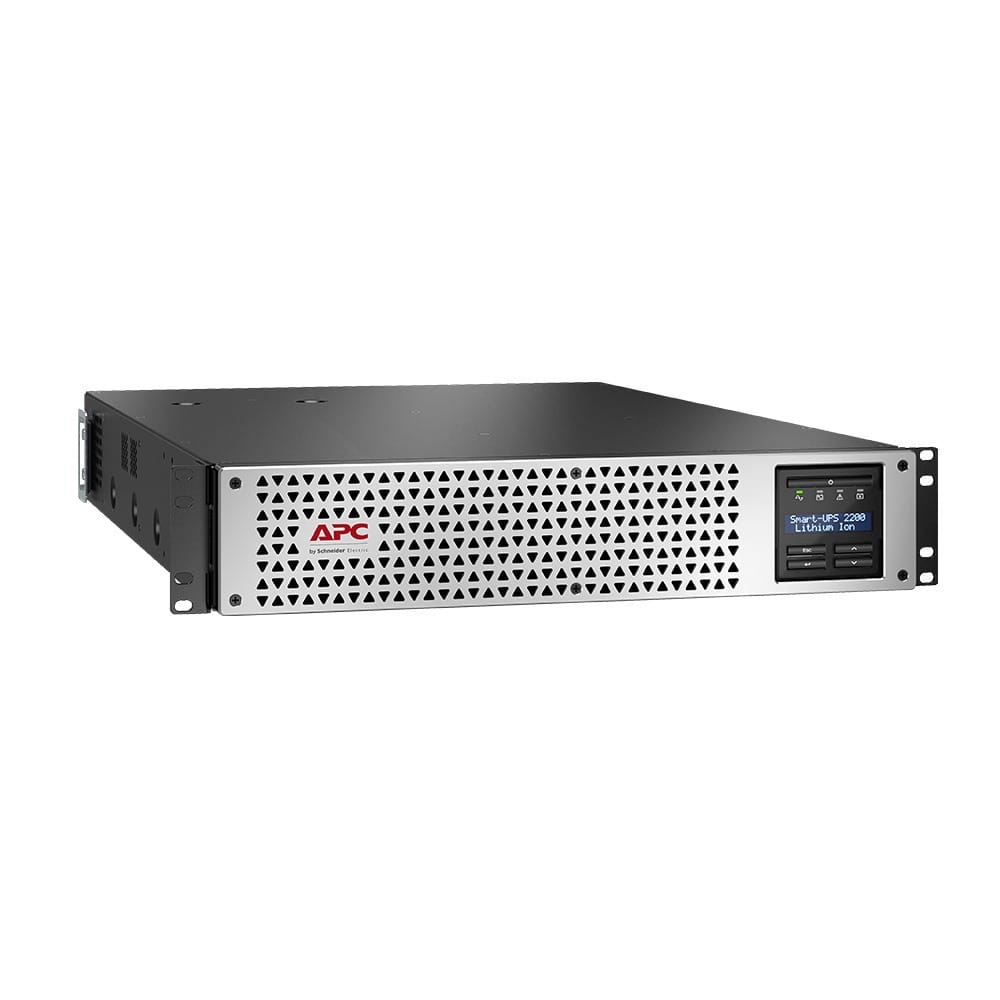

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 2.2 kVA |
| Output power The power that the device can produce. | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 151 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 302 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) |
 |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 375 J |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 6 ms |
| Heat dissipation The heat generated by the power supply. | 215 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 55 dB |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Auto-restart |
|
| Power source type What the power source is. | AC |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 10 AC outlet(s) |
| Number of output IEC jumpers | 3 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Serial interface |
|
| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| SmartSlot |
|
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery life (max) | 5 year(s) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 3 h |
| Hot-swap battery |
|
| Automatic battery test |
|
| Cold start |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 2U |
| Cable length How long the cable is. | 2 m |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Compliance certificates | CE, GS mark, RoHS, VDE |
| Certification | IRAM, RCM |
| Packaging content | |
| Rack mount kit |
|
| Cables included | USB cable |
| Sustainability | |
| Sustainability compliance |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432 mm |
| Depth The distance from the front to the back of something. | 683 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 42.3 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 980 mm |
| Package depth The distance from the front to the back of the packaging. | 600 mm |
| Package height The distance from the top to the bottom of the packaging. | 254 mm |
| Package weight Weight of the packaged product. | 49.7 kg |
| Other features | |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| SKU | 775697 |
| MPN | SMTL2200RMI2UC |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
