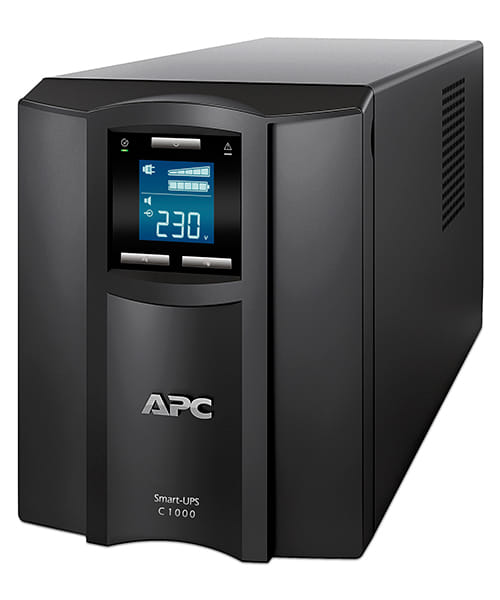

APC Smart-UPS, Line-Interactive, 1 kVA, 600 W, Sine, 170 V, 300 V
APC Smart-UPS,600 Watts /1000 VA,Input 230V /Output 230V, Interface Port USB
Includes: CD with software, USB cable, User Manual
Includes: CD with software, USB cable, User Manual
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 1 kVA |
| Output power The power that the device can produce. | 600 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 170 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) |
 |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 455 J |
| Efficiency | 98.3% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 41 dB |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Auto-restart |
|
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 8 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity | 170 VAh |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 6 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 16.3 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 3 h |
| Hot-swap battery |
|
| Automatic battery test |
|
| Cold start |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators | Status |
| Certification | CE, CSA, GOST, UL 1778, VDE, REACH, VDE-GS, EAC, C-Tick, IRAM, SABS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS, ENERGY STAR |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 171 mm |
| Depth The distance from the front to the back of something. | 439 mm |
| Height The measurement of the product from head to foot or from base to top. | 219 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 17.3 kg |
| Package width The distance from one side of the packaging to the other. | 328 mm |
| Package depth The distance from the front to the back of the packaging. | 595 mm |
| Package height The distance from the top to the bottom of the packaging. | 376 mm |
| Package weight Weight of the packaged product. | 19.6 kg |
| Packaging data | |
| Cables included | USB cable |
| Quick installation guide |
|
| Software CD |
|
| Logistics data | |
| Products per pallet Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet. | 18 pc(s) |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| SKU | 766430 |
| MPN | SMC1000I |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.apc.com/ |
