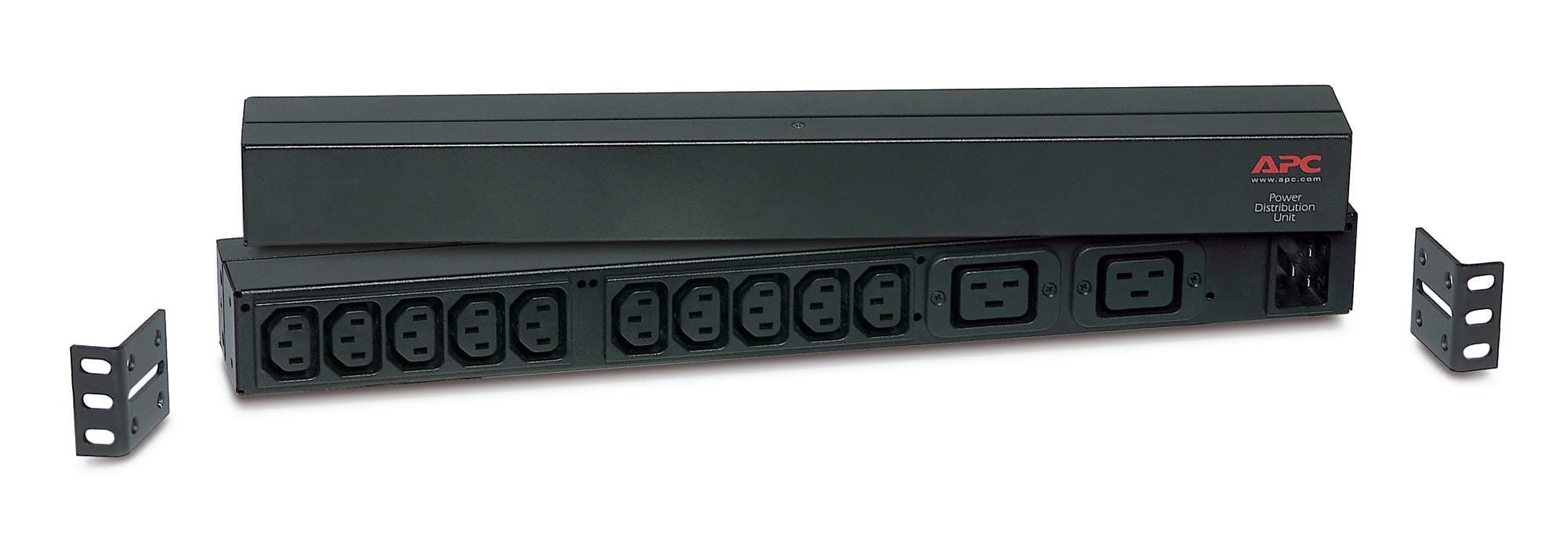

APC RACK PDU BASIC 1 U 16A 230V; PDU types: Basic, Rack capacity: 0U/1U, Mounting: Horizontal/Vertical; AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler,C19 coupler, Power plug: C20 coupler; Cable length: 2.5 m; Load capacity: 3680 VA, Maximum input current per phase: 16 A, Maximum power: 3680 W; Dimensions (WxDxH): 447 x 57.2 x 44.5 mm, Weight: 980 g
Description:
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
Output Voltage(s) (main only) - 120, 208, 230 V
Maximum Total Current Draw per Phase - 16 A
Output Connections - (10)IEC 320 C13; (2)IEC 320 C19
Always on Outlets - 12
Overload Protection
Input:
Nominal input voltage - 120, 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C20
Cord Length 8.2 feet ( 2.5 meters )
Acceptable Input Voltage - 90-250 VAC
Maximum Line Current per phase - 16.0 A
Maximum Input Current per phase - 16.0 A
Load Capacity - 3680
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Rack capacity The spase that device fill in rack. | 0U/1U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 12 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlet types The type of outlet for AC electricity. | C13 coupler,C19 coupler |
| I/O ports An interface on a device to which you can connect another device. | Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20 |
| Features | |
| Cable length How long the cable is. | 2.5 m |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 120 - 230 |
| Output voltage | 120, 208, 230 |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power The maximum power that can be put into or produced by the device. | 3680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 447 x 57.2 x 44.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 980 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| SKU | 413987 |
| MPN | AP9559 |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
